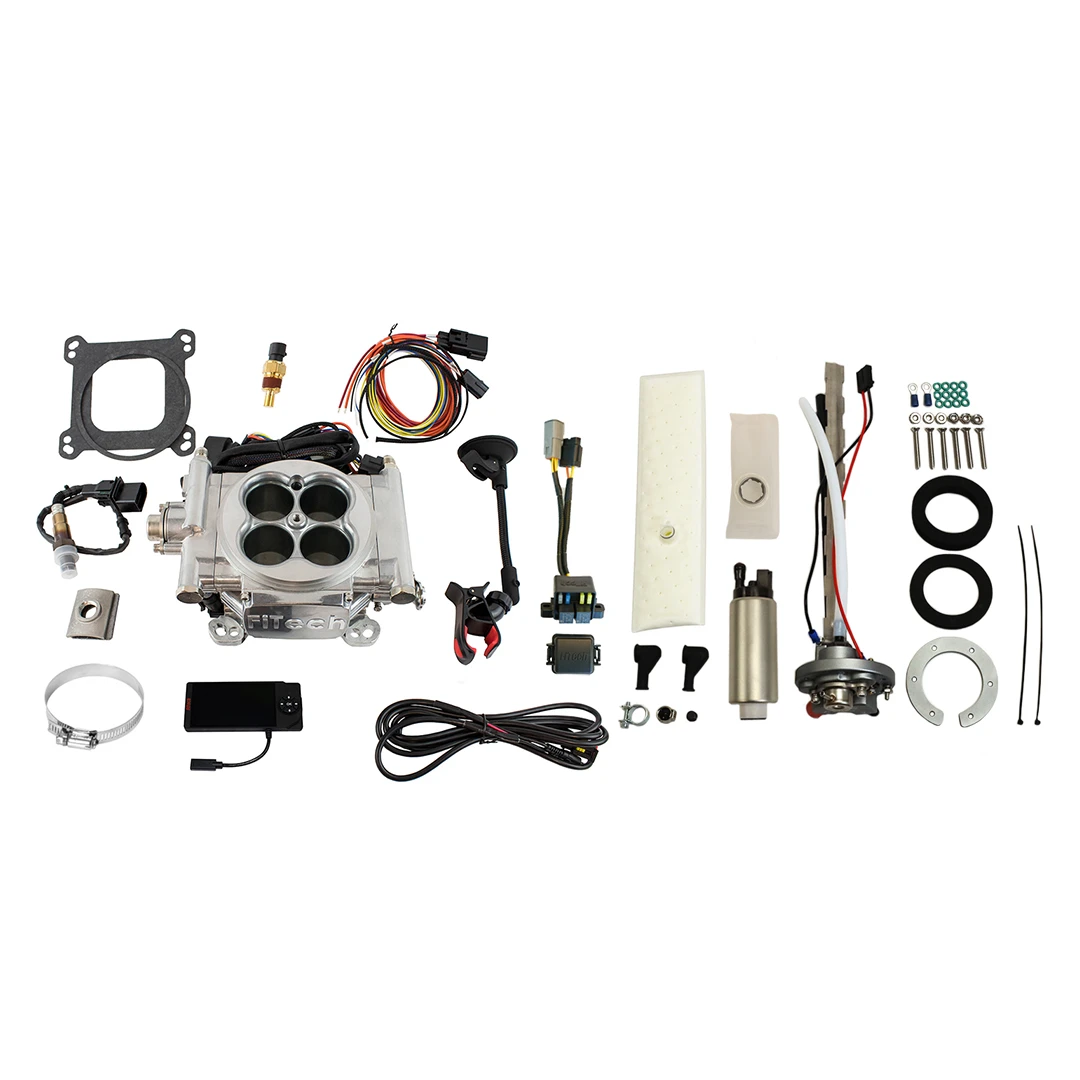

FiTech EFI 4 600 HP Bright Aluminum w/ 340 LPH In-Tank Pump (36601)
The FiTech EFI 4 600 HP Bright Aluminum w/ 340 LPH In-Tank Pump (36601) provides a complete electronic fuel injection (EFI) solution for engines up to 600 horsepower. This kit allows for the replacement of a traditional carburetor with a modern, self-tuning EFI system, enhancing engine performance and drivability. The system includes a 4-barrel throttle body, ECU, fuel pump, and all necessary components for a comprehensive upgrade.
KEY FEATURES AND BENEFITS:
850 CFM Throttle Body: Ensures adequate airflow for high-performance engines.
80 lbs/hr Injectors: Delivers sufficient fuel supply for enhanced performance.
User-Friendly Touchscreen Controller: The 4.5-inch handheld controller allows for easy monitoring and adjustments.
Timing Control Compatibility: Enhances engine management for improved performance.
Maximum Horsepower: 600 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
ECU Included: Yes
Fuel Pump Included: Yes (In-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: 4-barrel square bore
Airflow Rate: 850 CFM
Injector Size: 80 lbs/hr
Fuel Compatibility: Gasoline, Alcohol, Methanol, Flex
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Fuel System Installation: Install the in-tank fuel pump module and run the necessary fuel lines.
Throttle Body Installation: Mount the FiTech throttle body onto the intake manifold.
Wiring: Connect the wiring harness to the ECU, sensors (O2, MAP, IAT, TPS), and power supply.
Sensor Installation: Install the oxygen sensor in the exhaust system and connect the coolant sensor.
ECU Setup: Connect the handheld controller to the ECU and follow the on-screen instructions for initial setup.
Fine-Tuning (Optional): Use the handheld controller to make any necessary adjustments.
BENEFITS OF USING THE FITEC EFI 4 600 HP BRIGHT ALUMINUM W/ 340 LPH IN-TANK PUMP (36601):
Improved Fuel Efficiency: More efficient than traditional carbureted systems.
Enhanced Engine Performance: Offers better throttle response and overall performance.
Simplified Tuning: Self-learning capabilities make tuning easy and efficient.
Reliable Cold Start and Idle Performance: Provides consistent performance in various conditions.
Modernized Engine Management: Upgrades your engine's management capabilities.
Integrated ECU: Includes a MAP sensor and fuel pressure regulator.
4.5-Inch Touchscreen Controller: For monitoring and adjustments.
Wideband Oxygen Sensor: Provides accurate air/fuel ratio feedback.
Compatible with Multiple Fuel Types: Flexibility in fuel options.
Cast Aluminum Polished Throttle Body: Durable and aesthetically pleasing.
Wiring Harness Included: Facilitates easy installation.
Product identification
- Brand: FiTech
- Model / MPN: 36601
