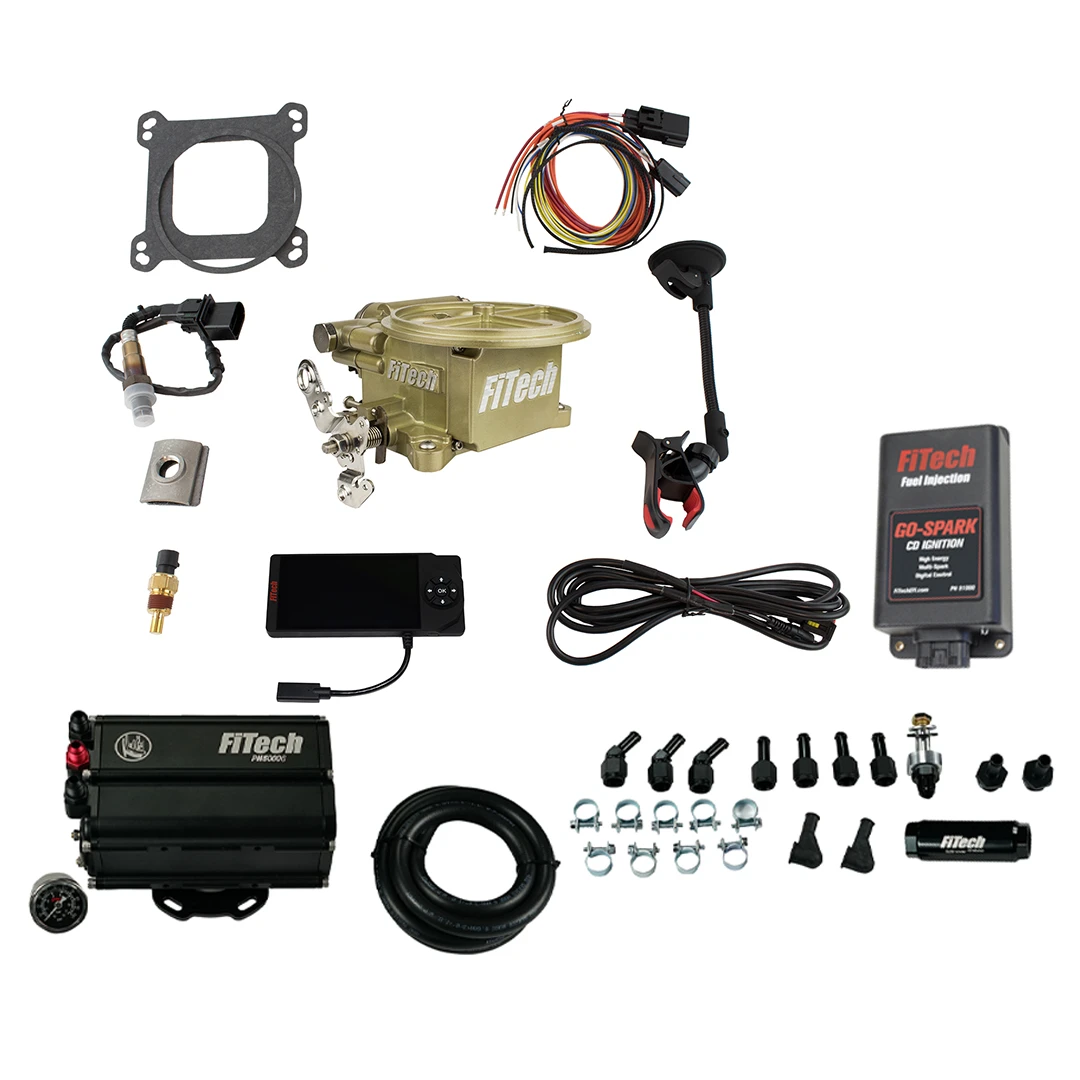

FiTech EFI 2 Barrel 400 HP Classic Gold w/Force Fuel & CDI Box (93559)
KEY FEATURES AND BENEFITS:
Eliminates Carburetor Issues: Addresses common problems like cold starts, hesitation, vapor lock, and flooding.
Self-Learning ECU: Simplifies tuning with minimal user input for optimal performance.
Enhanced Ignition: The Go Spark CDI box improves combustion efficiency.
Straightforward Installation: Designed for easy setup, suitable for both weekend cruisers and performance vehicles.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Timing Control: Compatible
Fuel Pump: Included
Transmission Controller: Not included
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: Holley 2-barrel (2300)
Venturi Quantity: 2
Injector Size: 62 lbs/hr
Fuel Pump Flow Rate: 255 LPH (Force Fuel Mini)
Fuel Type: Gasoline, Alcohol, Methanol
Preparation: Disconnect the battery and remove the existing 2-barrel carburetor system.
Installation of Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
Fuel System Setup: Install the Force Fuel Mini system, connecting the low-pressure fuel supply and high-pressure output.
Ignition Setup: Mount the Go Spark CDI box and connect it to the distributor and power source.
Wiring Connections: Connect the wiring harness to the fuel pump, ignition, power, and tach signals.
Sensor Installation: Install the wideband O2 sensor, coolant sensor, MAP sensor, IAT sensor, and TPS sensor.
ECU Setup: Use the handheld controller to input basic engine parameters and start the self-learning process.
Initial Start-up: Start the engine and allow the ECU to learn and adjust fuel and ignition settings.
Fine Tuning: Make adjustments using the handheld controller as needed for optimal performance.
BENEFITS OF USING THE FITECH EFI 2 BARREL 400 HP CLASSIC GOLD W/ FORCE FUEL & CDI BOX (93559):
Improved Engine Starting: Enhances engine reliability, especially in cold conditions.
Enhanced Fuel Efficiency: Offers better fuel economy and throttle response.
Smoother Idle: Provides overall improved engine operation.
Classic Appearance: Modern EFI technology maintains the look of a traditional carburetor.
Simplified Tuning: Self-learning capabilities reduce manual adjustments.
Gold Finished Throttle Body: Designed to fit 2300 flange for a premium look.
Incorporated ECU: Simplifies electrical hookup and integration.
Annular Wet Flow Technology: Ensures effective fuel distribution.
OEM Style Sensors: Designed for long-lasting service and reliability.
Force Fuel Mini: Includes an internal 255 LPH fuel pump and regulator.
Go Spark CDI Ignition System: Enhances spark output for better combustion.
Handheld Color Touch Screen: For easy adjustments and monitoring.
Wideband O2 Sensor: Provides real-time fuel tuning capabilities.
Internal Fuel Pressure Regulator: Manages fuel pressure effectively.
Multi-Fuel Capability: Can run on various fuel types including gasoline, alcohol, and methanol.
Product identification
- Brand: FiTech
- Model / MPN: 93559
