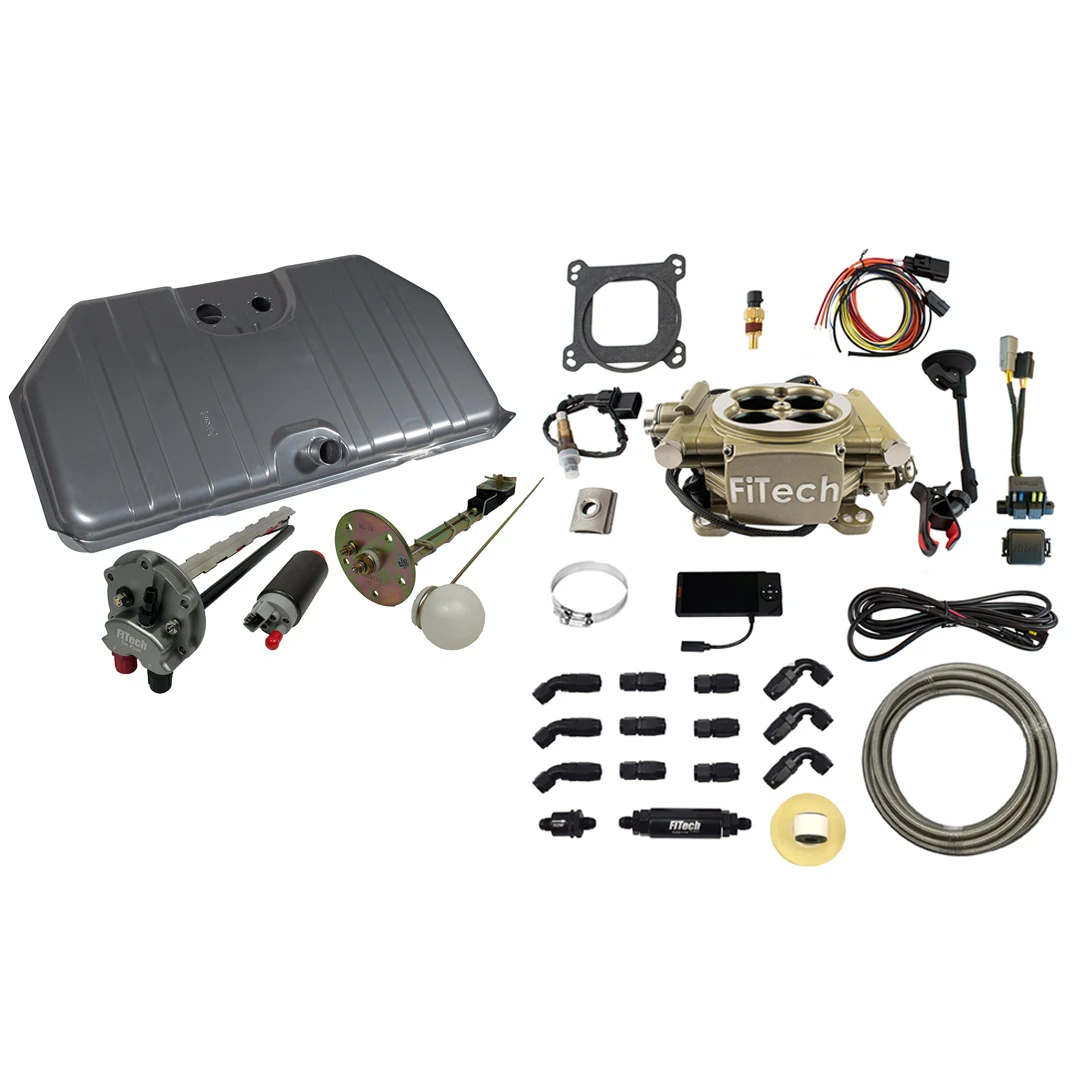

FiTech Easy Street 600HP Gold EFI w/Pump In-tank & Fuel Lines (38002)
KEY FEATURES AND BENEFITS:
Complete Package: Includes a 600 horsepower rated throttle body, in-tank 255 lph fuel pump, and a complete steel braided hose kit.
Self-Tuning ECU: Allows for easy setup and optimization.
Touchscreen Display: Provides user control for adjustments.
Improved Performance: Expect enhanced cold starting, consistent performance, and better fuel economy.
Compatibility: Designed for naturally aspirated engines and various engine types.
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower: 600 HP
Fuel Pump Flow Rating: 255 lph
ECU: Self-tuning, mounted on throttle body
Throttle Body: Cast aluminum, 44.45mm venturi diameter
Injectors: 80 lbs./hr
Sensors: Oxygen, MAP, IAT, TPS, IAC
Display: 4.5-inch touchscreen
Preparation: Disconnect the battery and remove the existing carburetor and fuel system components.
Fuel System Installation: Install the new fuel tank with the in-tank pump and connect the steel braided fuel lines.
Throttle Body Mounting: Mount the FiTech throttle body onto the intake manifold.
Sensor Connections: Connect all sensors (oxygen, MAP, IAT, TPS, IAC) to the wiring harness.
Wiring: Connect the wiring harness to the vehicle’s electrical system and the ECU.
Initial Setup: Use the touchscreen display to input basic engine parameters.
Startup and Self-Tuning: Start the engine; the ECU will automatically begin self-tuning.
Fine-Tuning: Use the touchscreen to adjust settings as needed for optimal performance.
BENEFITS OF USING THE FITECH EASY STREET 600HP GOLD EFI W/PUMP IN-TANK & FUEL LINES (38002):
Improved engine performance and throttle response.
Enhanced fuel efficiency and reduced fuel consumption.
Consistent and reliable engine operation.
Simplified cold starting and smoother idle.
User-friendly self-tuning capabilities.
Integrated ECU: Directly on the throttle body for streamlined installation.
Voltage Controlled Fuel Pump: Reduces heat for improved reliability.
Adjustable Fan Control: For cooling system management.
Built-in Pressure Regulator: Ensures consistent fuel pressure.
Wideband Oxygen Sensor: For accurate air-fuel ratio readings.
Ignition Timing Control: Via the touchscreen for enhanced performance.
Product identification
- Brand: FiTech
- Model / MPN: 38002
