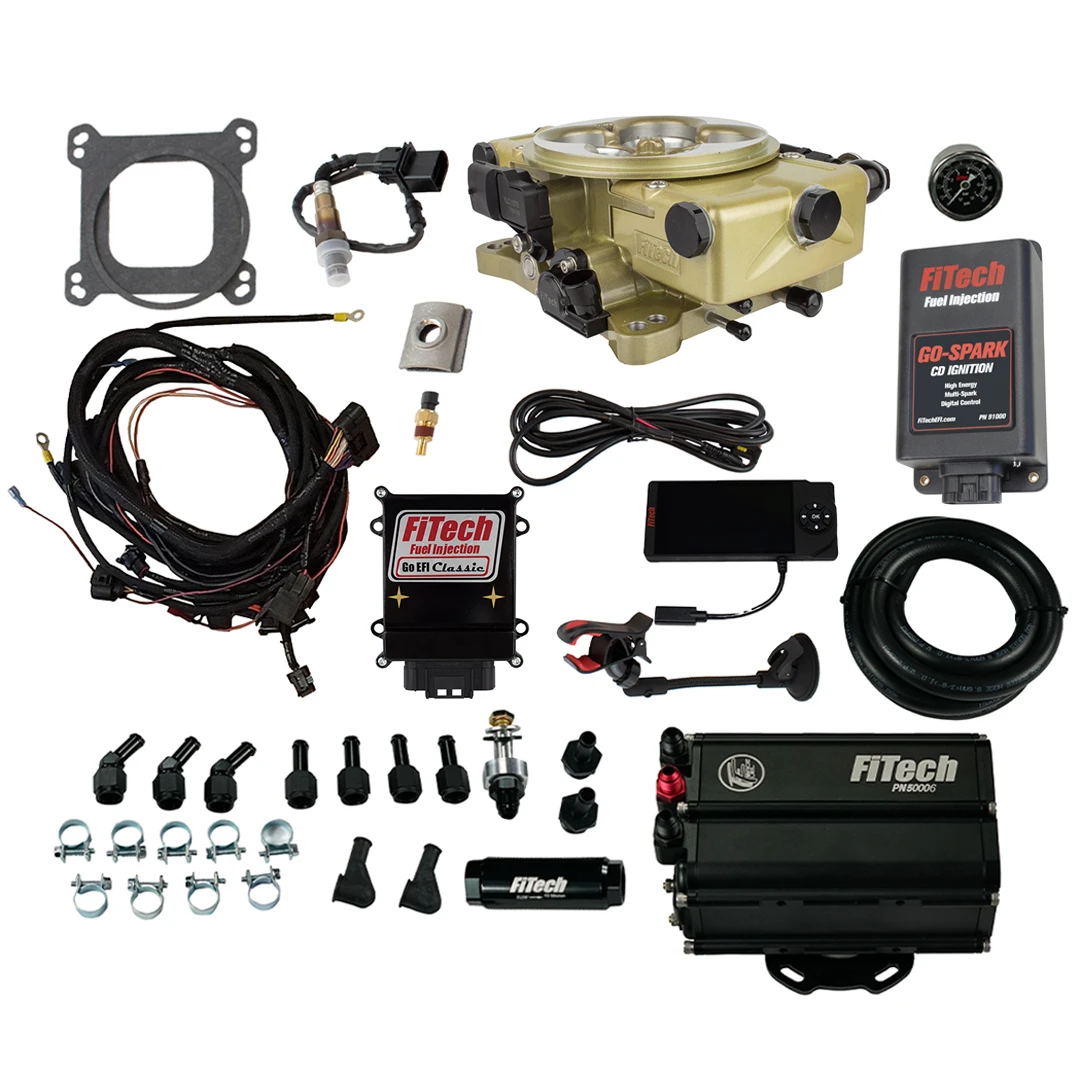

FiTech Classic Gold 650 HP EFI w/ Force Fuel Tank & CDI (93557)
KEY FEATURES AND BENEFITS:
The FiTech 93557 kit offers several key advantages. It converts your classic engine to EFI, eliminating common carburetor issues like flooding and vapor lock.
The Force Fuel Mini surge tank ensures a consistent fuel supply, preventing fuel starvation.
This kit supports engines up to 650 horsepower, delivering modern performance with a classic aesthetic.
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 4-Barrel Throttle Body (4150 Flange)
Maximum Horsepower with Gas: 650 HP
Self Tuning: Yes
User Tunable: Yes
Fuel System Included: Surge tank (Go Fuel Mini Force Fuel)
Ignition System Included: Ignition box (Go-Spark CDI)
User Interface: 4.5 in. display
Metering Style: Speed density
Throttle Body Mounting Flange: 4-barrel square bore
Venturi Quantity: 4
Venturi Diameter (mm): 44.00mm
Airflow Rate (cfm): 950 cfm
Injector Size (lbs/hr): 80 lbs./hr.
Remove the Existing Carburetor: Disconnect and remove the existing carburetor and associated components.
Install the Throttle Body: Mount the FiTech 4-barrel throttle body onto the intake manifold using the 4150 flange.
Mount the ECU: Secure the compact ECU in a suitable location, ensuring it is protected from heat and moisture.
Install the Fuel Surge Tank: Mount the Force Fuel Mini surge tank and connect the fuel lines according to the instructions.
Install the Go-Spark CDI Ignition: Connect the Go-Spark CDI box to the distributor and ignition system, following the wiring diagram.
Connect the Sensors: Install and connect the oxygen sensor, MAP sensor, IAT sensor, TPS sensor, and IAC motor.
Connect the Wiring Harness: Connect the provided wiring harness to the throttle body, sensors, and ignition system.
Initial Setup: Use the 4.5-inch display to perform the initial setup and configuration.
BENEFITS OF USING THE FITECH CLASSIC GOLD 650 HP EFI W/ FORCE FUEL TANK & CDI (93557):
Improved engine performance and horsepower.
Enhanced fuel efficiency.
Elimination of carburetor-related issues.
Smoother idle and throttle response.
Modern performance with a classic aesthetic.
Simplified installation and self-tuning capabilities.
4-barrel throttle body design, 950 cfm flow.
80 lbs/hr fuel injectors.
Force Fuel Mini surge tank with 255 lph pump.
4.5-inch display for user interface and monitoring.
Self-tuning ECU for automatic fuel adjustments.
Compatible with various distributor types.
Complete wiring harness and sensor package.
Gold colored throttle body for a classic look.
Product identification
- Brand: FiTech
- Model / MPN: 93557
