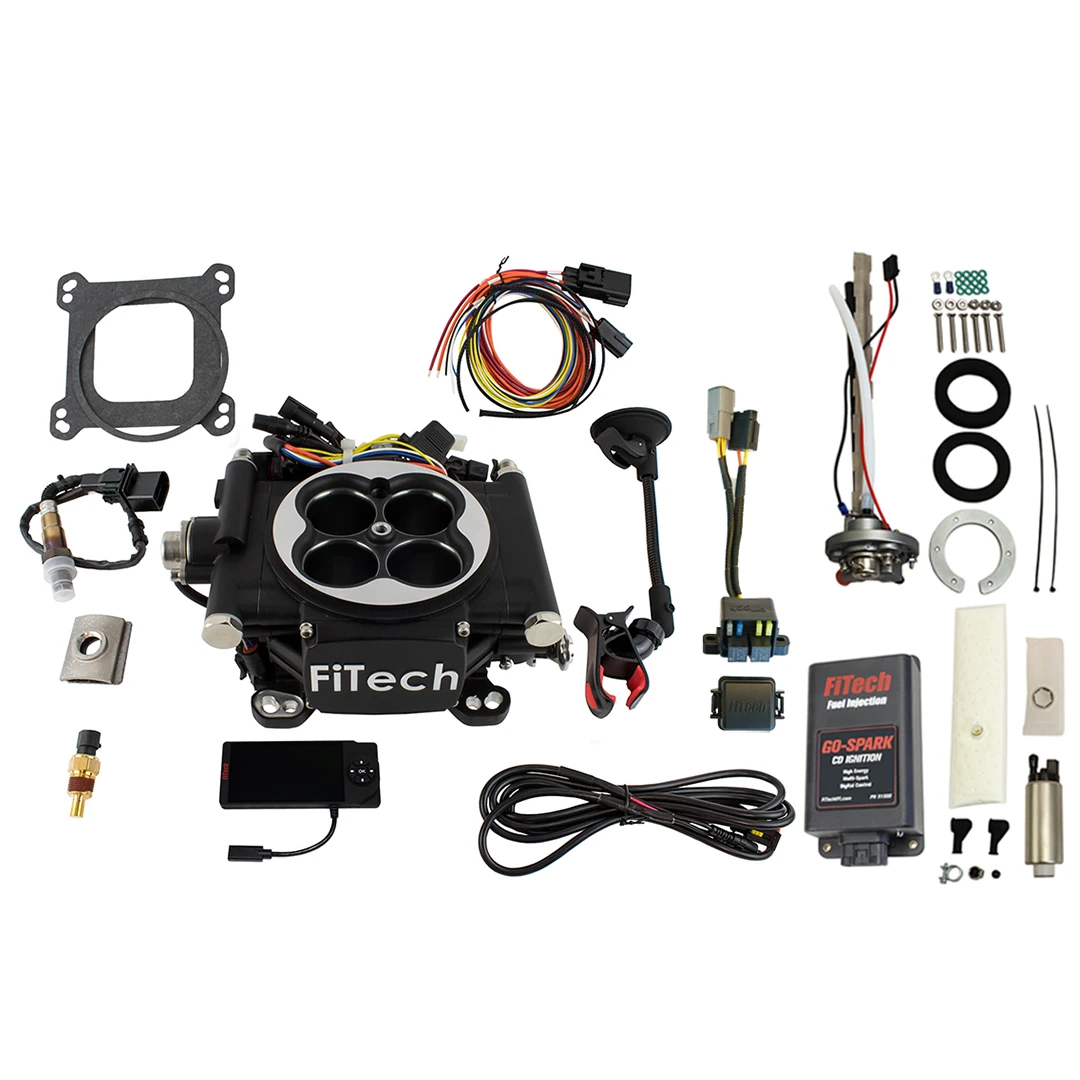

FiTech 600HP Matte Black EFI w/ 340 LPH Pump & CDI Box (96202)
KEY FEATURES AND BENEFITS:
The FiTech 96202 kit includes a 4-barrel throttle body EFI system designed for easy installation and tuning.
The included Go-Spark CDI ignition provides a high-energy spark for improved combustion.
The 4.5-inch touchscreen handheld controller allows for user tuning and monitoring.
This kit provides a complete solution for those looking to upgrade their carbureted engine to modern EFI technology.
Fuel Injection Style: Throttle body
Maximum Horsepower: 600
Throttle Body: 4-barrel square bore, 850 cfm
Injectors: 80 lbs./hr
Ignition: Go-Spark CDI
Tuning: Self-learning and user-tunable
Display: 4.5-inch touchscreen
Venturi Diameter: 44.00mm
Remove Existing Carburetor: Disconnect the fuel lines, linkages, and any other components connected to the carburetor.
Install Throttle Body: Mount the FiTech throttle body onto the 4-barrel intake manifold using the provided gasket.
Install Fuel System: Choose and install the appropriate fuel pump module (in-tank or in-line) and connect the fuel lines.
Install Ignition System: Connect the Go-Spark CDI ignition system to the distributor and other necessary components.
Connect Wiring Harness: Connect the wiring harness to the throttle body, sensors, and ignition system.
Install Sensors: Install the oxygen sensor, coolant sensor, and other provided sensors.
Connect Handheld Controller: Connect the 4.5-inch touchscreen handheld controller to the system.
Initial Setup: Follow the instructions on the handheld controller to perform the initial setup and configuration.
Fine-Tune (Optional): Use the handheld controller to fine-tune the system for optimal performance.
BENEFITS OF USING THE FITECH 600HP MATTE BLACK EFI W/ 340 LPH PUMP & CDI BOX (96202):
Improved engine performance and throttle response.
Enhanced fuel efficiency.
Easier starting and smoother idle.
Simplified tuning with self-learning capabilities.
Modernizes older engines.
Speed density metering.
Wide-band oxygen sensor included.
Capability to control electric fans.
Integrated ECU, MAP sensor, and fuel pressure regulator.
Compatible with various distributor types.
Includes 44mm venturi diameter throttle body.
80 lbs. per hour injectors.
Includes a 340 lph in-tank fuel pump option.
Product identification
- Brand: FiTech
- Model / MPN: 96202
