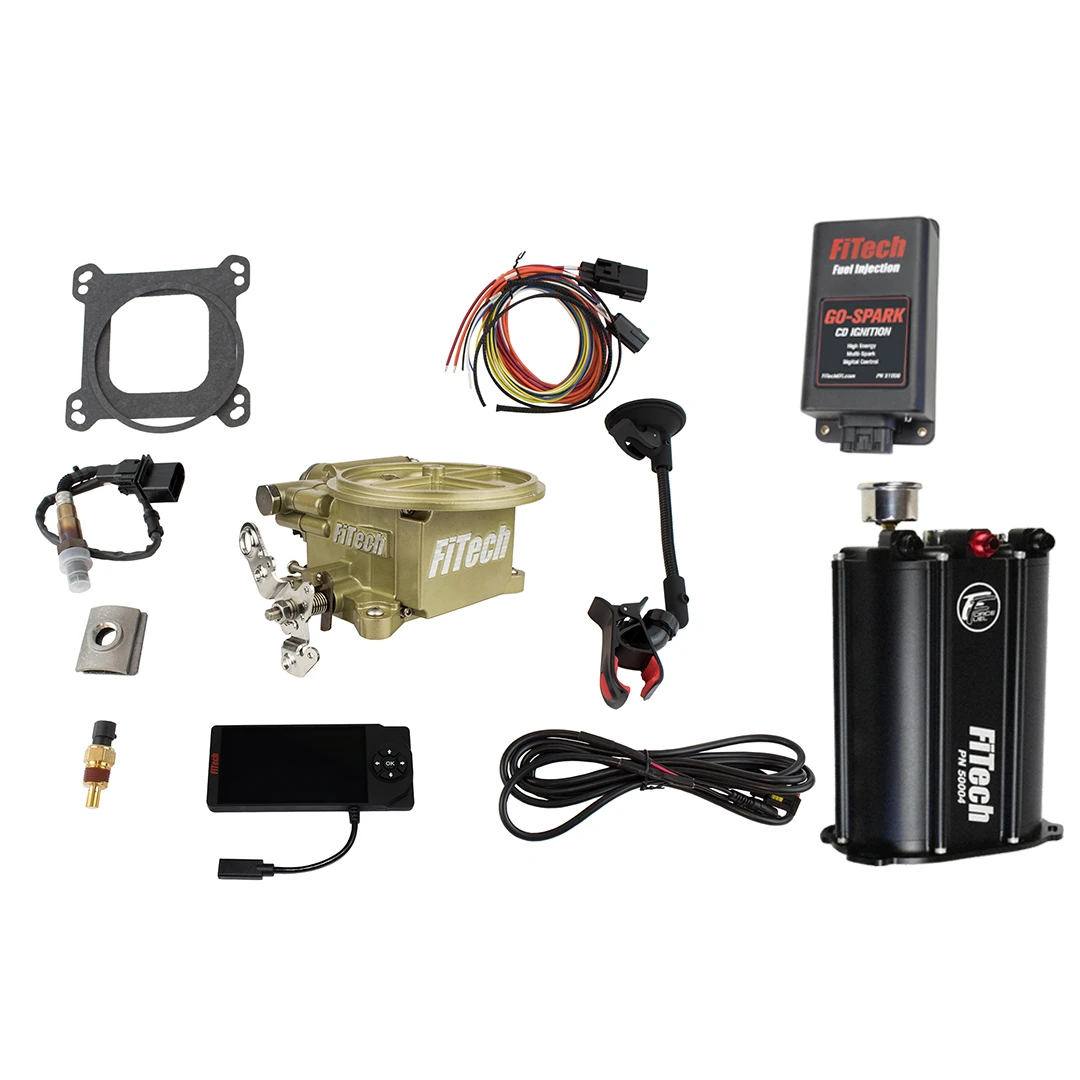

FiTech 2 Barrel EFI 400HP Classic Gold w/Force Fuel & CDI Box (93500)
The FiTech 2 Barrel EFI 400HP Classic Gold w/ Force Fuel & CDI Box (93500) provides a complete solution for converting 2-barrel carbureted engines to electronic fuel injection (EFI). This kit improves fuel efficiency, drivability, and performance. Designed for engines using a Holley 2300 flange, it includes a throttle body with an integrated ECU, a Force Fuel system for consistent fuel pressure, and a Go-Spark CD ignition for enhanced spark performance.
KEY FEATURES AND BENEFITS:
400 Horsepower Rating: This master kit is rated for up to 400 horsepower and offers self-tuning capabilities with user-adjustable settings via a handheld controller.
Consistent Fuel Pressure: The Force Fuel system ensures consistent 58 psi fuel pressure with its 340 lph internal pump and surge tank, preventing fuel starvation.
Improved Spark Performance: The Go-Spark CD ignition enhances starting, idle quality, and throttle response.
Fuel Versatility: The system is compatible with various fuel types, including gasoline, alcohol, methanol, and flex fuel.
Fuel Injection Style: Throttle body
Fuel Injection System Type: Single 2-Barrel Throttle Body (2300 Flange)
Maximum Horsepower: 400 HP
Timing Control: Yes
Self-Tuning: Yes
User-Tunable: Yes
Fuel Pump Flow Rating: 340 lph
Injector Size: 62 lbs./hr
Throttle Body Airflow: 500 cfm
Fuel Pressure: 58 psi
Venturi Diameter: 43.00mm
Fuel Compatibility: Alcohol, Gasoline, Methanol, Flex
Preparation: Disconnect the battery and remove the existing 2-barrel carburetor.
Installation of Throttle Body: Mount the FiTech throttle body onto the intake manifold using the provided gasket.
Fuel System Setup: Install the Force Fuel system, connecting the existing fuel pump to the surge tank and the high-pressure output to the throttle body.
Wiring Connections: Connect the wiring harness to the throttle body, fuel pump, ignition system, and sensors (WBO2, coolant, MAP, IAT, TPS).
Ignition System Installation: Install the Go-Spark CD ignition box and connect it to the distributor.
Sensor Installation: Install the provided sensors (WBO2, coolant temp, etc.) into their appropriate locations.
Handheld Controller Setup: Connect the handheld controller to the system and follow the on-screen prompts for initial setup.
Initial Start-up: Reconnect the battery and start the engine. The system will begin self-tuning.
Fine-Tuning: Use the handheld controller to make any necessary adjustments to the fuel and ignition settings.
BENEFITS OF USING THE FITECH 2 BARREL EFI 400HP CLASSIC GOLD W/FORCE FUEL & CDI BOX (93500):
Improved Fuel Efficiency: Compared to carbureted systems.
Enhanced Drivability: Results in smoother idle and throttle response.
Increased Engine Performance: Boosts overall power output.
Simplified Installation: Features an integrated ECU and comprehensive kit.
Consistent Fuel Pressure: Provided by the Force Fuel system.
Enhanced Spark Performance: Thanks to the Go-Spark CD ignition.
Self-Tuning Capability: For easy setup and operation.
User Tuning: Allows for customized settings.
Multiple Fuel Type Compatibility: Supports various fuel options.
Integrated Electronic Control Unit: Within the throttle body.
Multiple Spark Discharge Capability: Below 2500 RPM.
4.5-Inch Handheld Controller: For system monitoring and tuning.
Wideband Oxygen Sensor: For real-time fuel mixture adjustments.
Internal Fuel Pressure Regulation: Maintains 58 psi.
Holley 2300 Flange Mounting: For direct 2-barrel replacement.
Speed Density (MAP-N) Metering Style: For accurate fuel management.
Product identification
- Brand: FiTech
- Model / MPN: 93500
