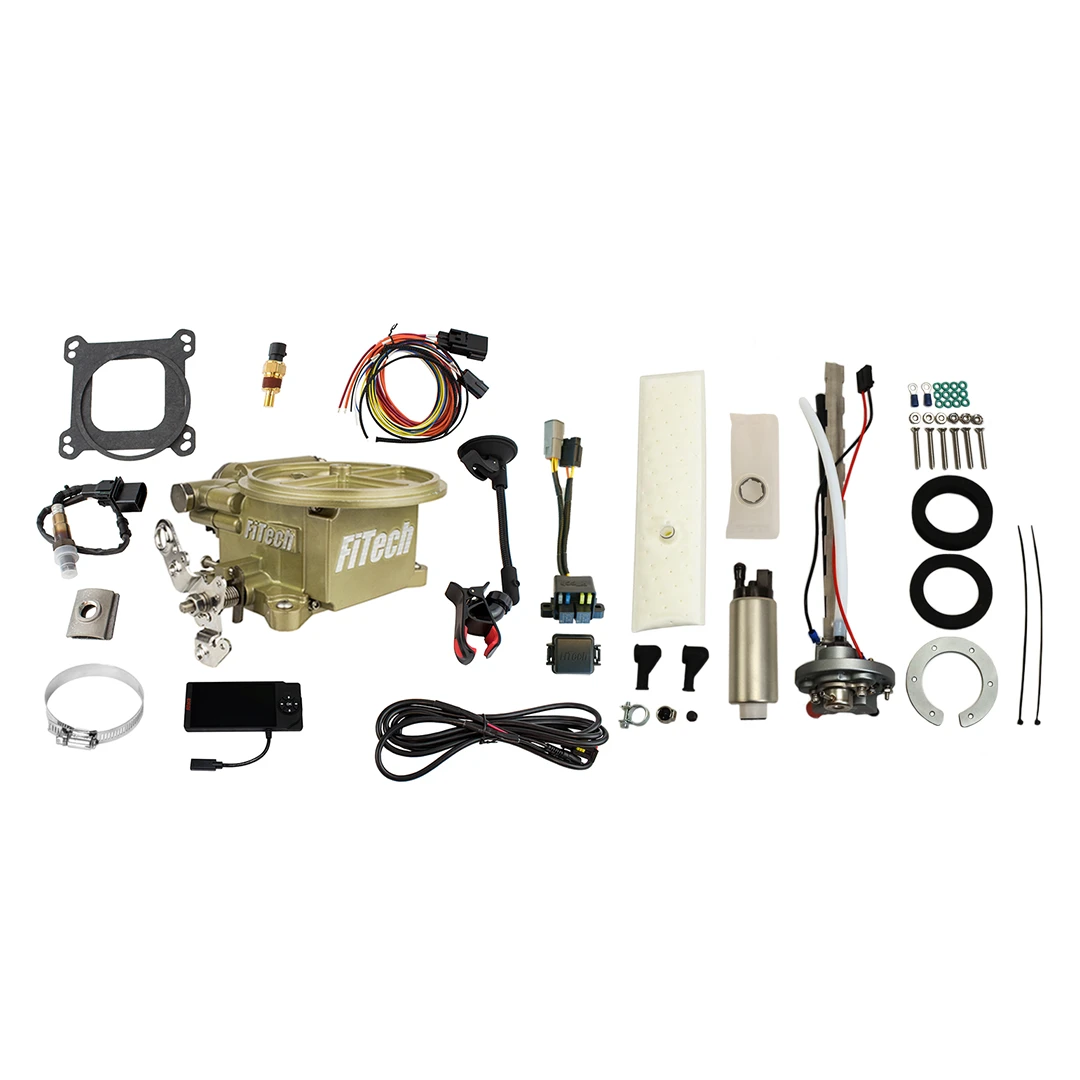

FiTech 2 Barrel 400HP Classic Gold EFI w/ 340 LPH In-Tank Pump (36691)
The FiTech 2 Barrel 400HP Classic Gold EFI w/ 340 LPH In-Tank Pump (36691) is a comprehensive electronic fuel injection conversion kit designed to replace traditional carbureted systems. It's engineered for 2-barrel applications, providing a straightforward upgrade to EFI for improved performance and efficiency. This kit is built for engines up to 400 horsepower and provides self-tuning capabilities.
KEY FEATURES AND BENEFITS:
Conversion to EFI: Converts 2-barrel carbureted engines to electronic fuel injection.
Self-Tuning ECU: Simplifies setup and optimizes performance automatically.
Power Rating: Rated for up to 400 horsepower with a 500 CFM throttle body.
Timing Control: Ignition timing control is included for enhanced performance.
Fuel Compatibility: Works with gasoline, alcohol, and methanol fuels.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
Power Adder Compatible: No
ECU Included: Yes
Fuel Pump Included: Yes (In-tank)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: Holley 2-barrel
Venturi Quantity: 2
Airflow Rate (CFM): 500 CFM
Injector Size: 62 lbs/hr
Fuel Type Compatibility: Alcohol, Gasoline, Methanol, Flex
Preparation: Disconnect the battery and remove the existing carburetor and related components.
Fuel System Installation: Install the in-tank fuel pump and connect the fuel lines according to the provided diagram.
Throttle Body Mounting: Mount the FiTech 2-barrel throttle body onto the intake manifold using the Holley 2-barrel flange.
Sensor Installation: Install the oxygen sensor, MAP sensor, IAT sensor, and TPS sensor in their designated locations.
Wiring Harness Connection: Connect the wiring harness to the ECU and all sensors, following the color-coded instructions.
ECU Setup: Mount the ECU and connect the handheld display.
Initial Setup: Power on the system and use the handheld display to input basic engine parameters.
Self-Tuning Process: Start the engine and allow the self-tuning feature to calibrate the fuel system.
Fine-Tuning (Optional): Use the handheld display to make any necessary adjustments.
BENEFITS OF USING THE FITEC 2 BARREL 400HP CLASSIC GOLD EFI W/ 340 LPH IN-TANK PUMP (36691):
Improved Fuel Efficiency: More efficient than traditional carbureted systems.
Enhanced Engine Performance: Better throttle response and overall performance.
Simplified Cold Starts: Provides smoother idle and easier starting.
Self-Tuning Capabilities: Reduces the need for manual adjustments.
Optimized Performance: Ignition timing control allows for fine-tuning engine performance.
Gold Finished Cast Aluminum Throttle Body: Durable and stylish design.
4.5-Inch Handheld Display: User-friendly interface for adjustments and monitoring.
Complete Sensor Suite: Includes oxygen, MAP, IAT, and TPS sensors.
Comprehensive Wiring Harness: Simplifies installation and connections.
62 lbs/hr Fuel Injectors: High-flow injectors for optimal performance.
500 CFM Airflow Capacity: Designed for efficient air management.
Designed for 2 Barrel Holley 2300 Flange: Ensures compatibility with existing setups.
Product identification
- Brand: FiTech
- Model / MPN: 36691
