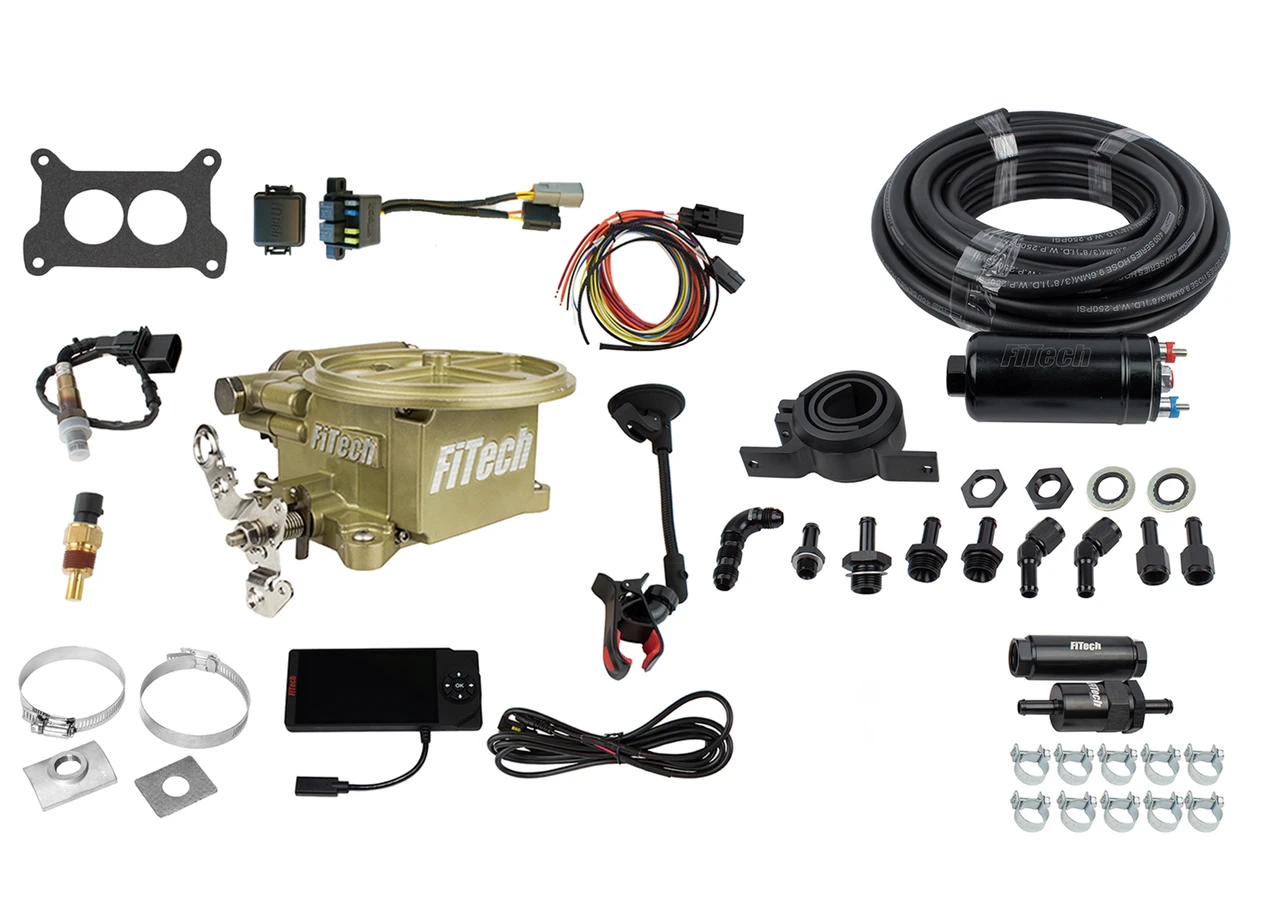

FiTech 2 Barrel 400 HP Classic Gold EFI w/Inline Fuel Delivery (31091)
KEY FEATURES AND BENEFITS:
The self-tuning feature simplifies setup and calibration, allowing for optimal engine performance.
This system is compatible with various fuel types, including gasoline, alcohol, methanol, and flex fuel.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Timing Control Compatible: Yes
ECU Included: Yes
Fuel Pump Included: Yes (Inline)
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: Holley 2-barrel (2300)
Venturi Quantity: 2
Venturi Diameter: 44mm
Airflow Rate: 500 CFM
Injector Size: 62 lbs/hr
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Preparation: Disconnect the battery and remove the existing 2-barrel carburetor.
Installation: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
Sensor Installation: Install the oxygen (O2), MAP, IAT, and TPS sensors as per the instructions.
Fuel System Setup: Mount the inline fuel pump and connect the fuel lines, ensuring proper filtration.
Wiring: Connect the wiring harness to the vehicle's electrical system, including power, ground, and ignition signals.
ECU Connection: Connect the handheld controller to the ECU and follow the on-screen prompts for initial setup.
Initial Tuning: Start the engine and allow the self-tuning feature to calibrate the system.
Fine Tuning: Use the handheld controller to make any necessary adjustments for optimal performance.
Improved fuel efficiency compared to a carburetor.
Enhanced engine performance and throttle response.
Simplified tuning with the self-tuning feature.
Modern EFI technology with classic aesthetics.
Easy to install for a DIY project.
Integrated ECU within the throttle body.
Handheld controller with 4.5-inch display.
Wideband oxygen (WBO2) sensor included.
External fuel pump with included filters.
Cast aluminum throttle body with gold finish.
Compatible with various fuel types.
Complete sensor package.
62 lbs/hr fuel injectors.
Product identification
- Brand: FiTech
- Model / MPN: 31091
