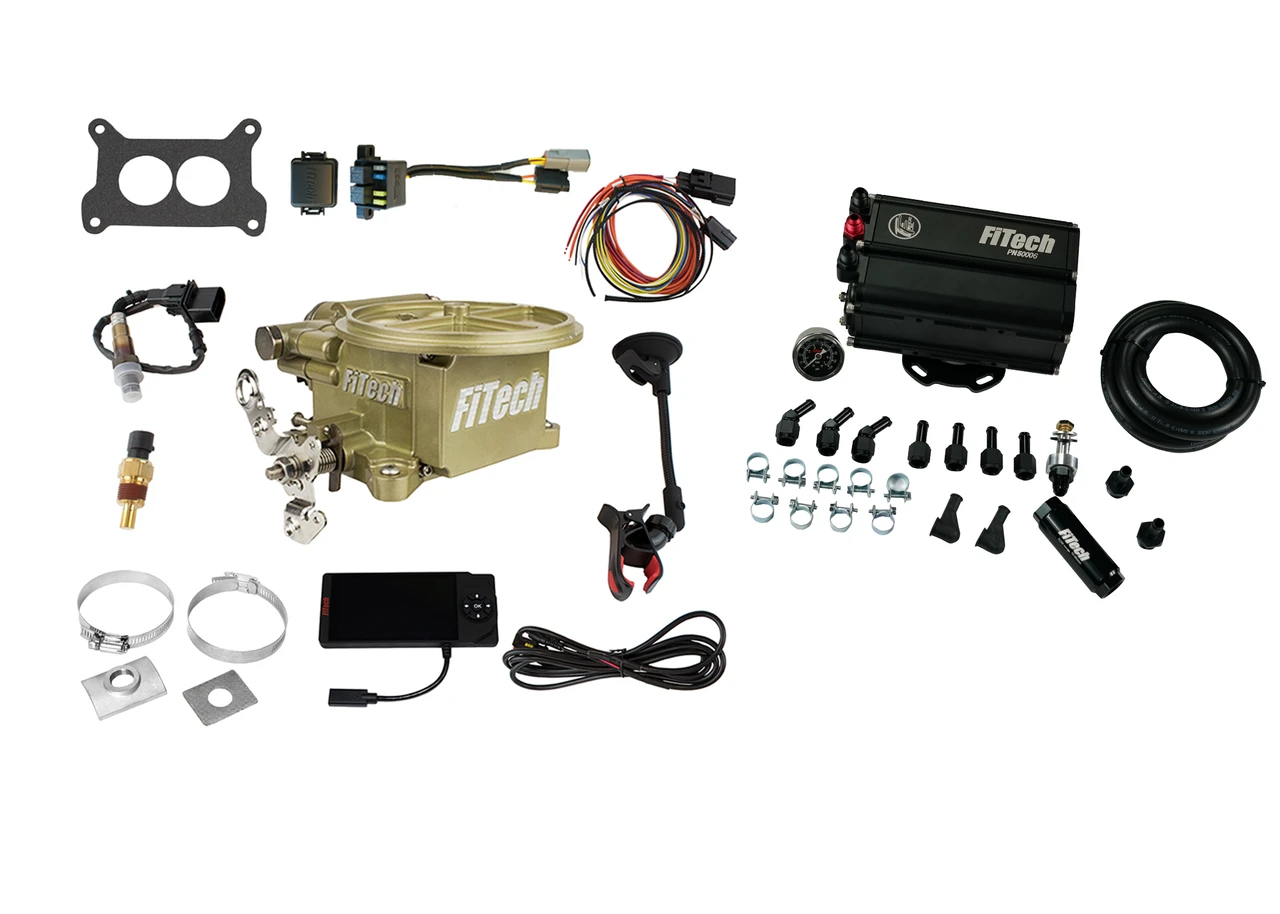

FiTech 2 Barrel 400 HP Classic Gold EFI w/ Force Fuel (35591)
KEY FEATURES AND BENEFITS:
Designed for 2-Barrel Engines: Supports engines up to 400 HP.
Force Fuel Mini System: Allows use of existing low-pressure fuel pumps.
Self-Tuning Capabilities: Ensures easy setup and operation.
Improved Performance: Enhances fuel efficiency compared to traditional carburetors.
Handheld Controller: Features a 4.5-inch display for monitoring and adjustments.
Includes 255 LPH Fuel Pump: Integrated within the mini Force Fuel unit.
Maximum Horsepower: 400 HP
Injection Style: Throttle body
Metering Style: Speed density (MAP-N)
Throttle Body Mounting Flange: Holley 2-barrel (2300)
Airflow Rate: 500 CFM
Injector Size: 62 lbs/hr
Fuel Pump Flow: 340 LPH (within Force Fuel unit), 255 LPH (within mini Force Fuel unit)
Venturi: 2 x 44 mm
ECU Included: Yes
Fuel Pump Included: Yes
Timing Control: Compatible
Fuel Type: Alcohol, Gasoline, Methanol, Flex
Compatibility: Vehicles with a Holley 2300 2-barrel intake manifold flange
Preparation: Disconnect the battery and remove the existing carburetor and fuel lines.
Installation of Throttle Body: Mount the FiTech 2-barrel throttle body onto the intake manifold using the provided gasket.
Wiring: Connect the wiring harness to the ECU, fuel pump, ignition, power, and tach signals.
Sensor Installation: Install the oxygen sensor, coolant sensor, MAP sensor, IAT sensor, and TPS sensor.
Handheld Controller: Connect the handheld controller and follow the on-screen instructions for initial setup and calibration.
Initial Start-up: Start the engine and allow the self-tuning feature to calibrate the fuel mixture.
Fine Tuning: Use the handheld controller to make any necessary adjustments.
BENEFITS OF USING THE FITECH 2 BARREL 400 HP CLASSIC GOLD EFI W/ FORCE FUEL (35591):
Enhanced Engine Performance: Improves responsiveness and overall power.
Improved Fuel Efficiency: Reduces emissions and enhances economy.
Simplified Cold Starts: Provides smoother idle and easier startup.
Elimination of Carburetor Tuning Issues: Reduces maintenance and tuning hassles.
Increased Reliability: Consistent performance across various conditions.
Easier Installation: More straightforward than many other EFI systems.
Gold Finish Cast Aluminum Throttle Body: Durable and stylish design.
Integrated ECU: For simplified wiring and setup.
External Fuel Pump: Integrated in the Force Fuel unit for reliability.
Includes All Necessary Sensors and Wiring: For a complete installation.
4.5-Inch Display Handheld Controller: Facilitates easy adjustments and monitoring.
10 Micron Fuel Filter: Ensures clean fuel supply.
Includes AN Fittings and Fuel Line: For secure connections.
Product identification
- Brand: FiTech
- Model / MPN: 35591
