FiTech efi fuel tank details

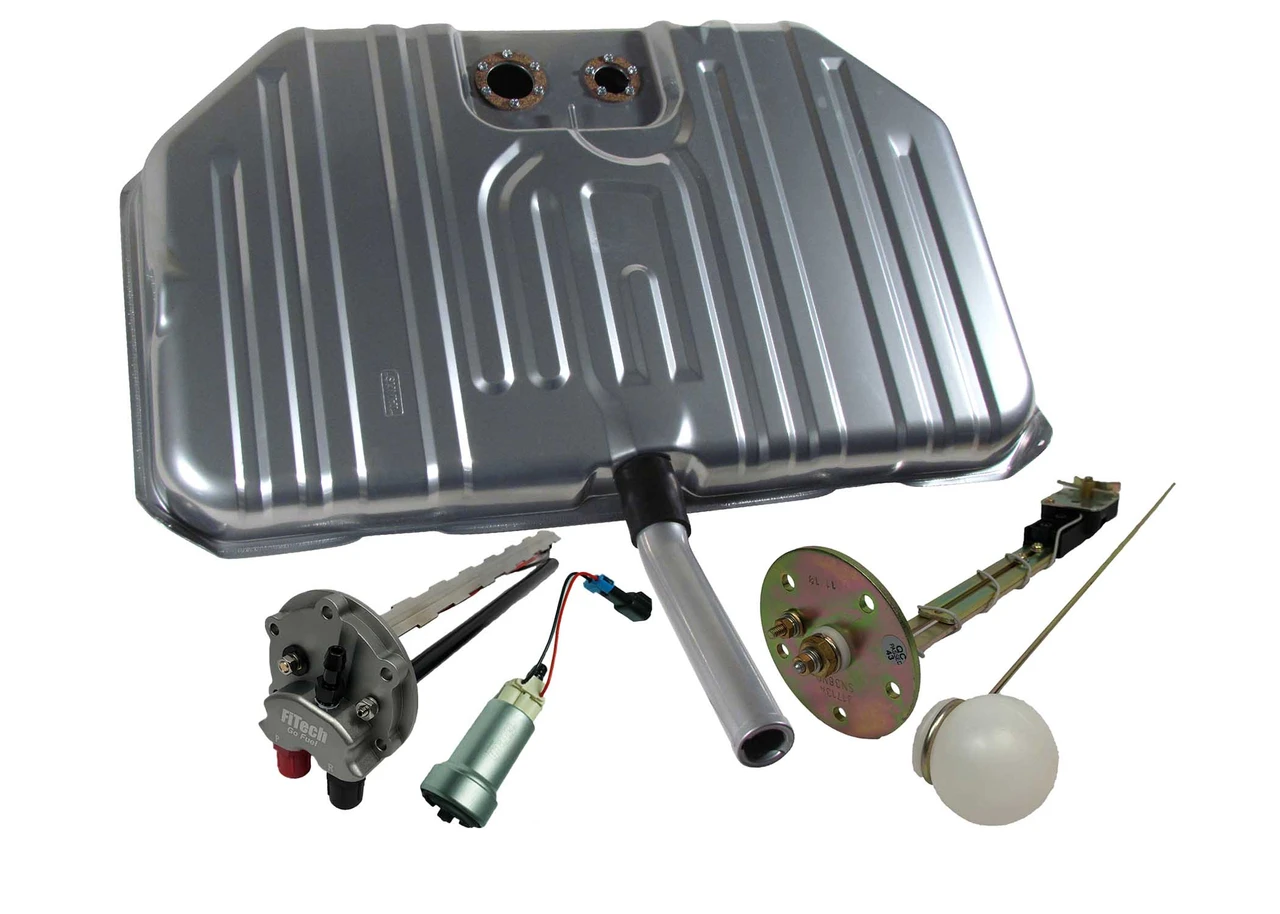

FiTech 1971-1972 Chevelle Notched 440 LPH EFI Fuel Tank Kit (58132)
KEY FEATURES AND BENEFITS:
Direct-Fit Tank: Includes a baffled 20-gallon steel fuel tank designed specifically for Chevelle models.
High-Flow Fuel Pump: The 440 LPH in-tank fuel pump supports up to 1000 HP, ensuring ample fuel flow for high-performance applications.
Recessed Sending Unit: Allows for factory gauge compatibility.
Mounting Straps Included: Facilitate easy installation and secure fitting of the tank.
Secure Connections: AN-6 inlet/outlet fittings provide leak-free fuel line connections.
Enhanced Safety: The in-tank pump design minimizes the risk of leaks.
Product: FiTech 58132 Fuel Tank Kit
Application: 1971-1972 Chevrolet Chevelle (Notched Corner Tank)
Tank Capacity: 20 Gallons
Fuel Pump Flow Rate: 440 LPH (approximately 116 GPH)
Horsepower Support: Up to 1000 HP
Fitting Type: -6 AN Male O-ring
Material: Steel, Silver Powdercoated
Sending Unit: Included
Mounting Straps: Included
Baffled Sump: Yes
Compatibility: 1971-1972 Chevrolet Chevelle with notched corner tank.
Preparation: Ensure the vehicle is safely supported and the existing fuel system is drained and disconnected.
Tank Installation: Position the new FiTech 58132 tank into the vehicle, aligning it with the original mounting points.
Pump Module Installation: Insert the FiTech Go Fuel in-tank module, ensuring it is securely seated in the tank's recessed mount.
Sending Unit Installation: Attach the recessed sending unit to the tank, connecting the necessary wiring for factory gauges.
Fuel Line Connection: Connect the -6 AN inlet and outlet fittings to the appropriate fuel lines, ensuring a tight and leak-free connection.
Mounting Straps: Secure the tank using the provided mounting straps, ensuring a stable and secure fit.
Electrical Connections: Connect the fuel pump's electrical wiring to the vehicle's electrical system, following the manufacturer's instructions.
Fuel Fill and Testing: Fill the tank with fuel and thoroughly test the fuel system for leaks and proper operation.
BENEFITS OF USING THE FiTech 1971-1972 CHEVELLE NOTCHED 440 LPH EFI FUEL TANK KIT (58132):
Simplified EFI Conversion: The kit provides a complete solution for upgrading to EFI.
High-Performance Capability: The high-flow fuel pump supports demanding engine applications.
Safety Improvements: The in-tank pump design enhances safety by reducing external risks.
Leak-Free Connections: AN-6 fittings ensure secure fuel line connections.
Integrated 440 LPH In-Tank Fuel Pump Module: Ensures high performance and reliability.
Internal Baffling: Maintains consistent fuel pressure during operation.
-6 AN Male Fittings: Provide secure connections for fuel lines.
Silver Powdercoated Steel Construction: Offers durability and corrosion resistance.
Included Mounting Straps: Ensure secure installation of the tank.
Product identification
- Brand: FiTech
- Model / MPN: 58132
FiTech fuel tank kit: see the listed specifications for this model.
