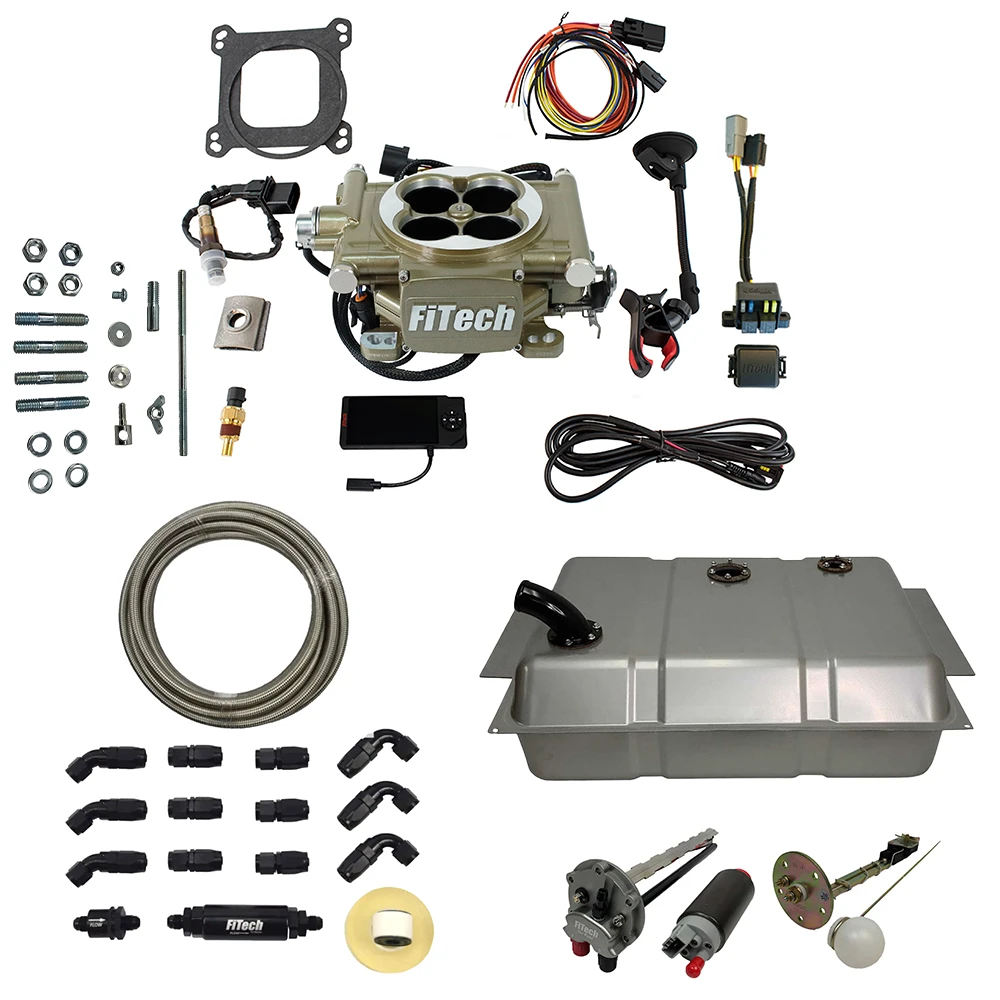

FiTech 1967-1972 Chevy Truck Gold EFI System Side Fill Package (38012)
The FiTech 1967-1972 Chevy Truck Gold EFI System Side Fill Package (38012) is a comprehensive Electronic Fuel Injection (EFI) system designed to modernize and enhance the performance of 1967-1972 Chevy trucks. This "Total Package" provides all essential components for a seamless EFI conversion, eliminating the complexities of traditional carburetor systems. It includes a 600-horsepower rated gold-finished throttle body, a direct-fit fuel tank with an integrated high-pressure pump, and a complete set of stainless steel braided fuel lines. This system offers improved fuel efficiency, better throttle response, and overall enhanced engine performance.
KEY FEATURES AND BENEFITS:
Complete EFI Conversion: Includes all necessary components for a straightforward upgrade, simplifying the process of switching to EFI.
Direct-Fit Design: The fuel tank and components are specifically designed for 1967-1972 Chevy trucks, ensuring a seamless installation.
Improved Fuel Efficiency: The self-learning ECU adjusts fuel mixture for optimal combustion, resulting in better fuel economy.
Simplified Installation: The complete kit and detailed instructions make installation accessible to DIY enthusiasts.
Horsepower Rating: Up to 600 HP
Throttle Body Finish: Gold
Fuel Pump: In-tank, high-pressure
Fuel Tank Capacity: 18 gallons
Fuel Lines: Stainless steel braided
Fuel Filter: 10-micron
ECU: Self-learning
Compatibility: 1967-1972 Chevrolet C10, and other GM trucks of the same era. Also, the throttle body unit is compatible with any engine that has a 4-barrel intake manifold.
Remove Existing Components: Disconnect and remove the existing carburetor and fuel system components.
Install Fuel Tank: Install the new fuel tank with the integrated pump, ensuring proper connections.
Mount Throttle Body: Install the FiTech throttle body onto the intake manifold, securing it with the provided hardware.
Connect Fuel Lines: Connect the stainless steel braided fuel lines from the tank to the throttle body, using the provided AN fittings.
Connect Electrical Components: Connect the ECU, sensors, and handheld controller as per the instructions.
Initial Setup: Use the handheld controller to input basic engine parameters and start the engine.
Self-Learning Calibration: Allow the ECU to self-learn and adjust fuel mixtures over time.
Final Adjustments: Make any necessary fine-tuning adjustments using the handheld controller.
BENEFITS OF USING FITECH 1967-1972 CHEVY TRUCK GOLD EFI SYSTEM SIDE FILL PACKAGE (38012):
Improved engine performance and throttle response.
Enhanced fuel efficiency and reduced fuel consumption.
Reliable cold starts and consistent idle.
Simplified engine management with self-learning capabilities.
Modernized engine operation for classic vehicles.
Reduced maintenance compared to traditional carburetors.
Gold-finished throttle body for a classic look.
Integrated fan control.
Built-in pressure regulator.
High-flow serviceable fuel filter.
AN-style fittings.
Included 40 feet of stainless steel braided hose.
1 BAR internal MAP sensor.
4 flow-matched injectors.
5-bolt sender-ready fuel tank.
Side fill fuel tank design.
Product identification
- Brand: FiTech
- Model / MPN: 38012
