FiTech efi fuel tank details

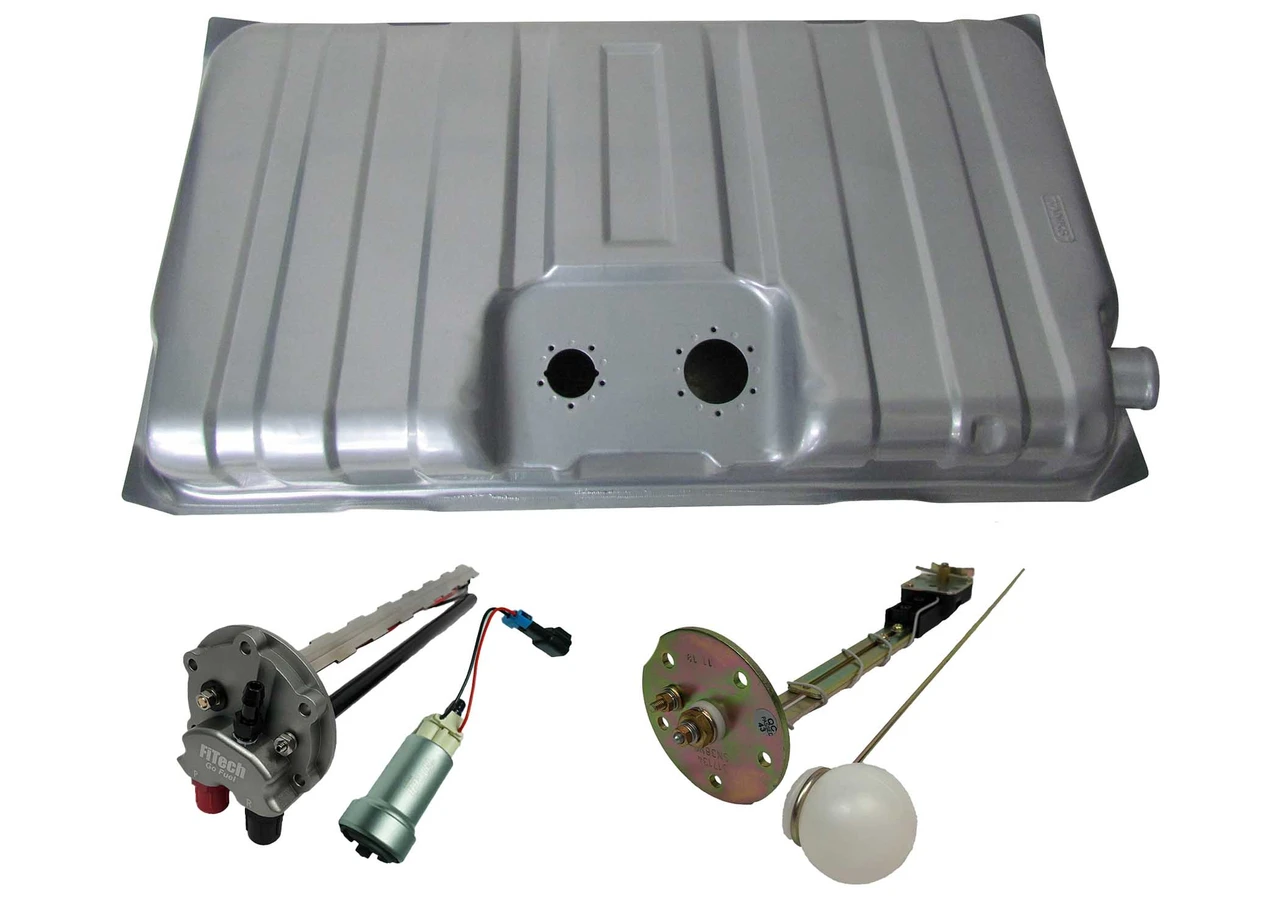

FiTech 1966-1967 Chevy II 440 LPH EFI Fuel Tank Kit (58141)
KEY FEATURES AND BENEFITS:
Direct-Fit Fuel Tank: 16-gallon steel tank with internal baffles to prevent fuel starvation.
High-Performance Fuel Pump: In-tank 440 LPH fuel pump module capable of supporting up to 1000 horsepower.
Factory Gauge Compatibility: Includes a fuel level sending unit compatible with factory gauges.
Complete Kit: Comes with mounting straps and a filler neck as needed.
Leak-Free Connections: -6 AN inlet and outlet fittings for secure fuel line connections.
Added Clearance: Recessed sending unit and pump mount for easier installation.
Vehicle Compatibility: 1966-67 Chevy II/Nova
Fuel Tank Capacity: 16 gallons
Fuel Pump Flow Rate: 440 LPH
Fuel Pump Included: Yes
Sending Unit Included: Yes
Outlet Quantity: 2
Fitting Size: -6 AN
Fuel Tank Material: Steel
Fuel Tank Color: Silver powdercoated
Dimensions: 28 × 11 × 47 inches
Preparation: Drain the existing fuel tank and disconnect fuel lines and electrical connections.
Removal: Remove the old fuel tank and sending unit.
Installation: Position the FiTech 58141 fuel tank into the vehicle.
Pump Module Installation: Install the FiTech 440 LPH pump module into the recessed mount within the tank.
Sending Unit Installation: Install the fuel level sending unit, ensuring proper connection.
Fuel Line Connections: Connect the -6 AN fuel lines to the inlet and outlet fittings.
Electrical Connections: Connect the fuel pump and sending unit electrical connections.
Mounting: Secure the tank using the provided mounting straps.
Filler Neck: Install the filler neck if required.
Testing: Fill the tank with fuel and test for leaks and proper operation.
BENEFITS OF USING THE FiTech 1966-1967 CHEVY II 440 LPH EFI FUEL TANK KIT (58141):
Simplified EFI Conversion: Streamlines the upgrade process with a complete kit.
High-Performance Support: Designed for high-performance engine builds.
Direct-Fit Design: Facilitates easy installation without modifications.
Compatibility with Factory Gauges: Maintains original gauge functionality.
Modern Fuel System: Upgrades classic vehicles to modern standards.
Corrosion-Resistant Construction: Powder coated steel for durability.
Recessed Mounting: For pump and sender to maximize space.
AN Style Fittings: For secure, leak-free connections.
OEM Style Mounting Straps: Included for easy installation.
Product identification
- Brand: FiTech
- Model / MPN: 58141
FiTech fuel tank kit: see the listed specifications for this model.
