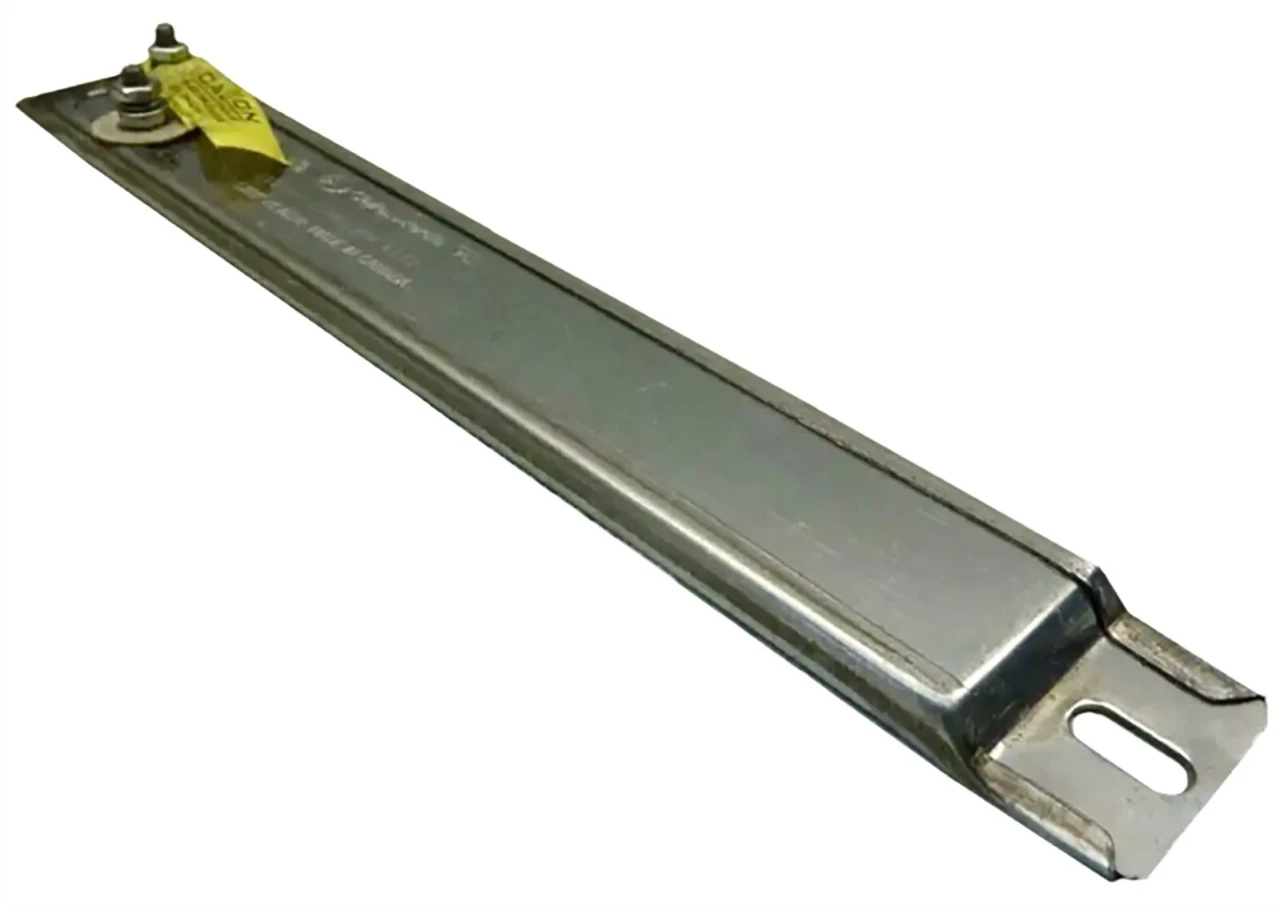

Caloritech SS2081 120V 400W Stainless Strip Heater
Caloritech SS2081 is an 8-inch strip heater rated at 120V and 400W, with a stainless-steel sheath. Its listed maximum sheath exposure temperature is 1200°F (649°C). This material and limit distinguish it from the aluminized-steel models in the range, but do not establish the temperature a process will reach or make it suitable for every high-temperature installation.
Specifications and included details
- 8-inch length; 120V, 400W, single-phase electrical rating.
- Stainless-steel sheath with a listed 1200°F (649°C) maximum sheath exposure temperature.
- Two offset #10-32 bolt-type terminals; 5/8 x 9/32-inch mounting slots.
- Listed heat output of 1365 BTU/hour; no integrated adjustable thermostat.
Before ordering
Confirm the SS2081 electrical rating, stainless sheath and manufacturer mounting drawing for the intended application. Select external temperature controls, sensing and installation materials with a qualified installer. A maximum sheath limit does not establish an allowable temperature for nearby parts or an approval for a particular food-processing or environmental application.
Product questions and answers
Is SS2081 stainless steel or aluminized steel?
SS2081 is listed with a stainless-steel sheath. Do not copy the aluminized-steel material specification from another SS-series model when selecting this heater.
Does SS2081 automatically maintain 1200°F?
No. The figure is the listed maximum sheath exposure temperature. The heater has no integrated adjustable thermostat; process temperature depends on separately selected controls and the installation.
What makes an 8-inch replacement a match for SS2081?
Check the 120V, 400W single-phase rating, stainless sheath, offset #10-32 terminals and complete mounting drawing. Equal length alone does not confirm the electrical, thermal or mechanical requirements.
