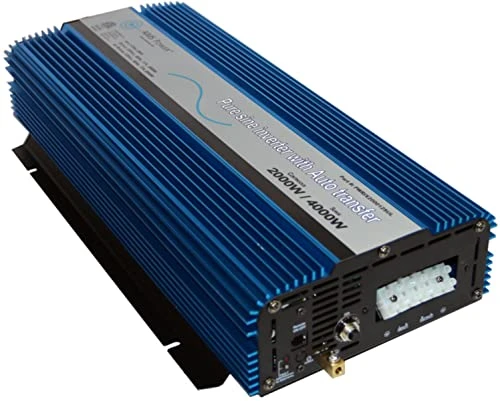

AIMS Power Pure Sine Inverter with Transfer Switch 2000W (PWRIX2000SUL)
Features & Benefits:
Pure sine wave output for sensitive devices
ETL listed and UL 458 compliant
Built-in 25A automatic transfer switch (ATS) with less than 20ms transfer time

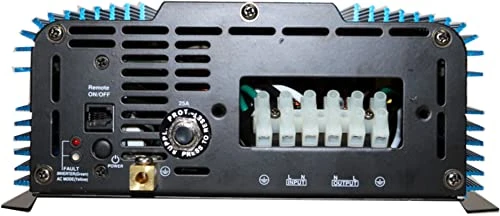

Hardwire direct connect terminal block for AC
2000W continuous power, 4000W surge capability
Intelligent cooling fan with thermal protection
Conformal coating for marine use
No need for programming or DIP switches
AC pass-through when the inverter is off or disconnected
Optional remote switch available for easy operation
2000 watts continuous power
4000-watt surge (not recommended for startup applications)
25A automatic transfer switch, transfer time <20 msec
Bypass/throughput = 25 amps (Do not exceed; damage may occur)
DC input voltage: 10-16V
AC input voltage: 120VAC ±10%
Output voltage: 120VAC, 60Hz
Efficiency: 86-90%
Over voltage shutdown: 16VDC ±0.5V
Under voltage shutdown: 10VDC ±0.5V
Under voltage alarm: 10.3VDC ±0.3V
Over temperature protection: 150°F ±5°F
Thermal fan for cooling
No load current: 1.2A
Dimensions (L x W x H): 21.5″ x 9.5″ x 3.8″
Weight: 14.4 lbs (unit), 18 lbs (boxed)
Optional remote: Part # REMOTEHF (flush mount design)
Optional DIP switches to blackout the lights
Product identification
- Brand: Aims Power
- Model / MPN: PWRIX2000SUL
