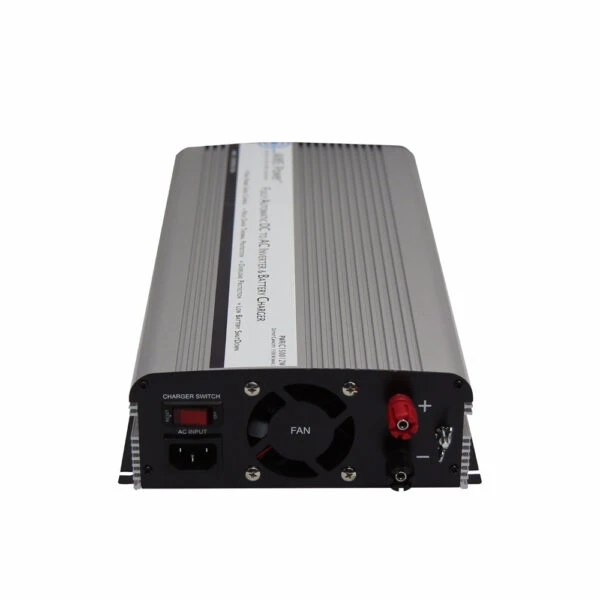

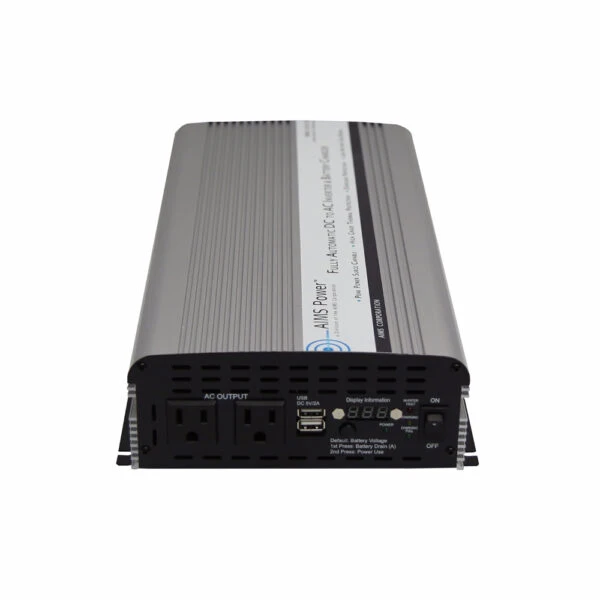

Aims Power 1500 Watt Power Inverter With Battery Charger And Transfer Switch (PWRIC150012W)
PWRIC1500W Overview: Do you need a power inverter to supply backup power for your home or an inverter charger for your RV or boat? This AIMS 1500-watt modified sine power inverter has been designed to meet your backup or mobile power inverter needs.
The charger built into this power inverter outputs 10 DC amps of charge. That will keep your batteries fully charged, so if and when the power does go out, your batteries will be ready to supply power to this backup power inverter.
The most common use for this modified sine inverter charger is to back up sump pumps in your basement. That can prevent flooding and other problems when a storm hits and knocks out your utility’s power while swamping your neighborhood with rain.
1500W max continuous power
Modified sine wave
Green LED indicates ac input power is functional and battery is charging
Transfer switch automatically switches when city power is lost
Red LED indicates ac input power is not functional and battery is being used
Dual ac receptacle
Over Temperature protection
Over Load protection
Single cooling fan operation
AC cable included to connect to shore power
Internally fuse protected
AC output short circuit protection
Aluminum case for optimal cooling
Pre-slotted mounting plate
Instruction manual
Free 1 year tech support
Continuous output power: 1500 Watts 3000 Watt Surge
Surge power capability (peak power): 3000 Watts
DC input / operating voltage: 10 to 15 Volts
Output voltage: 120 Volts ac
Output wave form: modified sine wave
Output frequency: 60 Hz +/- 1 Hz
Battery low voltage alarm: 10.5 +/- 0.5 Volts
Battery low voltage shutdown: 10.0 +/- 0.5 Volts
Efficiency: 85-90%
No load draw: .6 amps
AC Output Socket Type: dual Type 2 -3 prong
High input voltage protection: 15V
Low input voltage shutdown: 10V
Internal fuse protection
3-10 sec transfer time between loosing ac input power and switching to providing ac output power
Product size (L x W x H): 15.5 X 7.75 X 3.25
Weight: Unit: 7 lbs Boxed: 9 lbs
UL maximum recommended per outlet 1500W
Product identification
- Brand: Aims Power
- Model / MPN: PWRIC150012W
