20 ton service jack details

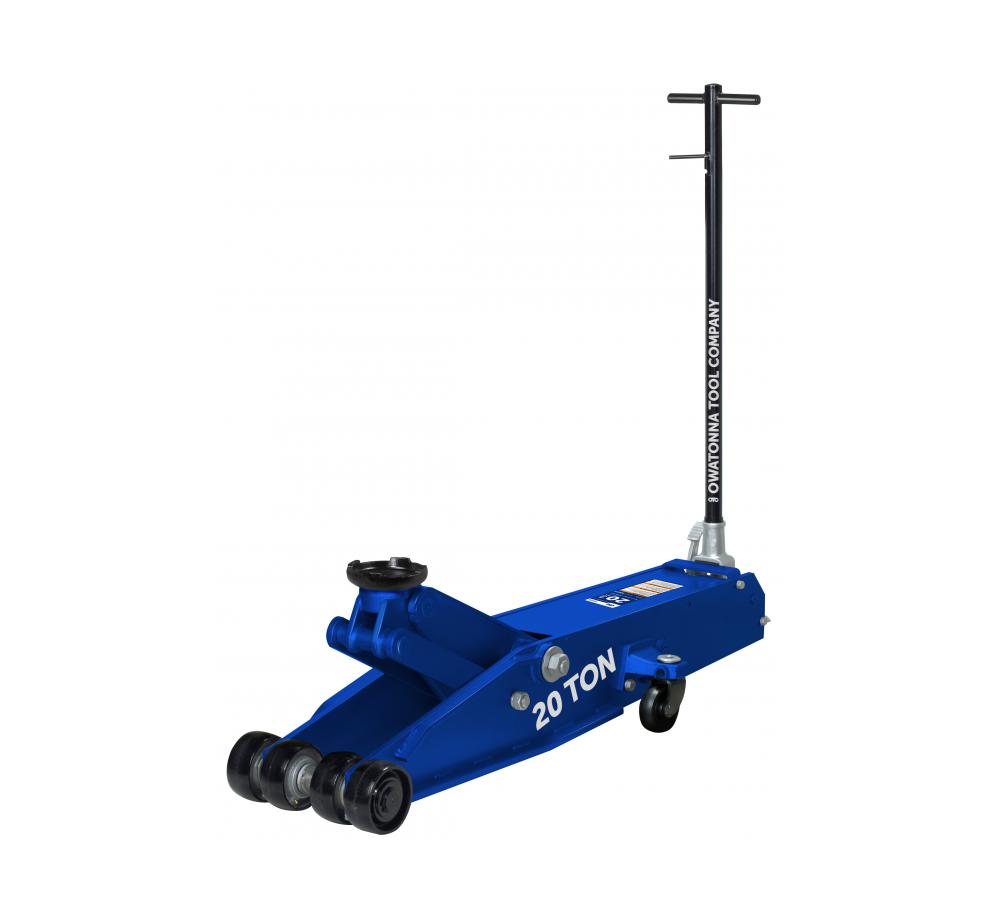

20 Ton Service Jack
OTC’s HDJ20 is a 20-ton capacity service jack with a low-profile stance and extended height to add versatility. Large metal wheels and swivel casters roll effortlessly on internal bearings. Foot pedal for quick no load approach.
Ideal size for safely lifting heavy duty vehicles, construction, fleet, and agricultural equipment, mass transit buses, loaded vocational vehicles and more.
Cycle-tested design for a long life of professional duty. Meets all 5 ASME PASE-2019 safety standards for service jacks.
Lifting range: 7-1/2" to 23.8"
Saddle: 6-1/2" dia., steel crown
Frame height: 10.2"
Handle length: 47-1/2", 3-position spring-assisted locking
Floor space: 18-1/8" x 61-3/8"
Casters: 6; 4 front fixed, 2 mid-body swivel
Features
- Reinforced Chassis, Caster Wings and Power Unit housing for true heavy duty lifting jobs
- Bypass Valves prevent overload and ram over-extension
- Enhanced release valve action for controlled lowering
- Front wheel configuration provides maximum load stability
- Large saddle diameter aides easier contact with vehicle lift point
- Multi-lingual Owner's Manual with training (operating) instructions
Included components
- HDJ20 20 Ton capacity service jack
- OTC Owner's Manual
Product identification
- Brand: OTC
