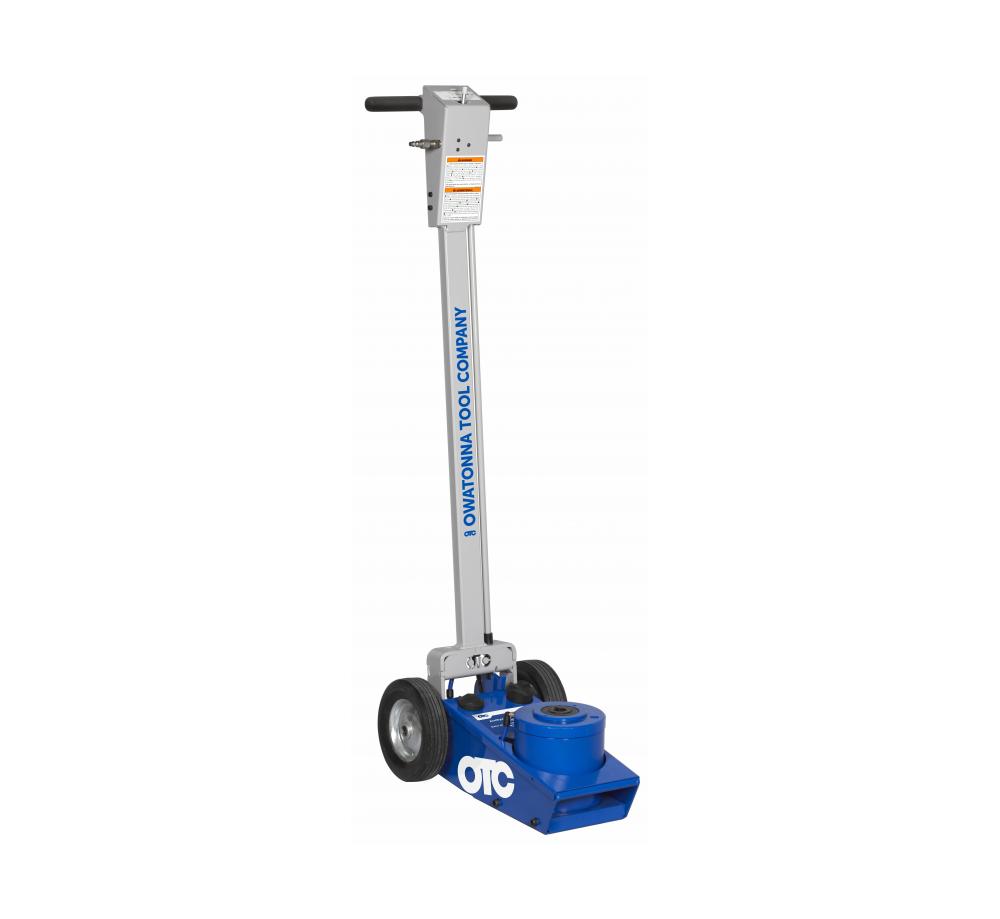

27.5-ton Under Axle Jack
The 4-position handle includes a stow-away position for easy storage and near-vertical handle position. A pneumatic release valve offers more precise release control without requiring a separate valve operation step. The jack's completely sealed piston protects it from dirt, dust, sand or other damaging outside elements.
4.9375" Cylinder stroke, 4-1/2"; 4-1/4" extended screw length.
Ideal size for safely lifting heavy duty vehicles.
27.5-ton capacity
Air pressure: 90 – 175 PSI
Lifting range: 8-1/4" to 21-3/8" using longest saddle
Saddle: 3" dia., round with center notch. Includes 2 saddle adapters
Max height using saddle only: 13-1/8"
Max height using large adapter: 21-3/8"
Frame height: 8.27"
Handle length: 48-3/4" T handle with lowering lever and air-chuck hook
Footprint: 22" x 12"
Wheels: 2 fixed; 7.88" rubberized steel
Meets all 5 ASME PASE-2019 safety standards for service jacks
Features
- Heavy-duty air and hydraulic performance for garages, equipment dealers, commercial service and more
- Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- 4-position handle makes it easy to position under vehicles with low overhangs
- Wide rugged base adds stability and strength
- Large rear wheels provide easy positioning and portability
- Multi-lingual OTC Owners Manual for service jacks with training (operating) instruction
Included components
- 27.5 ton under axle service jack
Product identification
- Brand: OTC
