5 ton service jack details

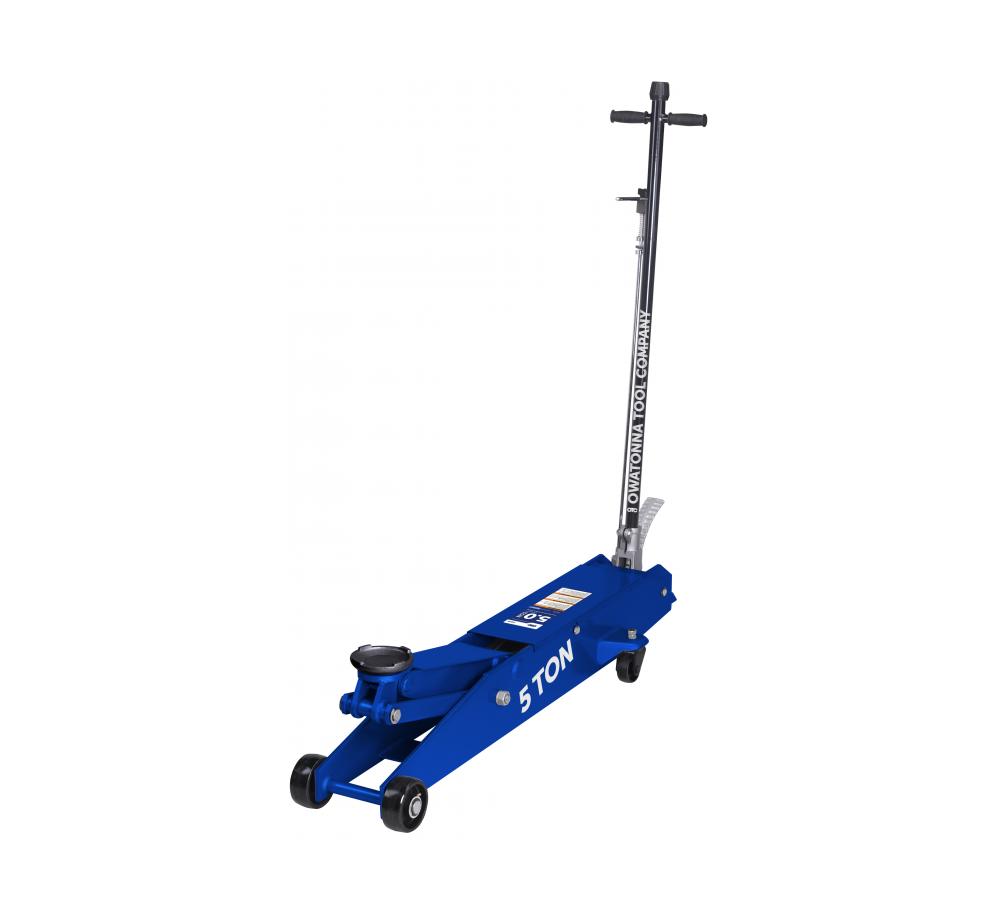

5 Ton Service Jack
An extremely safe and durable long chassis 5-ton floor jack. Built-in safety overload prevents using the jack beyond its rated capacity. A convenient foot pedal speeds the lifting operation. Handle lock and release controls are located on top of the 40" spring-loaded handle. Handle can be locked into any position from vertical to horizontal. Cycle tested design for a long life of professional duty.
Ideal size for lifting step vans, bucket trucks and smaller work vehicles.
Lifting range: 6" to 22"
Saddle: 5-1/8" dia., round
Frame height: 7.9"
Handle length: 43" 3-position with lock and release controls
Floor space: 15" x 56"
Casters: 4; 4.4" fixed front (2), 2.8" mid-body swivel (2)
Meets all 5 ASME PASE-2019 safety standards for service jacks
Features
- Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
- Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- Convenient foot pedal for no load lifts
- Front wheels with roller bearings and ball bearing – mounted rear caster wheels provide stability and easy maneuverability
- Overload and by-pass safety valves prevent use beyond the jacks rated capacity and over extension of the ram
- Handle can be locked into one of three positions from horizontal to vertical and has independent release knob
- Multi-lingual safety and capacity markings
- OTC Owners manual for service jacks with training (operating) instructions
Included components
- OTC HDJ5 – 5 Ton Service Jack
- OTC Owner's Manual for Service Jacks
Product identification
- Brand: OTC
