10 ton service jack details

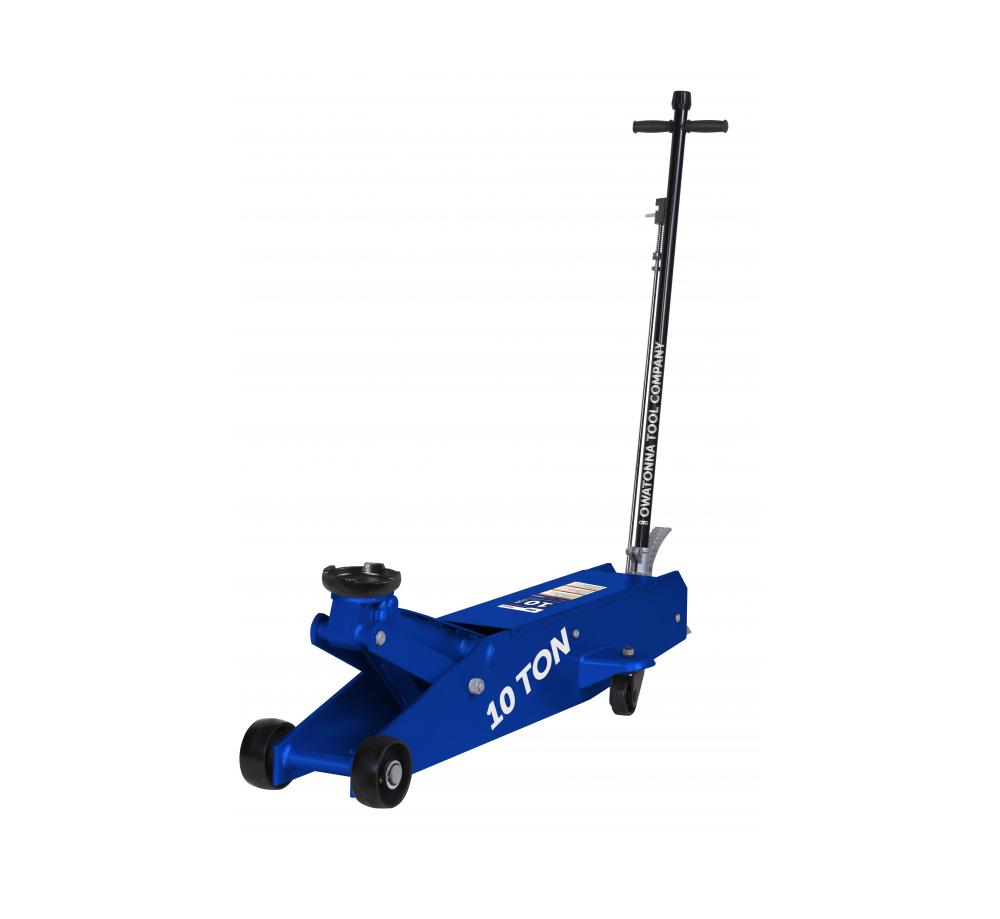

10 Ton Service Jack
The OTC 10-ton service jack has built-in safety overload to prevent over utilization beyond the jack's rated capacity. This 10-ton floor jack also features a convenient foot pedal to speed the lifting operation. Handle lock and release control are located on top of the handle. Spring-loaded 43-1/4" handle can be locked into any position from vertical to horizontal. Cycle tested design for a long life of professional duty.
Ideal size for vocational vehicles, bucket trucks, school buses and larger vehicles.
Lifting range: 6.3" to 22"
Saddle: 6" dia., round
Frame height: 9.8"
Handle length: 43.25" 3-position with lock and release controls
Floor space: 18" x 60"
Casters: 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)
Meets all 5 ASME PASE-2019 safety standards for service jacks
Features
- Heavy duty hydraulic performance for garages, equipment dealers, commercial service and more
- Welded hydraulic pump and cylinder construction provides increased strength and leak prevention
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- Convenient foot pedal for no load lifts
- Front wheels with roller bearings and ball bearing mounted rear caster wheels provide stability and easy maneuverability
- Overload and bypass safety valves prevent use beyong jacks rated capacity and over extension of the ram
- Handle can be locked into one of three positions from vertical to horizontal and has independent release knob
- OTC Owner's Manual for service jacks with training (operating) instructions
Included components
- HDJ10 10 Ton Service Jack
- 1 Piece Handle with spring locking mechanism
- OTC Owners Manual for Service Jacks
Product identification
- Brand: OTC
