Bottle jack details

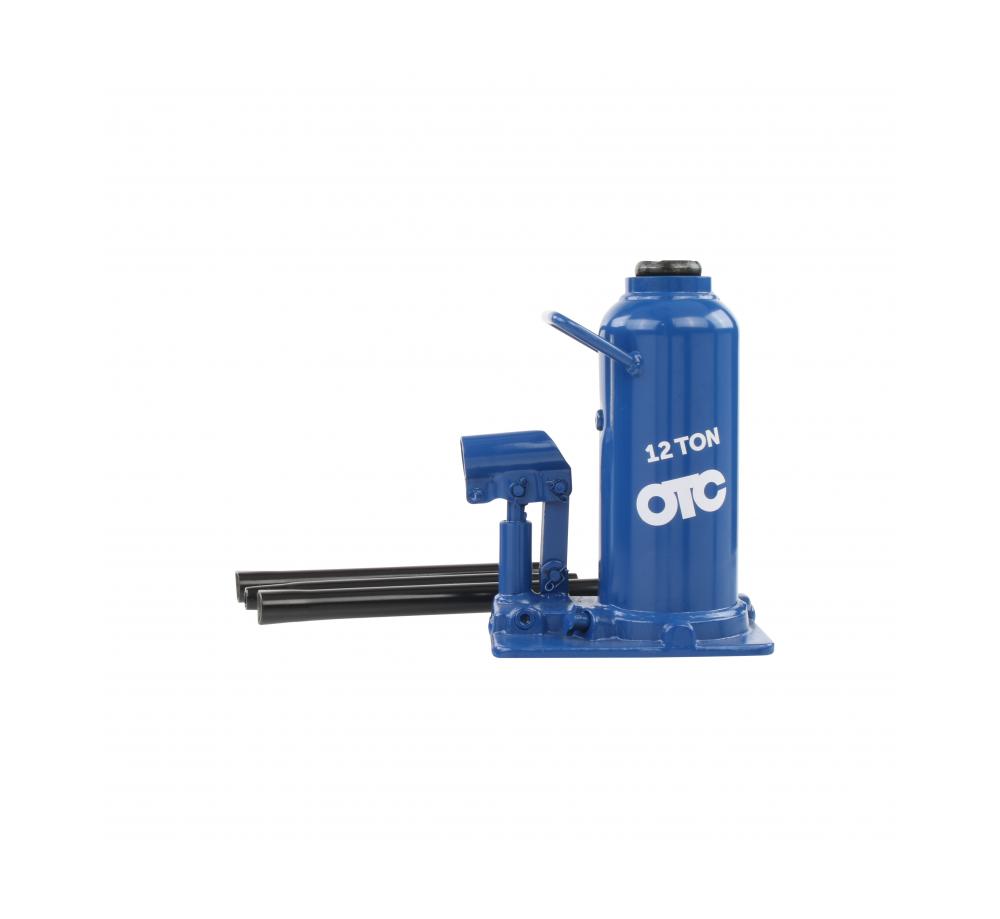

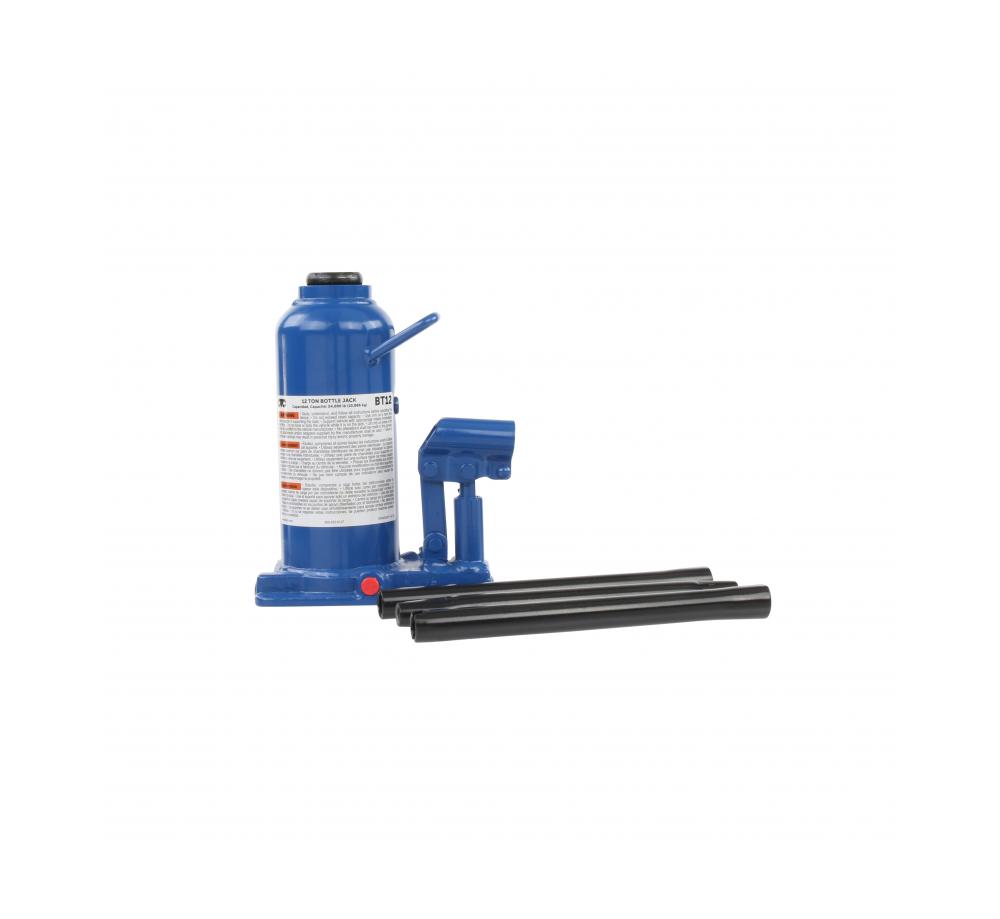

12-Ton Bottle Jack
The 12-Ton Bottle Jacks from OTC are not only compact, but also heavy-duty, making them perfect for use in the trucking and construction industries, and more. With this bottle jack, get the reliable lifting power that you need in the shop, at the roadside or job site.
Constructed with a forged base and cylinder, these jacks are built to last, ensuring strength and eliminating leaks. The chromed pump piston and ram increase rust resistance and help to extend the service life of the jack. The inline design makes it easy to use for both positioning and lifting. The built-in extension screw on the ram provides added height and helps to meet the working surface faster.
All OTC bottle jacks meet or exceed the newest ASME PASE-2019 safety standards for portable automotive service equipment. This includes a built-in safety valve that prevents overloading and ensures that the jack has a stable base to prevent tipping when loaded off-center.
Capacity (Tons): 12
Min height, retracted: 9-3/8”
Screw extension length: 3-1/4”
Max height w/ screw extension: 18-5/8”
Pumps to extend piston one inch: 21
Saddle dia.: 1-3/4”
Base size: 6-9/16” x 4-3/16”
Carry handle: Yes
Weight: 18.9 lbs
Recommended stand: S012
Features
- Forged base and cylinder ensures strength and eliminates leaks
- Chromed pump piston and ram increase rust resistance and helps extend service life
- Multi-lingual OTC Owner's Manual with training (operating) instructions
Included components
- 12-Ton Bottle Jack
- Multi-lingual OTC Owner's Manual
Product identification
- Brand: OTC
