Air jack details
American Forge & Foundry 35-Ton Single Stage Air/Hydr Axle Jack (536)

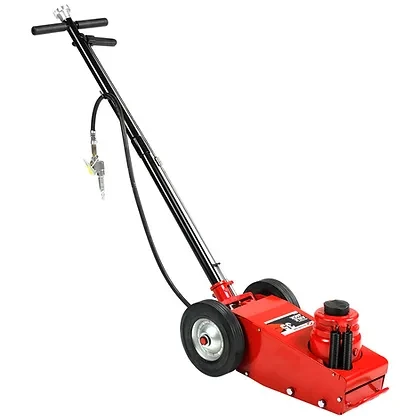

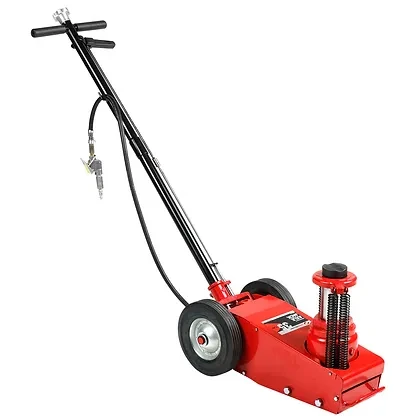

The American Forge & Foundry 35-Ton Single Stage Air/Hydr Axle Jack (536) is engineered for the demanding world of heavy vehicle maintenance. This robust lifting solution provides substantial 35-ton capacity, making it an indispensable tool for truck and trailer shops, rail and bus maintenance, and crucial roadside service calls. Its advanced air/hydraulic system ensures rapid, controlled lifting and lowering, enhancing efficiency and safety in any professional setting. The thoughtfully designed compact and low-profile chassis allows for optimal access, easily fitting between the wheels of tandem axle vehicles. Constructed with precision and quality in mind, the Model 536 stands as a reliable partner for your toughest lifting challenges.
KEY FEATURES AND BENEFITS:
High Lifting Capacity: Provides a substantial 35-ton capacity, suitable for a wide range of heavy trucks, trailers, and industrial equipment.
Efficient Air/Hydraulic Operation: Utilizes a specially engineered high-speed air motor to deliver fast and efficient lifting, significantly reducing service time.

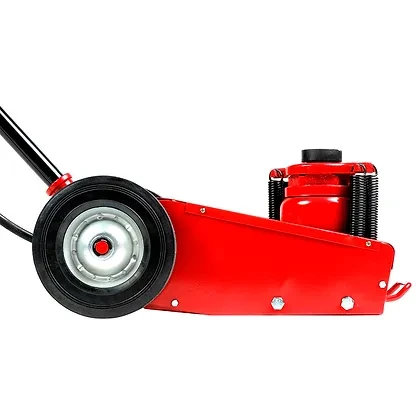

Compact & Accessible Design: Features a low-profile and compact chassis that allows for maximum access, making it easy to position the jack even between the wheels of tandem axle vehicles.

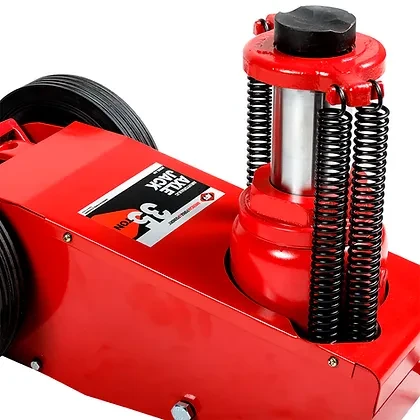

Enhanced Stability and Durability: Built with fully welded hydraulic pump and cylinder construction, ensuring increased structural strength and reliable, leak-free operation.
Superior Mobility: Equipped with large all-terrain rubber wheels, facilitating effortless movement and positioning whether in a busy shop or on varied outdoor surfaces.

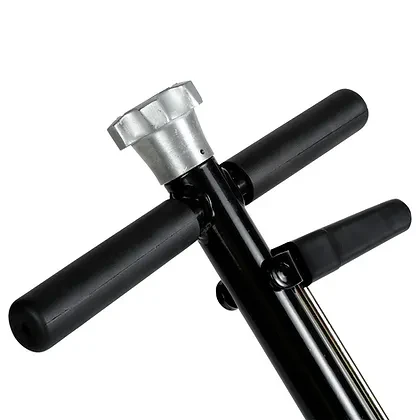

Flexible Positioning: An extra-long handle can be locked in three different positions (90-180 degrees), providing versatile positioning options and improved user ergonomics.
Safety Assurance: Incorporates a safety overload system that prevents the jack from being operated beyond its rated capacity, protecting both equipment and personnel.
Capacity: 35 Tons
Chassis Length: 24.3 inches
Chassis Width – Front: 8 inches
Chassis Width – Rear: 12.8 inches
Duty Level: Heavy Duty
Handle Length: 42 inches
Operation: Air/Hydraulic
Low Height: 10.7 inches
Ram Lift – Stage 1: 5.1 inches
Saddle Diameter: 1.9 inches
Extension: 4.92 inches
Working Air Pressure: 90-150 PSI
High Height: 23 inches (Total with extensions)
Reach: 58 inches
Width: 12.5 inches (Overall width)
Prepare the Vehicle: Ensure the vehicle is on a stable, level surface. Engage the parking brake and block any wheels that will remain on the ground to prevent movement.
Connect Air Supply: Connect an air compressor line to the jack's air inlet. Ensure your air compressor can supply the required working air pressure of 90-150 PSI.

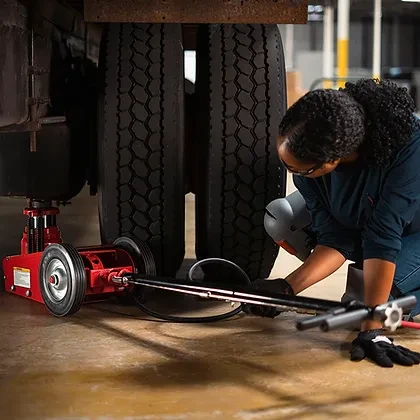

Position the Jack: Roll the axle jack to the desired lifting point under the vehicle's axle or frame. Utilize the extra-long handle and its 3-position lock (90-180 degrees) for optimal positioning.
Select Extensions: If needed, insert one or more of the provided heat-treated extensions (3/4”, 2-3/4”, or 4”) into the saddle to achieve the necessary lifting height.
Initiate Lift: Operate the control valve or lever to start the air/hydraulic lifting mechanism. The specially engineered high-speed air motor will rapidly advance the ram to the load.
Lift to Desired Height: Continue lifting until the vehicle reaches the desired working height. Monitor the stability of the vehicle throughout the lifting process.
Secure with Stands: Crucially, once the vehicle is lifted, immediately place appropriately rated jack stands under the vehicle at secure support points. The axle jack is a lifting device, not a long-term support device.
Remove Jack: Once the ram is fully retracted, remove the axle jack from under the vehicle.
BENEFITS OF USING AMERICAN FORGE & FOUNDRY 35-TON SINGLE STAGE AIR/HYDR AXLE JACK (536):
Accelerated service times due to high-speed air motor for rapid lifting.
Enhanced workplace safety with overload protection and smooth descent mechanism.
Improved maneuverability from compact chassis and large wheels.
Reliable performance from welded construction and precision machining.
Versatile applications for trucks, buses, trailers, and agricultural equipment.
User comfort with an ergonomic, multi-position handle design.
Precision-machined internal pump, ram, and cylinders for consistent performance.
Corrosion-resistant air motor crafted from aluminum and nylon composite materials.
Advanced motor design for quick ram advancement to the load.
Large 8-5/8 inch diameter rear wheels for effortless movement and positioning.
Includes three distinct heat-treated extensions for varied lifting heights.
Integrated in-line filter to protect the air motor from potential contaminants.
Supplied with a convenient two-piece handle for ease of assembly and use.
Product identification
- Brand: American Forge & Foundry
- Model / MPN: 536
