10 ton hydraulic service jack details

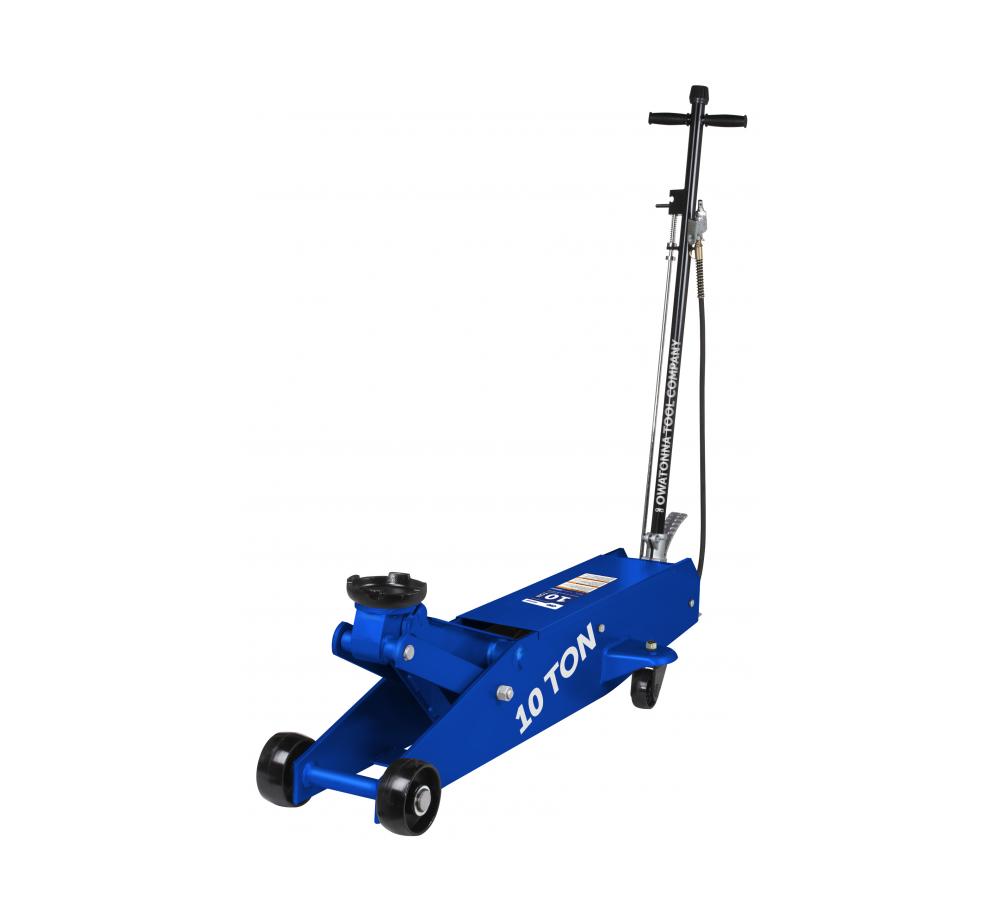

10 Ton Air / Hydraulic Service Jack
Ideal size for vocational vehicles, bucket trucks, school buses and larger vehicles.
Air pressure: 80–120 PSI
Lifting range: 6-3/8" to 22"
Saddle: 6" dia., round
Frame height: 9.8"
Handle length: 45.4" 3-position with lock and release controls
Floor space: 18.9" x 60.8"
Casters: 4; 5.6" fixed front (2), 3.6" mid-body swivel (2)
Meets all 5 ASME PASE-2019 safety standards for service jacks
Features
- Heavy duty hydraulic service for garages, equipment dealers, commercial service and more.
- Welded hydraulic pump and cylinder construction provides increased strength and leak protection
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuvering
- Overload and bypass safety valves prevent use beyond rated capacity ad over extension of the ram
- Handle can be locked in three positions from horizontal to vertical and has independent release knob
- Uses shop air supply for lifting assistance
- OTC Owners Manual for service jacks with training (operating) instructions
Included components
- HDJ10P a 10 ton capacity – air assisted service jack
- 1-piece handle with spring locking mechanism
- OTC Owners manual for service jacks
Product identification
- Brand: OTC
