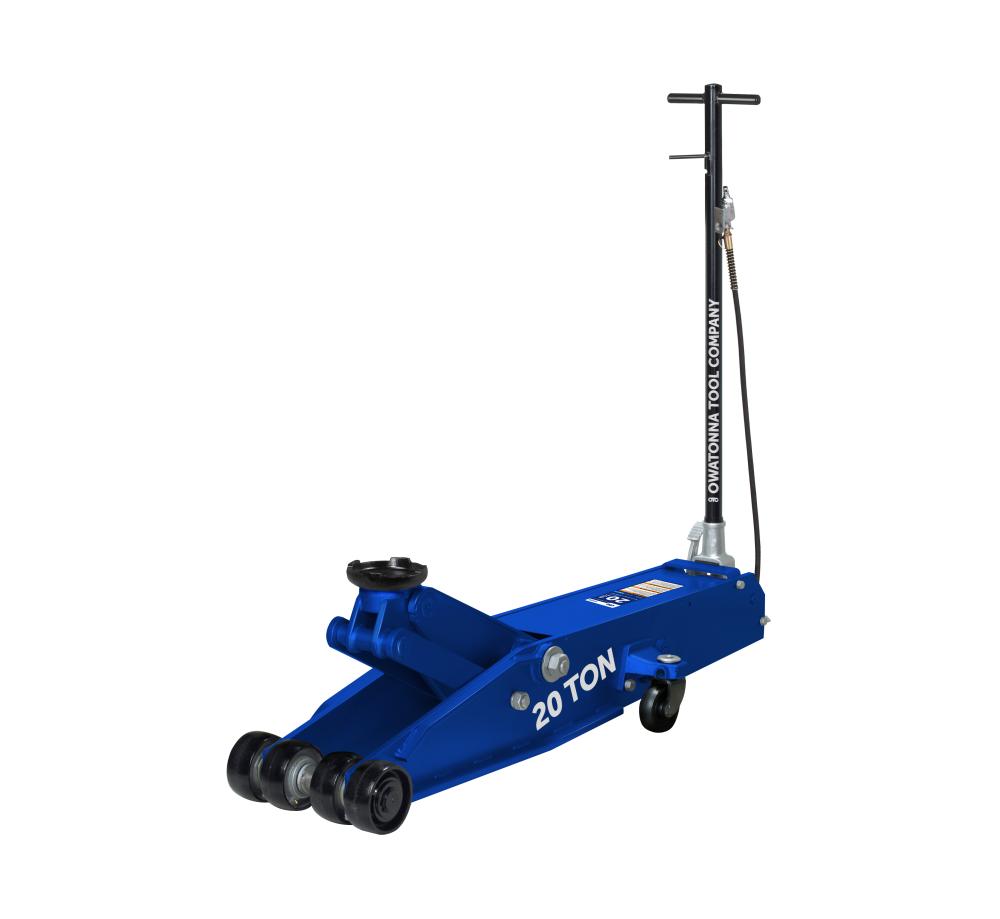

20 Ton Air / Hydraulic Service Jack
Bring the versatility of air-assist operation to your shop’s lifting tasks with the OTC HDJ20P. Rugged steel frame members ensure confident lifting service. Low-profile stance and extended height add to versatility. Huge metal wheels and swivel casters roll effortlessly on internal bearings, providing trouble-free service life. Air-assist, foot or jack handle pumping action.
Ideal size for safely lifting bucket trucks, school buses, city buses, garbage trucks and more.
Air pressure: 80–120 PSI
Lifting range: 7-1/2" to 23.8"
Saddle: 6-1/2" dia., steel crown
Frame height: 10.2"
Handle length: 47-1/2", 3-position spring-assisted locking
Footprint: 18-1/8" x 61-3/8"
Casters: 6; 4 front fixed, 2 mid-body swivel
Meets all 5 ASME PASE-2019 safety standards for service jacks.
Features
- Heavy duty hydraulic service for garages, equipment dealers, commercial service and more.
- Welded hydraulic pump and cylinder construction provides increased strength and leak protection
- Chrome plated ram for additional rust resistance
- Wiper seals protect hydraulic system from contaminants
- Front wheels with roller bearings and ball bearing-mounted rear caster wheels provide stability and easy maneuvering
- Overload and bypass safety valves prevent use beyond rated capacity ad over extension of the ram
- Handle can be locked in three positions from horizontal to vertical and has independent release knob
- Uses shop air supply for lifting assistance
- OTC Owners Manual for service jacks with training (operating) instructions
Included components
- HDJ20P a 20 ton capacity – air assisted service jack
- 1-piece handle with spring locking mechanism
- OTC Owners manual for service jacks
Product identification
- Brand: OTC
20 ton hydraulic service jack: see the listed specifications for this model.
