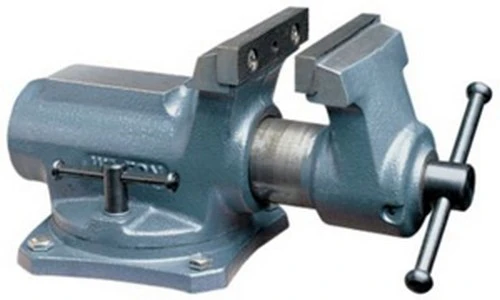

Wilton SBV-65 63244 Super-Junior 2.5-Inch Vise
Wilton SBV-65 Super-Junior 63244 is a compact general-purpose vise with 2.5-inch-wide jaws and a listed 2-1/8-inch maximum opening. Its base swivels 45 degrees left or right for positioning. This is a smaller work-holding format, with opening and bench clearance that should be checked before selecting it for a specific part.
Specifications and included details
- 2.5-inch jaw width and 2-1/8-inch maximum jaw opening.
- Swivel base listed at 45 degrees left or right, with double lockdowns.
- Grooved, replaceable steel jaws and enclosed mechanism.
- Listed overall dimensions: 4.9 inches high, 5.7 inches wide and 9.4 inches long.
Before ordering
Compare the maximum opening with the actual workpiece thickness and the manufacturer's bench mounting drawing with available space. Lock the base independently from tightening the jaws. Grooved steel jaws can affect delicate finishes; assess suitable jaw protection rather than assuming a mark-free grip.
Product questions and answers
Can SBV-65 hold a part 2.5 inches thick between its jaws?
The listed maximum opening is 2-1/8 inches. The 2.5-inch figure is jaw width, so it should not be used as the allowable thickness between the jaws.
Does the base swivel through a full circle?
No full-circle swivel is listed. The description specifies 45 degrees left or right; use that range when planning workpiece access.
Do the double lockdowns tighten the workpiece?
They secure the swivel-base position. Tightening the vise jaws with the main handle is a separate action; the two functions should not be confused.
