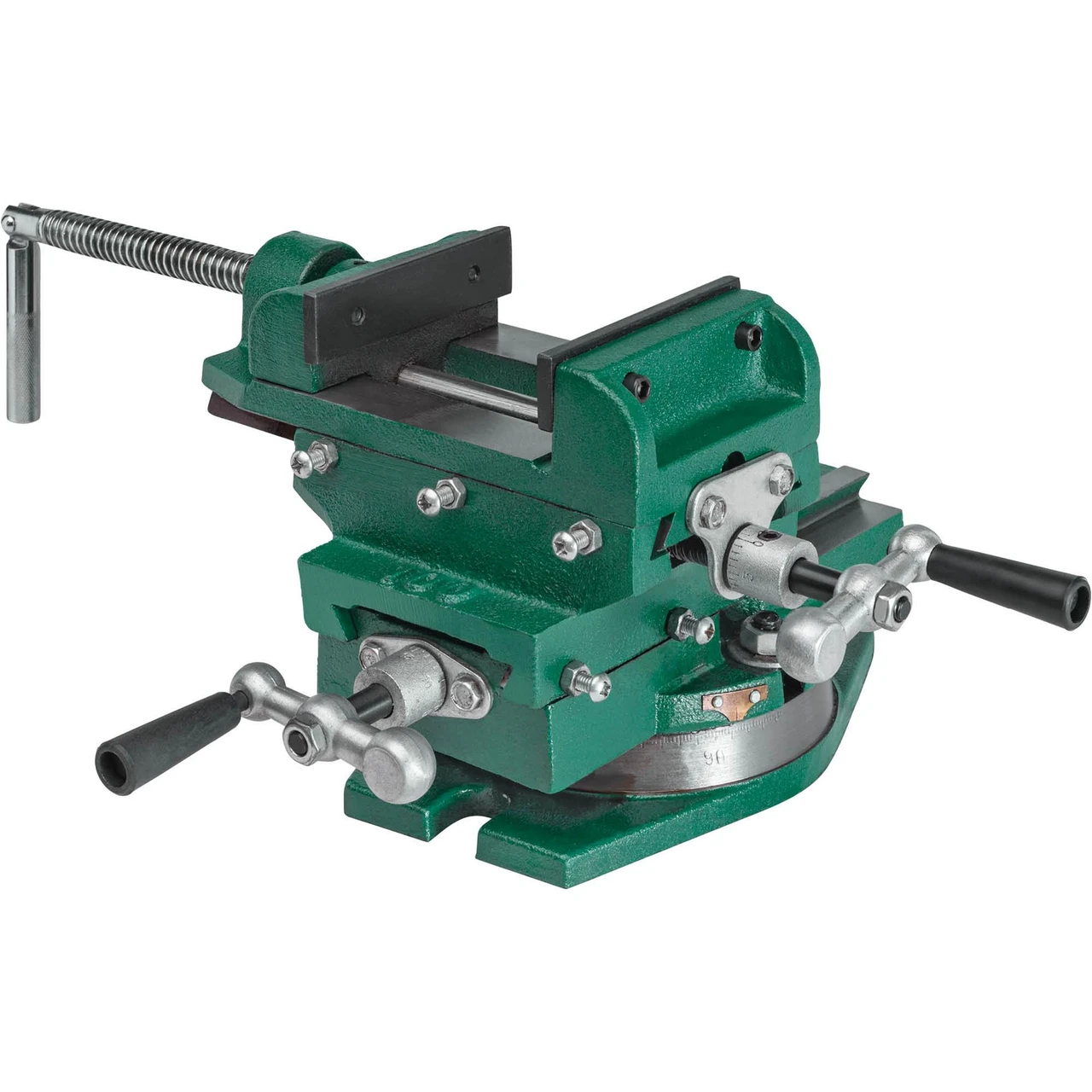

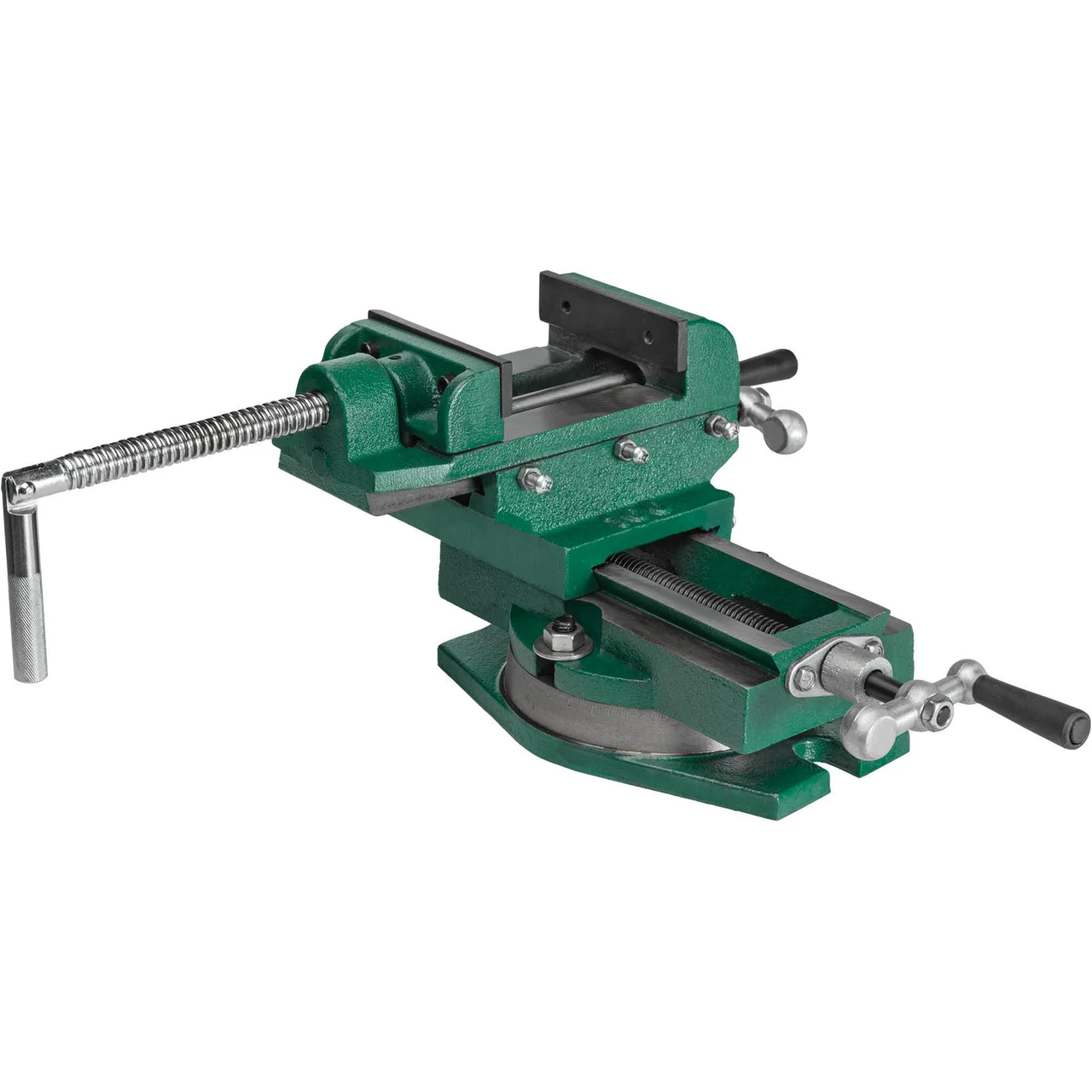

Grizzly Industrial 4" Cross Sliding Vise With Swivel Base (T33427)
Grizzly Industrial 4" Cross Sliding Vise With Swivel Base (T33427) is the perfect addition to your milling or drilling setup. Featuring dual-direction movement, this vise allows precise lateral and longitudinal adjustments without repositioning your workpiece.
The swiveling base rotates a full 360° with an easy-to-read scale, locking firmly in place to support keyway cutting, concentric drilling, and milling tasks. An exclusive slide bar prevents jaw tilting, and the micro-adjustment handwheels provide precise control.
Specifications and Dimensions
Overall height: 5-1/4"
Base dimensions: 5" x 10-1/2"
Mounting slot size: 7/16", spaced 4-3/4"
Jaw depth: 1-3/8"
Jaw opening: 3-1/2"
Bottom slide travel: 4"
Top slide travel: 4"
Key Features and Benefits
Dual-direction movement for precise adjustments
360° swivel base with easy-to-read scale
Adjustable gibs for eliminating slack
Exclusive slide bar prevents jaw tilting
Micro-adjustment handwheels for precision control
Product identification
- Brand: Grizzly Industrial
- Model / MPN: T33427
