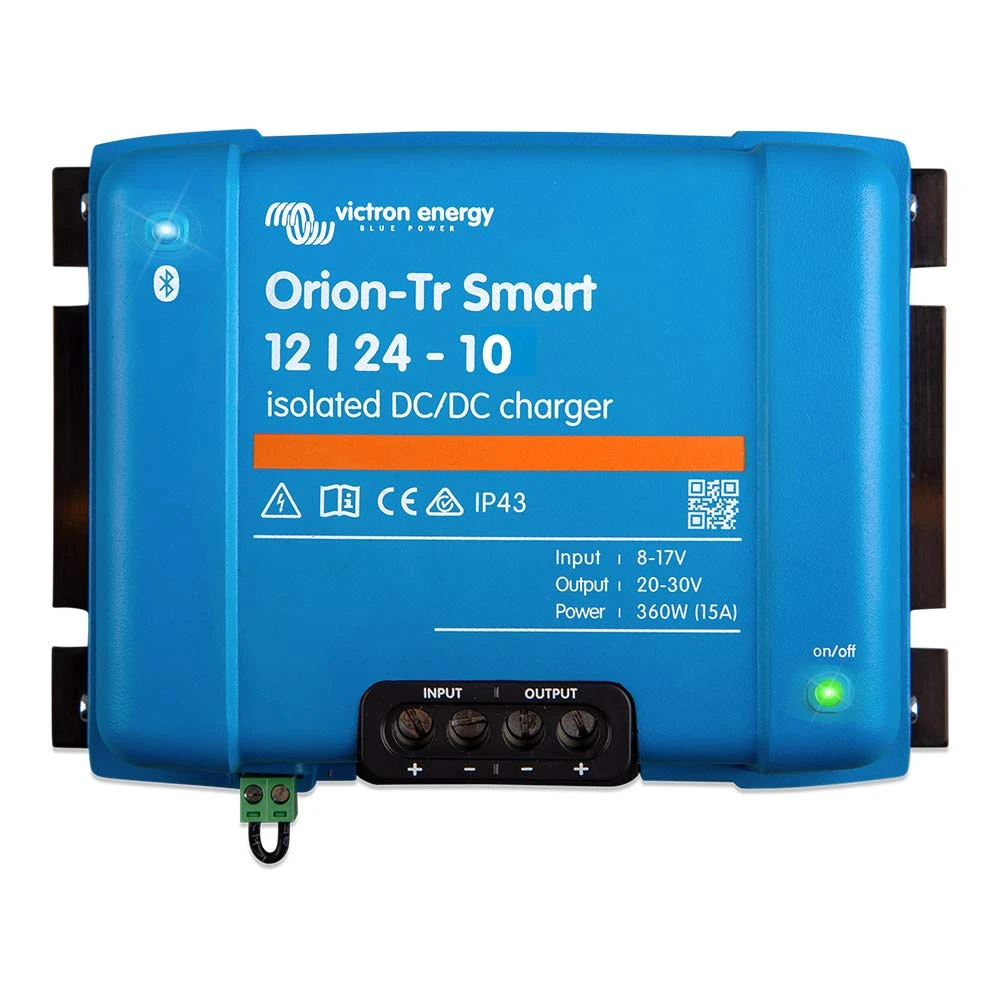

Victron ORI122424120 Energy Orion-Tr Smart 12/24V 10 amp 240-Watt DC-DC Charger
Victron Energy Orion-Tr Smart 12/24-Volt 10 amp 240-Watt DC-DC Charger, Isolated (Bluetooth)
The Orion-Tr Smart DC-DC charger is a professional DC to DC adaptive 3-stage charger with built-in Bluetooth. For use in dual battery systems in vehicles or on boats where the (smart) alternator and the start battery are used to charge the service battery. The unit can be monitored and programmed via Bluetooth and can be remotely controlled via a remote on/off switch and has an engine running detection mechanism. The Orion Tr-Smart charger can be used in 12V or 24V systems and is suitable for both lead acid and lithium batteries. Models are available up to 400W and unlimited multiple units can be connected in parallel to increase output power. Suitable for high temperatures up to 55°C with a full rated output up to 40°C.
Input voltage range: 8-17V
Output voltage adjust range: 20-30V
Cont. output current at nominal output voltage and 40°C: 10A
Maximum output current (10 s) at nominal output voltage minus 20%: 25A
Brand: Victron Energy
Model: ORI122424120
Length (cm): 20.8
Width (cm): 13.6
Height (cm): 9.4
Weight (g): 1352
Product identification
- Brand: Victron
- Model / MPN: ORI122424120
