MidNite Solar Mini Dc Disconnect Power Center With 250 Amp Breaker (MNDC250)
Mini DC Disconnect Power Center with 250 Amp Breaker

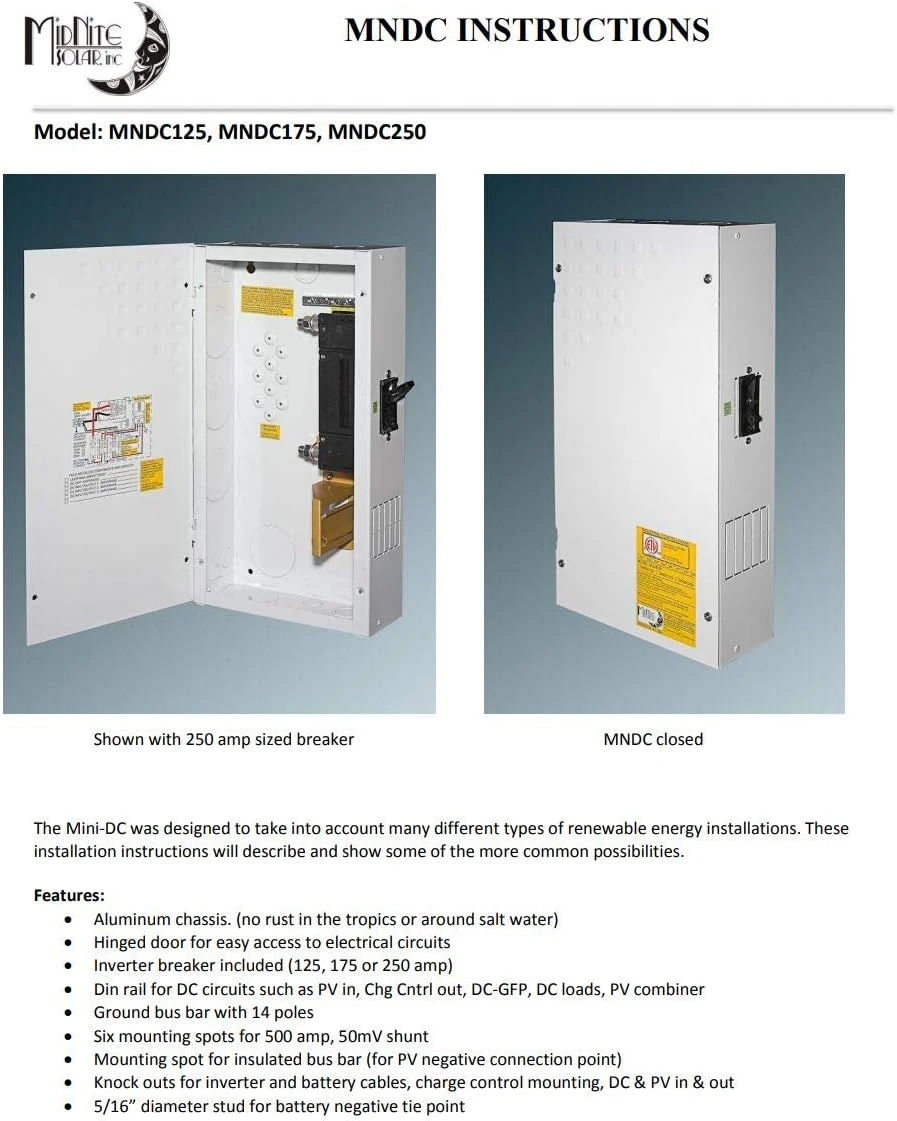

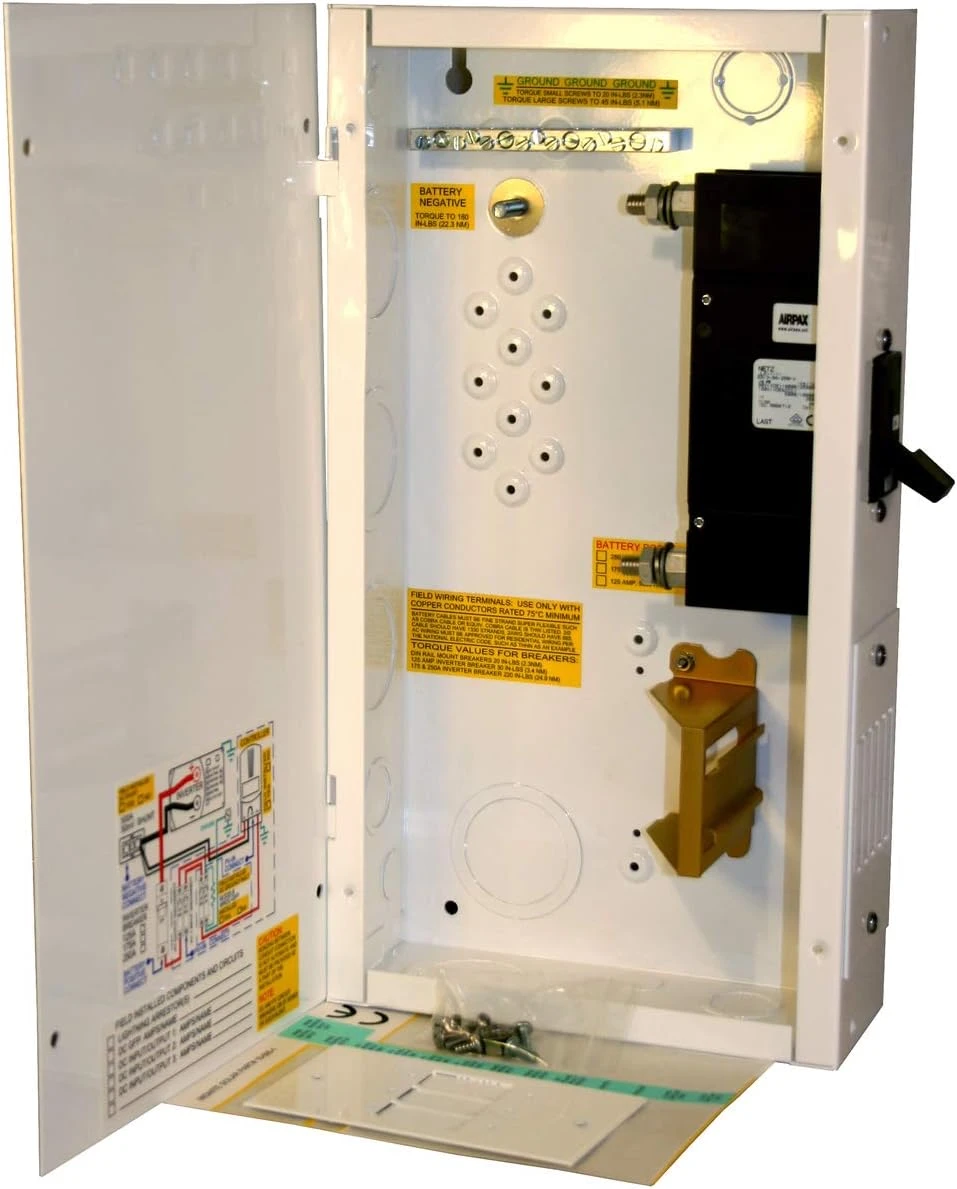

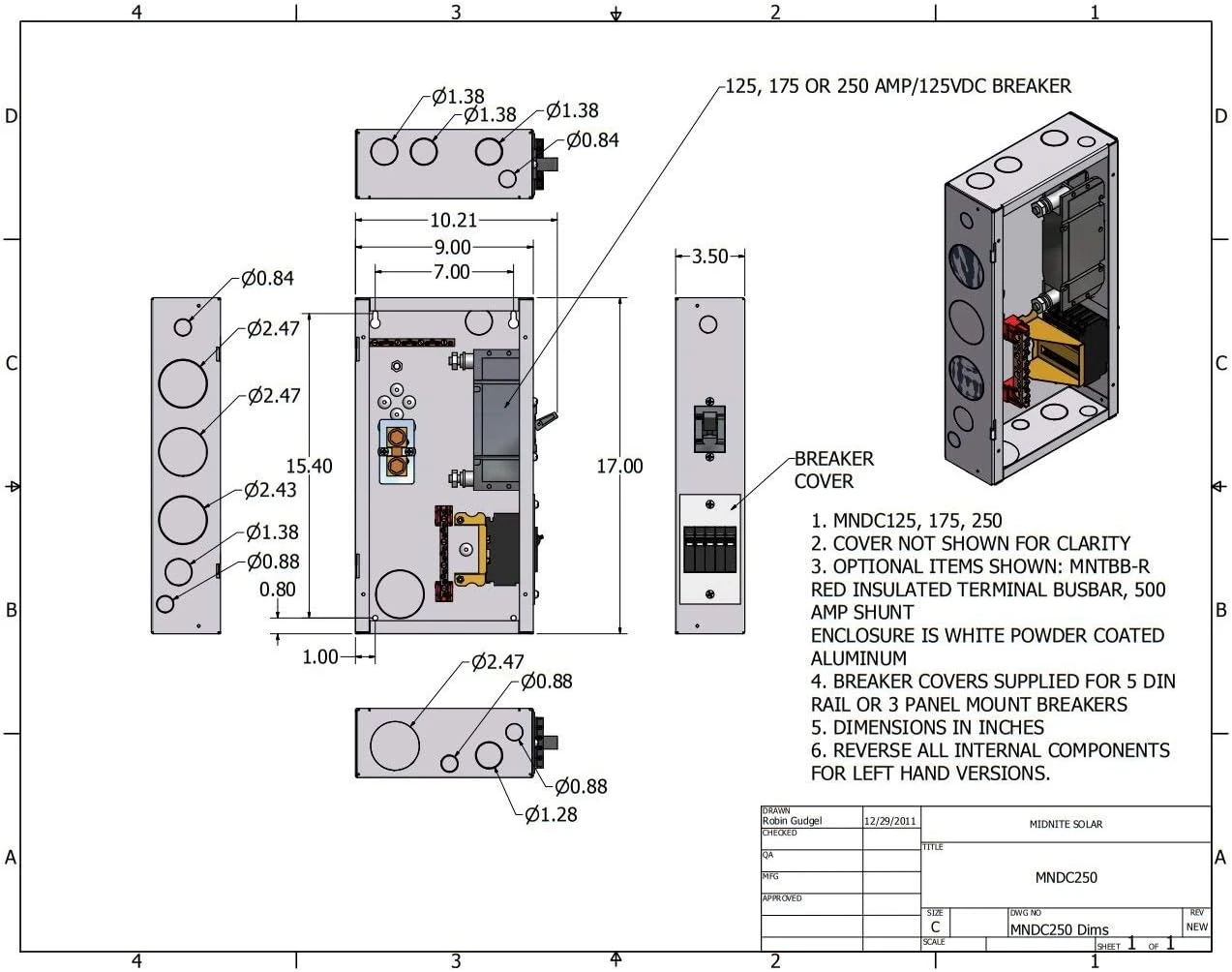

White aluminum chassis with 250A/125VDC breaker. 10" X 5" X 18" The MNDC250 comes with a din rail for 5 additional DC breakers for DC loads, charge controller disconnect, battery status monitor feed etc. included is a ground bus, 5/16" bonding battery minus stud. Mounting holes for a 500 amp shunt are built in. The Mini-DC was designed to take into account many different types of renewable energy installations. The installation instructions will describe and show some of the more common possibilities.
Aluminum chassis. (no rust in the tropics or around salt water)
Hinged door for easy access to electrical circuits
Inverter breaker included (125, 175 or 250 amp)
Din rail for DC circuits such as PV in, Chg Cntrl out, DC-GFP, DC loads, PV combiner
Ground bus bar with 14 poles
Six mounting spots for 500 amp, 50mV shunt
Mounting spot for insulated bus bar (for PV negative connection point)
Knock outs for inverter and battery cables, charge control mounting, DC & PV in & out
5/16 diameter stud for battery negative tie point
Product identification
- Brand: MidNite Solar
- Model / MPN: MNDC250
