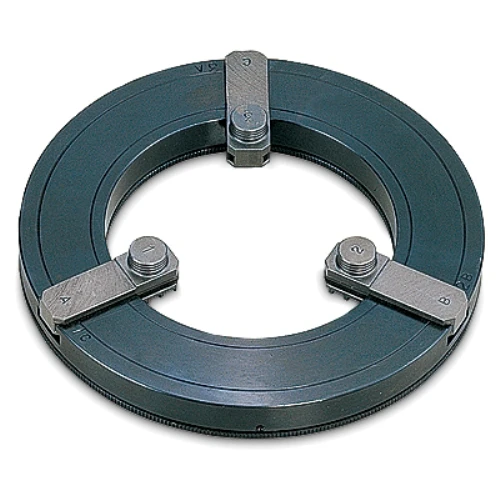

TAIKI 6" Jaw Boring Fixture (3900-4666)

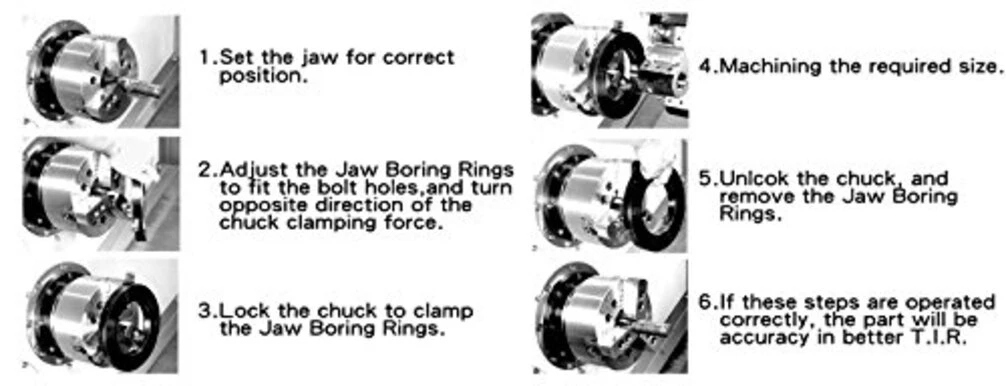

TAIKI 3900-4666 6" Jaw Boring Fixture enables precise and efficient jaw boring by applying equal pressure on all jaws. Designed for CNC lathes, it attaches to the front of jaws without tools, eliminating the need for discs or bungs and allowing through boring. This ensures accurate machining of soft jaws while compensating for jaw lift.
Suitable for CNC lathes and ideal for machining soft jaws.
Attaches to the front of jaws without requiring tools.
Compensates for jaw lift to ensure machining accuracy.
Applies equal pressure on all jaws for consistent results.
Allows through boring of jaws without using discs or bungs.
Fits chuck sizes 5", 6", and 8".
Enhances precision in machining soft jaws.
Eliminates setup complexity with tool-free attachment.
Improves jaw stability and accuracy during boring operations.
Designed for professional and industrial metalworking applications.
Technical Specifications:
Model: 3900-4666
Fits Chuck Sizes: 5", 6", 8"

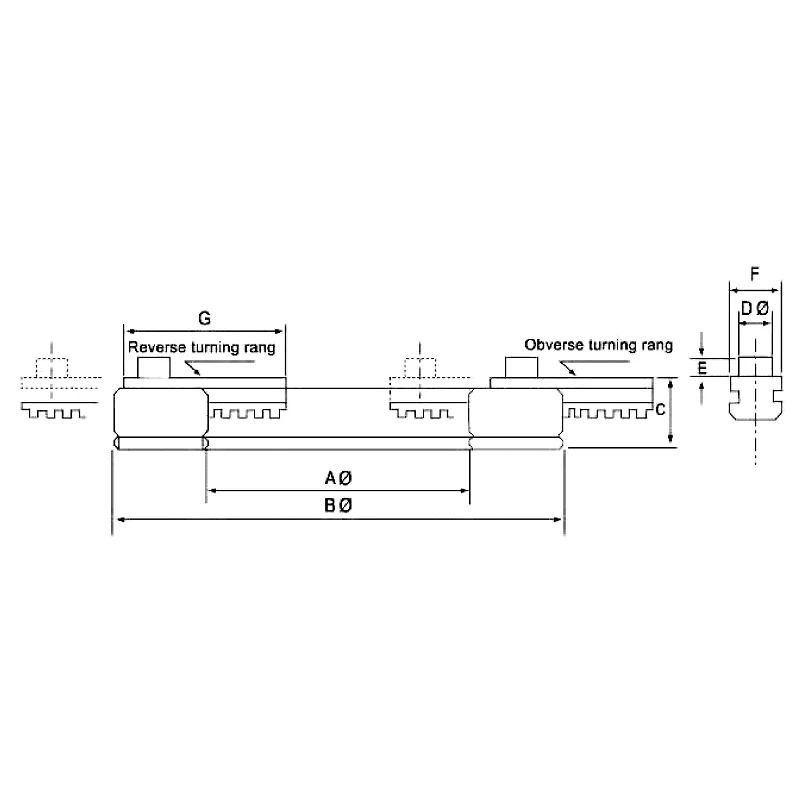

D (Diameter) – E: 0.512" – 0.28"
F – G: 0.748" – 2.4"
Jaw Stroke (Each): 7.4"
Maximum Speed (RPM): 800
Product identification
- Brand: TAIKI
- Model / MPN: 3900-4666
