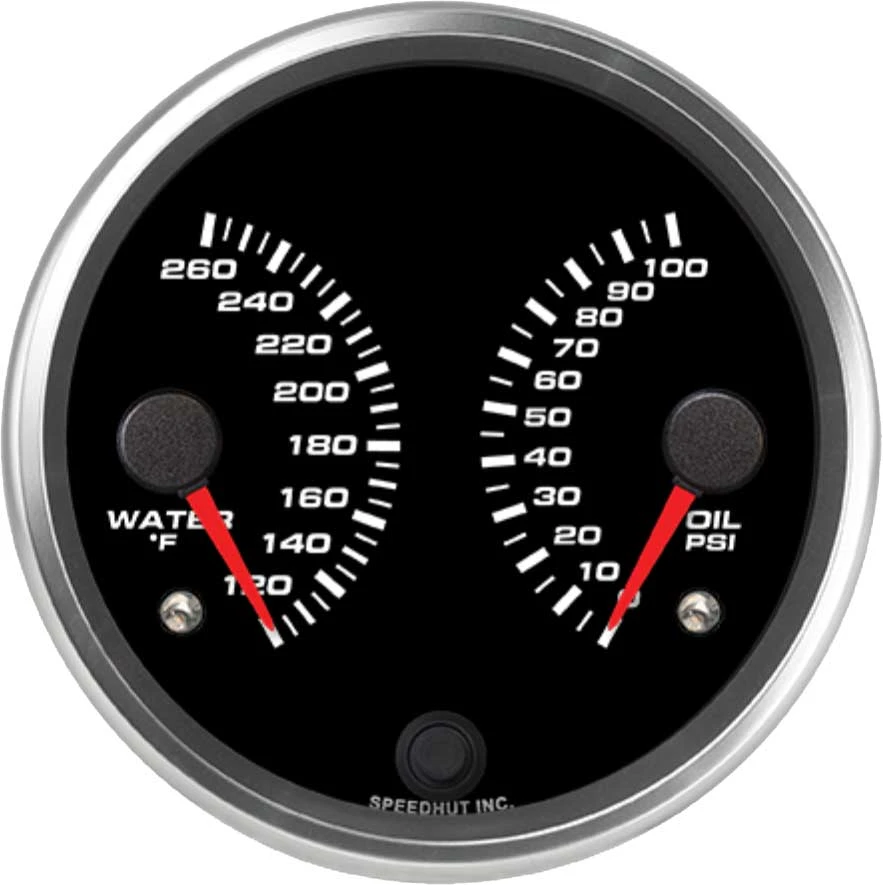

Speedhut 4" Water Temp / Oil Pressure Dual Gauge (R4-DG1-REV)
The Speedhut 4" Water Temp / Oil Pressure Dual Gauge (R4-DG1-REV) is a practical solution for monitoring two essential aspects of your engine's performance in a single, space-saving 4-inch unit. This gauge provides real-time readings of your engine's coolant temperature and oil pressure, allowing you to stay informed about its vital operating conditions. Featuring a clear display and a built-in warning light, this gauge helps you quickly identify potential issues, contributing to the longevity and health of your engine. Designed for straightforward installation with an included mounting ring, it's a valuable addition for any vehicle owner who wants to keep a close watch on their engine's critical parameters.
KEY FEATURES AND BENEFITS:
Dual Monitoring: Combines water temperature (120-260 °F) and oil pressure (0-100 psi) readings in one gauge, saving dashboard space.
Early Warning System: Integrated warning light alerts you to potentially critical temperature or pressure levels, allowing for timely intervention.
Easy Installation: Comes with a gauge mounting ring for simple and secure mounting in a 3.95-inch (100mm) diameter hole.
Clear Readability: Designed for easy interpretation of both temperature and pressure values at a glance.
Standard Measurement: Displays readings in standard units (Fahrenheit and psi), familiar to most users.
Gauge Type: Dual Gauge (Water Temperature and Oil Pressure)
Temperature Range: 120-260 °F
Pressure Range: 0-100 psi
Hole Size: 3.95 inches (100mm)
Warning Light: Yes
– Gauge Mounting Ring
– Pressure Gauge Wiring Harness (3-Wire Cable)
– Speedhut Temperature Sensor
– Temperature Gauge Wiring Harness (2-Wire Cable)
– 3 ft Power & Lighting Harness
– Pressure Sensor – 100 psi
Mount the Gauge: Locate a suitable 3.95-inch (100mm) diameter opening on your dashboard. Insert the Speedhut gauge into the opening and secure it using the provided gauge mounting ring from the back of the dashboard.
Connect the Temperature Sensor: Install the Speedhut temperature sensor in the appropriate location on your engine (usually a coolant passage). Connect the Temperature Gauge Wiring Harness (2-Wire Cable) between the temperature sensor and the designated terminals on the back of the gauge.
Connect the Pressure Sensor: Install the included 100 psi pressure sensor to the engine's oil system at a designated pressure port. Connect the Pressure Gauge Wiring Harness (3-Wire Cable) between the pressure sensor and the corresponding terminals on the back of the gauge.
Connect Power and Lighting: Use the 3 ft Power & Lighting Harness to connect the gauge to a suitable power source (typically 12V) and ground in your vehicle's electrical system. This harness also powers the gauge's internal lighting.
Verify Operation: Once all connections are made, start your vehicle and observe the gauge readings. Ensure the temperature and pressure values are within the expected ranges for your engine's operating conditions. The warning light will illuminate if either reading goes outside of a preset or factory default threshold (if applicable for this specific model's warning light functionality).
BENEFITS OF USING THE SPEEDHUT 4" WATER TEMP / OIL PRESSURE DUAL GAUGE (R4-DG1-REV):
Proactive Engine Monitoring: Allows you to continuously observe critical engine parameters, enabling early detection of potential problems like overheating or low oil pressure before they lead to significant damage.
Space Efficiency: Combines two essential gauges into a single 4-inch unit, reducing clutter on your dashboard and freeing up space for other instruments or controls.
Increased Awareness: Provides you with real-time information about your engine's health, fostering a better understanding of its operating conditions.
Simplified Installation: The inclusion of a mounting ring and necessary wiring harnesses facilitates a relatively straightforward installation process.
Reliable Readings: Designed to provide accurate and consistent measurements of water temperature and oil pressure.
Integrated Dual Display: Presents both water temperature and oil pressure readings simultaneously for easy comparison.
Standalone Warning Indicator: A dedicated light illuminates to signal abnormal temperature or pressure levels.
Compact 4-Inch Design: Fits into standard 4-inch (100mm) gauge openings.
Included Sensors: Comes with the necessary temperature and pressure sensors for immediate installation.
Wiring Harnesses Provided: Includes specific wiring harnesses for both the temperature and pressure sensors, as well as for power and lighting.
Product identification
- Brand: Speedhut
- Model / MPN: R4-DG1-REV
