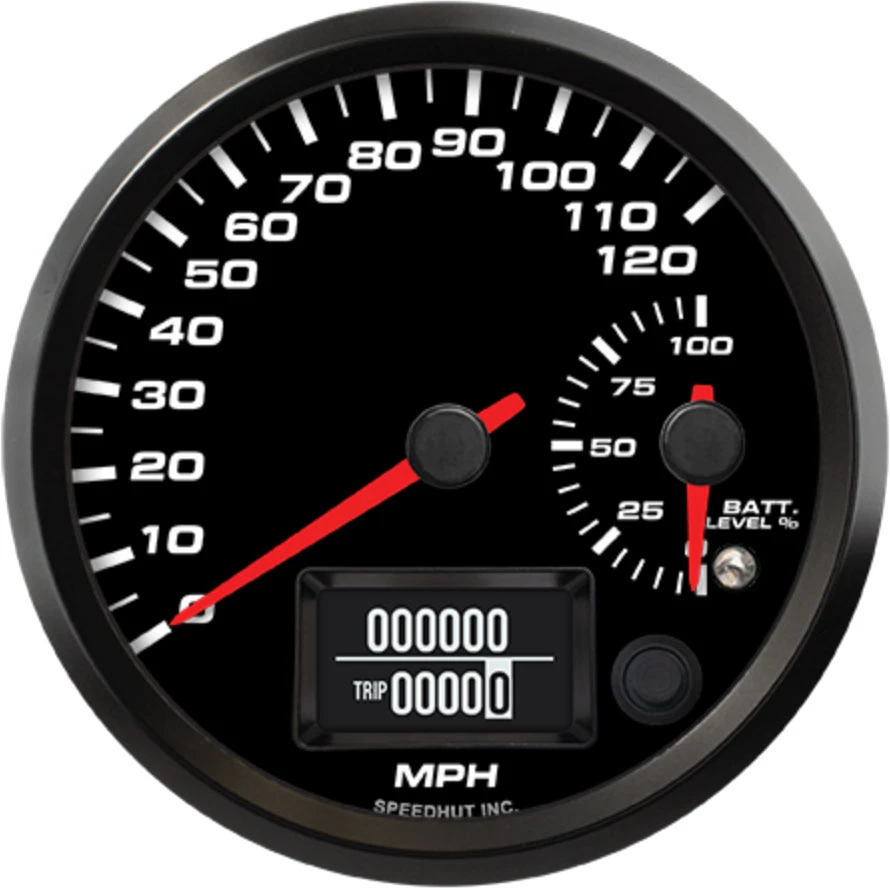

Speedhut 4" EV Orion 120mph Speedometer/Batt Level Gauge (FOR4-DS1-EV)
KEY FEATURES AND BENEFITS:
Dual-function display: Combines 0-120 mph speedometer with 0-100% battery level indicator.
Dashboard efficiency: Merges two critical metrics into one compact gauge to conserve space.
CAN-Bus communication: Operates on 500K baud rate for direct EV system interface without speed sensors.
Low battery alert: Visual warning light activates at 15% charge for added safety.
Easy installation: Includes EV CAN Harness, Power & Lighting Harness, and CAN Jumper Harness.
Gauge Type: Speedometer / Battery Level (State of Charge)
Signal Type: CAN-Bus (500K baud rate)
Speedometer Range: 0-120 MPH
Battery Level Range: 0-100%
Size: 4 inch (100mm)
Hole Size: 3.93 inches (100mm)
Units: Standard (MPH)
Optional: Supports 12 Volt Activated Turn Signals and High Beam Indicators
Included: EV CAN Harness, 3 ft Power & Lighting Harness, EV CAN Jumper Harness
Mount the Gauge: Secure the 4" EV Dual Gauge in a 3.93" (100mm) diameter opening on your vehicle's dashboard using the provided mounting hardware.
Connect the Power Harness: Attach the 3 ft Power & Lighting Harness to a suitable 12V power source and ground in your vehicle. This harness also provides connections for optional LED lighting.
Connect the CAN-Bus Harness: Plug the EV CAN Harness into the designated CAN-Bus port on your electric vehicle's system. Ensure proper connection to the 500K baud rate CAN network.
Utilize the Jumper Harness: If required by your specific EV setup, use the EV CAN Jumper Harness to facilitate the CAN-Bus connection.
Monitor Readings: Once properly connected, the gauge will display your vehicle's speed and battery level in real-time as you drive.
Heed the Warning Light: Pay attention to the low battery warning light, which will illuminate when your battery charge falls below 15%, indicating the need for charging.
BENEFITS OF USING THE SPEEDHUT 4" EV ORION 120MPH SPEEDOMETER/BATT LEVEL GAUGE (FOR4-DS1-EV):
Real-time visibility: Delivers accurate speed and battery level data for smarter EV driving decisions.
Seamless system integration: CAN-Bus communication ensures high compatibility with leading EV platforms like Orion, Zero EV, and Thunderstruck.
Proactive charge management: Low battery warning helps avoid unexpected power loss during travel.
Space-saving design: Combines two instruments into one streamlined gauge to declutter your dashboard.
Simultaneous speed and battery level display up to 120 mph and 100% respectively.
Real-time data through 500K baud CAN-Bus interface.
Low battery warning light activates at 15% charge.
Includes EV CAN Harness, Power & Lighting Harness, and CAN Jumper Harness.
Standard 4-inch diameter fits 3.93" (100mm) dashboard openings.
Supports optional 12V activated indicators (turn signals and high beams).
Designed for Orion, Zero EV, and Thunderstruck EV platforms.
Product identification
- Brand: Speedhut
- Model / MPN: FOR4-DS1-EV
