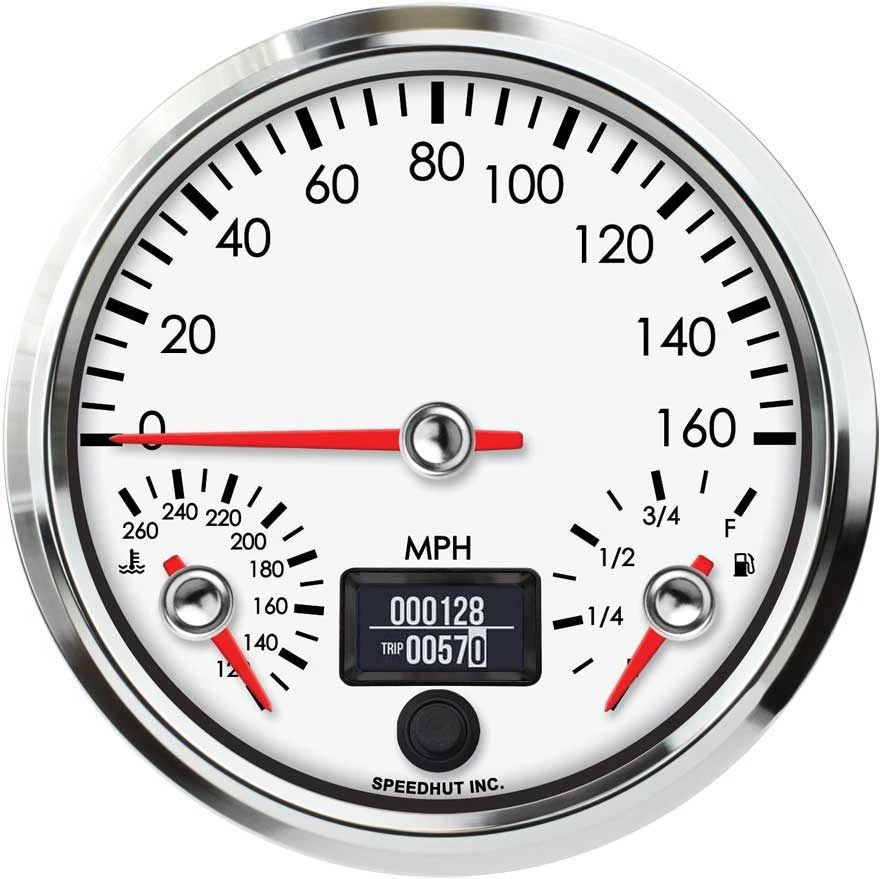

Speedhut 4.5" 160mph Triple Speedo/Fuel Level/WT Temp (L45-TG001-LEG)
The Speedhut 4.5" 160mph Triple Speedo/Fuel Level/WT Temp (L45-TG001-LEG) is a comprehensive instrument designed to provide essential vehicle monitoring in a single, space-efficient 4.5-inch unit. This gauge integrates a precise GPS speedometer, a reliable fuel level indicator, and an accurate water temperature display, offering drivers immediate insight into critical vehicle functions.
KEY FEATURES AND BENEFITS:
Integrated Triple Functionality: Combines a 160 mph GPS speedometer, a fuel level gauge (Empty to Full), and a water temperature gauge (120-260°F) into one unit.
GPS Speedometer Convenience: Utilizes a GPS antenna for speed readings, eliminating the need for mechanical speed sensors and simplifying installation. No calibration for tire size or gear ratios is required.
Worldwide Operation: The GPS speedometer functions globally without any subscription fees. It operates as a receive-only system, ensuring data privacy.
Easy Installation: Features a straightforward 12V power connection and includes all necessary wiring harnesses and sensors. The GPS antenna can be mounted anywhere in the vehicle.
Clear and Instant Readings: Provides real-time measurements of speed, fuel level, and water temperature, allowing for immediate assessment of vehicle performance and engine health.
Space-Saving Design: The 4.5-inch diameter unit fits into a 4.230" (108mm) mounting hole, saving valuable dashboard space compared to individual gauges.
Enhanced Visibility: Equipped with LED lighting for clear readability in various lighting conditions.
Gauge Type: Triple GPS Speedometer
Speedometer Range: 0-160 MPH
Water Temperature Range: 120-260°F
Fuel Level Range: Empty (E) to Full (F)
Gauge Size: 4 1/2 inch
Mounting Hole Size: 4.230 inches (108mm)
GPS Antenna with 9.8 ft long cable and male SMA connector
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Wiring Harness (2-Wire Cable)
Mount the Gauge: Locate a suitable 4.230" (108mm) diameter hole on your dashboard. Insert the Speedhut Triple Gauge into the hole.
Secure the Gauge: Use the included spin-lock ring to securely fasten the gauge in place from the back of the dashboard.
Connect the Power and Lighting Harness: Connect the 3 ft Power & Lighting Harness to a 12V power source in your vehicle. This harness will also power the LED lighting of the gauge.
Install the GPS Antenna: Mount the waterproof GPS antenna in a location with a clear view of the sky. Connect the antenna cable (with the male SMA connector) to the corresponding connector on the back of the gauge.
Install the Temperature Sensor: Mount the Speedhut Temperature Sensor in the appropriate location on your engine to measure water temperature.
Connect the Temperature Sensor Wiring Harness: Connect the 2-Wire Temperature Gauge Wiring Harness between the temperature sensor and the designated terminals on the back of the gauge.
Connect the Fuel Level Wiring Harness: Connect the remaining 2-Wire Wiring Harness to your vehicle's existing fuel level sender unit and the designated terminals on the back of the gauge. Ensure correct polarity and connections as per your vehicle's wiring diagram.
Verify Functionality: Once all connections are made, start your vehicle and check that the speedometer, fuel level gauge, and water temperature gauge are functioning correctly. The speedometer should begin reading once a GPS signal is acquired.
BENEFITS OF USING THE SPEEDHUT 4.5" 160MPH TRIPLE SPEEDO/FUEL LEVEL/WT TEMP (L45-TG001-LEG):
Provides a consolidated view of three critical vehicle parameters, reducing clutter on your dashboard.
Offers highly accurate speed readings thanks to GPS technology, eliminating the inaccuracies associated with mechanical speedometers due to tire size or gear changes.
Simplifies installation, especially the speedometer, as it doesn't require connection to the transmission or wheel sensors.
Ensures reliable speed readings worldwide without the need for any subscription services.
Allows for immediate monitoring of engine temperature, helping to prevent overheating and potential engine damage.
Provides a clear indication of the fuel level, preventing unexpected fuel shortages.
Offers a user-friendly interface with easy-to-read displays, ensuring drivers can quickly access vital information.
Integrated display for GPS speed up to 160 miles per hour.
Indicates fuel level from Empty to Full.
Monitors water temperature in a range of 120 to 260 degrees Fahrenheit.
Utilizes a GPS receiver for accurate and calibration-free speed measurement.
Includes a waterproof GPS antenna with a 9.8 ft cable for flexible mounting.
Features LED backlighting for enhanced visibility day and night.
Designed to fit a standard 4.5-inch gauge opening (4.230" mounting hole).
Comes with a dedicated temperature sensor for precise water temperature readings.
Includes all necessary wiring harnesses for power, lighting, and sensor connections.
Operates on a 12V power supply, common in most vehicles.
Product identification
- Brand: Speedhut
- Model / MPN: L45-TG001-LEG
