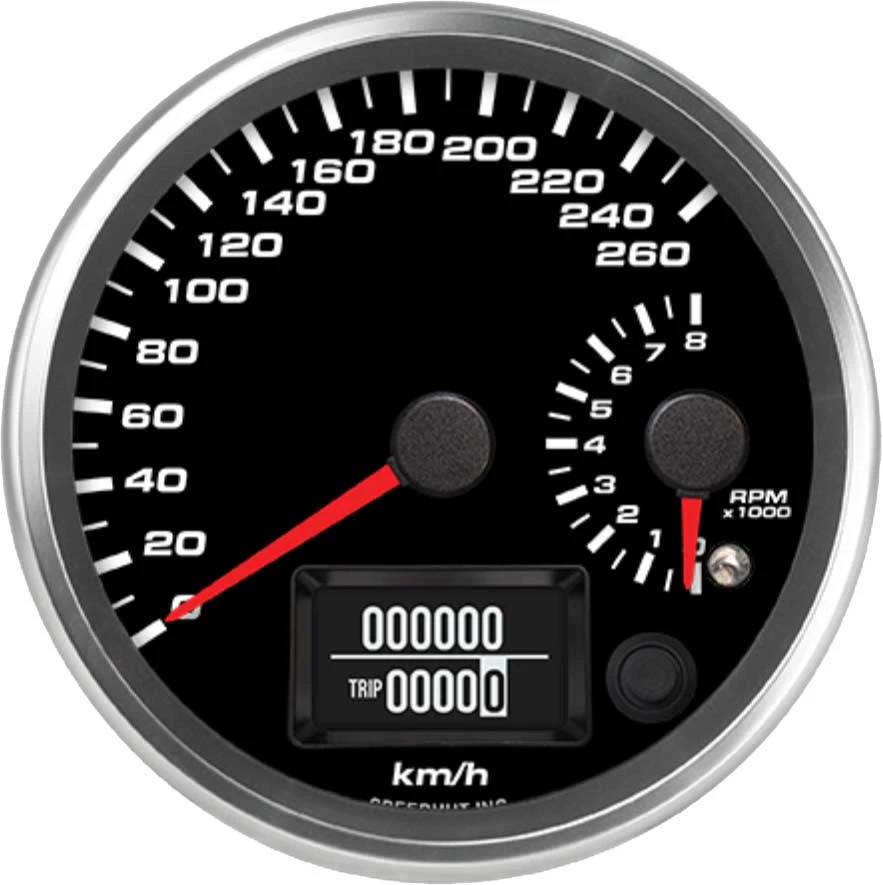

Speedhut 4" 260km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS8-REV)
KEY FEATURES AND BENEFITS:
Accurate GPS Speed: Utilizes GPS technology for precise speed readings up to 260 km/h, with no need for mechanical connections or calibration.
8K Tachometer: Measures engine RPM up to 8,000, compatible with any tach signal over 1 volt from 1/2 to 6 pulses per revolution.
Effortless Installation: Requires a basic 12V power connection and simple mounting with the included spin-lock ring.
Universal Compatibility: Tachometer works with virtually any engine and tach signal source including ignition coils, ECUs, or crankshaft sensors.
Integrated Microprocessor: Ensures accurate data processing for both speed and RPM.
Smooth Pointer Movement: High-torque stepper motor delivers precise needle response under all conditions.
Weather-Resistant Design: Built to withstand harsh environments for consistent performance.
Sleek & Durable: Constructed with a solid billet aluminum bezel that combines style and strength.
Global Functionality: Operates worldwide using free GPS signals with no subscriptions or transmission fees.
Made in the USA: Proudly manufactured in America, ensuring top-quality craftsmanship.
Gauge Type: Dual GPS Speedometer / Tachometer
Speedometer Range: 0-260 km/h
Tachometer Range: 0-8,000 RPM
Gauge Size: 4 inch
Mounting Hole Size: 3.95 inches (100mm)
Tachometer Compatibility: Any engine with a tach signal over 1 volt, 1/2 to 6 pulses per revolution
8 ft Tachometer Harness (1 Wire 2 Pin Connector for LED Lit Gauges)
GPS Antenna with 9.8 ft long cable and male SMA connector
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
Mount the Gauge: Create a 3.95-inch (100mm) hole in your dashboard and secure the gauge using the spin-lock ring.
Connect Power and Lighting: Attach the 3 ft Power & Lighting Harness to a 12V power source and ground. Use this harness for LED illumination as needed.
Install the GPS Antenna: Mount the waterproof antenna in a sky-facing location. Route the 9.8 ft cable to the back of the gauge and connect it using the male SMA connector.
Connect the Tachometer Harness: Locate the tach signal output from your engine (ignition coil, ECU, or crank sensor) and connect to the 8 ft harness, then plug it into the gauge.
Operation: Upon powering the system, the speedometer will start acquiring GPS signals for real-time speed, while the tachometer displays RPM as the engine runs.
BENEFITS OF USING THE SPEEDHUT 4" 260KM/H GPS SPEEDOMETER / 8K TACHOMETER GAUGE (R4-DS8-REV):
Gain precise, real-time speed and engine RPM data in a single integrated gauge.
Enjoy hassle-free installation without calibration or complex sensor setups.
Benefit from global GPS functionality without recurring fees or subscriptions.
Monitor engine performance accurately with the universal tachometer input.
Upgrade your dashboard with a visually appealing, billet aluminum design.
Support American manufacturing and quality assurance.
Satellite-based GPS technology for real-time speed tracking.
Integrated tachometer supporting a wide range of engines and pulse signals.
Simple power and ground wiring for easy speedometer functionality.
Direct tach signal input from ignition coil, ECU, or crank sensor.
Internal microprocessor for precise data accuracy.
Stepper motor for high-response, smooth pointer movement.
Compact, low-profile housing for versatile mounting.
Durable billet aluminum bezel for enhanced aesthetics and protection.
Weather-resistant for dependable outdoor and high-performance use.
Proudly engineered and manufactured in the USA.
Product identification
- Brand: Speedhut
- Model / MPN: R4-DS8-REV
