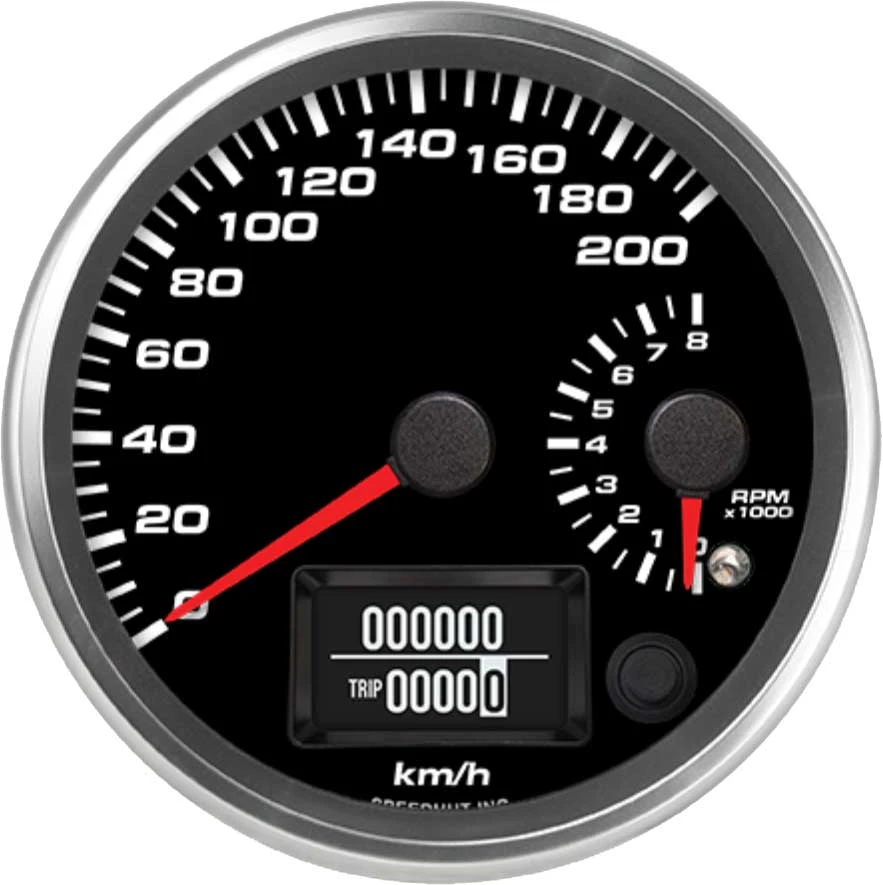

Speedhut 4" 200km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS6-REV)
Experience enhanced driving with the Speedhut 4" 200km/h GPS Speedometer / 8K Tachometer Gauge (R4-DS6-REV). This innovative dual gauge integrates a precise GPS speedometer and a responsive tachometer into a single, easy-to-install 4-inch unit. Utilizing advanced GPS technology, the speedometer delivers real-time, highly accurate speed readings without the complexities of traditional speed sensors or the need for calibration due to tire size or gear ratios.
KEY FEATURES AND BENEFITS:
Accurate Speed Readings: The GPS speedometer provides precise, real-time speed data without the need for calibration or traditional speed sensors.
Effortless Installation: Simple setup requiring only a 12V power source and the included GPS antenna.
Global Functionality: Operates worldwide using free GPS technology, with no subscription fees.
Versatile Tachometer Compatibility: Calibrated to work with any engine that outputs a tach signal over one volt.
High RPM Accuracy: The tachometer guarantees pointer precision, even in rigorous racing environments.
Precise Measurements: An internal microprocessor ensures highly accurate readings for both speed and RPM.
Gauge Type: Dual GPS Speedometer / Tachometer
Speedometer Range: 0-200 km/h
Tachometer Range: 0-8,000 RPM
Gauge Size: 4 inch (100mm)
Mounting Hole Size: 3.95 inches (100mm)
Compatibility: 12V DC Systems; Tach signal over 1 volt, 1/2 to 6 pulses per revolution
Included: GPS Antenna with 9.8 ft cable and male SMA connector, 3 ft Power & Lighting Harness, 8 ft Tachometer Harness (1 Wire 2 Pin Connector)
Mount the Gauge: Locate a suitable 3.95" (100mm) diameter hole on your dashboard or mounting surface. Insert the gauge into the hole and secure it using the spin-lock ring from the back.
Connect the Power: Connect the red wire from the 3 ft Power & Lighting Harness to a 12V positive power source in your vehicle. Connect the black wire to a suitable ground.
Connect Illumination (Optional): If your harness has additional wires for lighting (typically orange or similar), connect these to your vehicle's lighting circuit if desired.
Mount the GPS Antenna: Choose a location for the GPS antenna that has a clear line of sight to the sky. Securely mount the antenna using its provided mounting method.
Connect the GPS Antenna: Connect the male SMA connector of the GPS antenna cable to the corresponding connector on the back of the speedometer.
Connect the Tachometer Signal Wire: Locate your engine's tachometer signal output wire. Connect this wire to the single wire on the 8 ft Tachometer Harness. The second pin on the harness is for ground; connect this to a suitable ground if necessary for your specific engine setup.
Start Your Vehicle: Turn on your vehicle's ignition. The speedometer should begin acquiring a GPS signal and display your speed. The tachometer should display the engine's RPM as it idles.
BENEFITS OF USING THE SPEEDHUT 4" 200KM/H GPS SPEEDOMETER / 8K TACHOMETER GAUGE (R4-DS6-REV):
Eliminate the need for mechanical speed sensors, simplifying installation and reducing potential failure points.
Achieve highly accurate speed readings regardless of tire size, gear ratios, or vehicle modifications.
Enjoy seamless operation worldwide without the hassle of subscriptions or calibrations.
Benefit from a tachometer that is broadly compatible with various engine types.
Gain precise and reliable engine RPM data, crucial for performance monitoring and tuning.
Experience a straightforward installation process thanks to the included components and mounting system.
Enhance your vehicle's interior with a durable and aesthetically pleasing gauge featuring a billet aluminum bezel.
Support American manufacturing and benefit from high-quality craftsmanship.
Reliable Performance: The high-torque stepper motor ensures accurate and smooth pointer movement under all conditions.
Easy Mounting: Features a slim case design and a convenient spin-lock ring for quick and secure installation in a 3.95" (100mm) hole.
Robust Construction: The solid billet aluminum bezel adds to the gauge's durability and aesthetic appeal.
Weather Resistance: Designed to withstand various environmental conditions, ensuring long-lasting performance.
Quality Craftsmanship: Proudly made in the USA, guaranteeing high standards of manufacturing.
Product identification
- Brand: Speedhut
- Model / MPN: R4-DS6-REV
