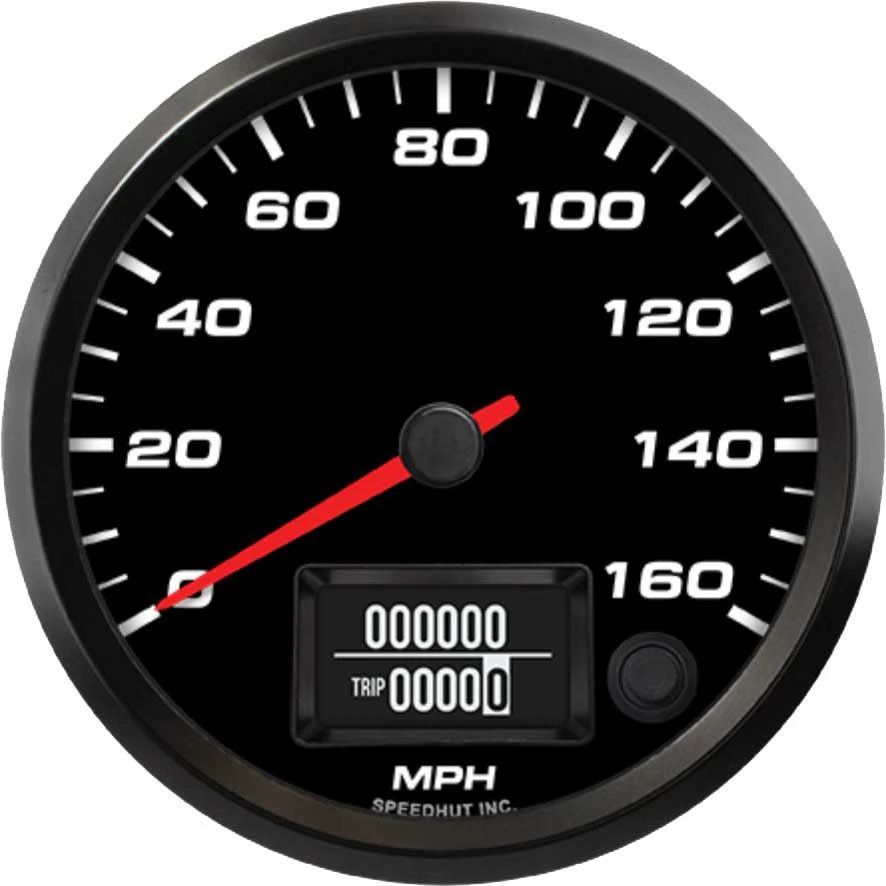

Speedhut 4-1/2" 160 mph EV Speedometer Gauge (FOR45-S2-EV)
The Speedhut 4-1/2" 160 mph EV Speedometer Gauge (FOR45-S2-EV) is a specialized instrument designed to provide accurate and reliable speed readings for electric vehicles. Engineered for seamless integration with your EV's existing systems, this gauge offers a modern and effective solution for monitoring your vehicle's speed performance. By directly communicating with your EV's CAN-bus network, it eliminates the complexities of traditional speed sensors, offering a streamlined and precise measurement.
KEY FEATURES AND BENEFITS:
CAN-bus Protocol: Uses the 500K baud rate CAN-bus protocol to pull real-time speed data directly from the ECU.
Sensor-Free Operation: Eliminates the need for traditional external speed sensors.
Ease of Installation: Includes EV CAN, EV CAN jumper, and power/lighting harnesses for simple integration.
Wide Speed Range: Displays speeds from 0 to 160 mph, ideal for EV performance monitoring.
Optional Features: Allows integration of 12 Volt activated turn signal and high beam indicators.
Gauge Type: Speedometer
Signal Type: CAN-Bus (500K baud rate)
Range: 0-160 MPH
Size: 4 1/2 inch
Hole Size: 4.230 inches (108mm)
Standard or Metric: Standard
Turn Signals and High Beam (optional): 12 Volt Activated
EV CAN Jumper Harness
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Connect the EV CAN Harness: Plug the provided EV CAN harness into the designated port on the speedometer gauge.
Connect the EV CAN Jumper Harness: Locate your EV’s CAN-bus connection point and connect the jumper harness securely.
Connect the Power and Lighting Harness: Wire the 3 ft Power & Lighting Harness to your vehicle’s power and ground sources to activate the gauge and LED lighting.
Mount the Gauge: Install the gauge in a 4.230-inch (108mm) hole on your dashboard and secure it with mounting hardware.
Verify Functionality: Power on your vehicle and check that the gauge correctly displays speed data.
BENEFITS OF USING THE SPEEDHUT 4-1/2" 160 MPH EV SPEEDOMETER GAUGE (FOR45-S2-EV):
Ensures highly accurate and real-time speed readings via CAN-bus connectivity.
Simplifies installation with included EV-specific harnesses.
Reduces clutter and complexity by removing the need for external speed sensors.
Optional turn signal and high beam indicators enhance instrument cluster functionality.
Designed specifically for electric vehicles for optimal integration and performance tracking.
Direct communication with the EV's CAN-bus system for precise speed data.
Eliminates the need for external speed sensors.
Designed specifically for electric vehicle applications.
Clear and easy-to-read 160 mph display.
Includes necessary EV CAN and power/lighting harnesses for installation.
Option for integrated 12 Volt activated turn signal indicators.
Option for integrated 12 Volt activated high beam indicator.
Compact 4-1/2 inch size for versatile mounting options.
Product identification
- Brand: Speedhut
- Model / MPN: FOR45-S2-EV
