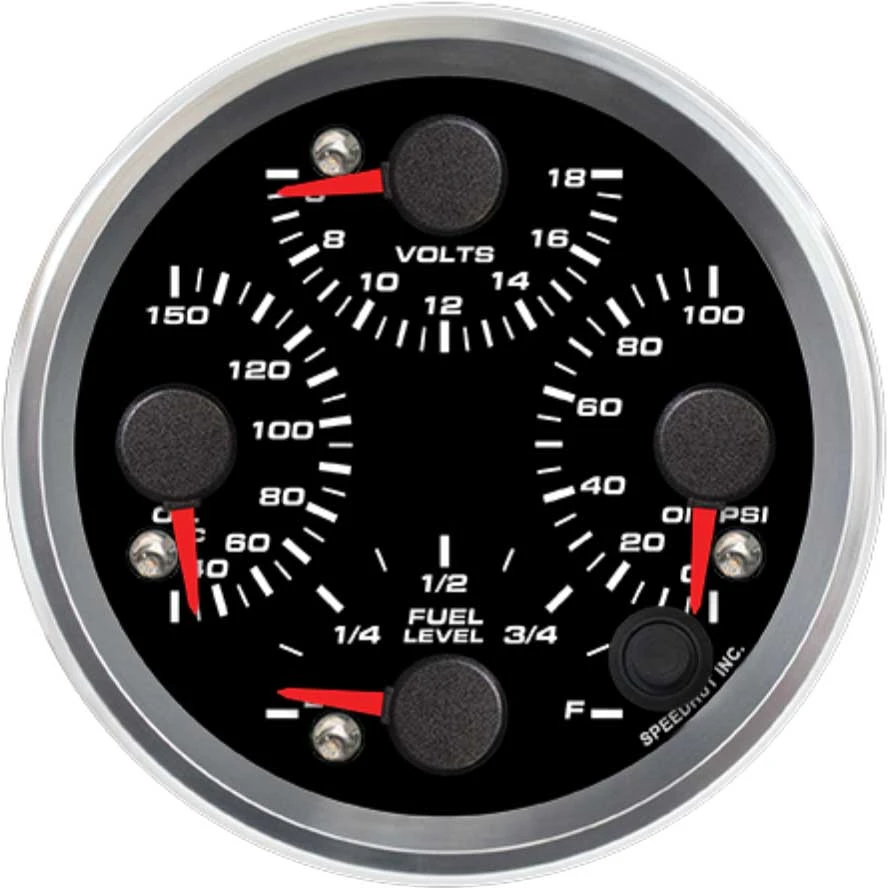

Speedhut 3-3/8" Quad Met Oil Temp/Volt/Oil PSI/Fuel Level (R3-QG3-REV)
The Speedhut 3-3/8" Quad Met Oil Temp/Volt/Oil PSI/Fuel Level (R3-QG3-REV) is a compact and efficient instrument designed to provide a comprehensive overview of your vehicle's critical operating parameters. This single 3 3/8-inch (83mm) gauge consolidates four essential readings: metric oil temperature, voltage, oil pressure (in PSI), and fuel level. Engineered for accuracy and ease of installation, this gauge helps drivers maintain a close watch on their engine's health and fuel status, all within a clean and organized dashboard layout.
KEY FEATURES AND BENEFITS:
Space-saving solution: Integrates oil temperature, voltage, oil pressure, and fuel level into one gauge.
Real-time monitoring: Allows for simultaneous observation of multiple engine parameters.
Easy installation: Includes oil pressure and temperature sensors along with wiring harnesses.
Integrated warning light: Provides immediate alerts for abnormal readings.
Fuel sender compatibility: Works with most fuel level sensors up to 300 ohms.
Gauge Type: Quad Gauge
Range: 6-18 volts (Voltage)
Range: 40-150 °C (Oil Temperature)
Range: Empty to Full (Fuel Level)
Range: 0-100 psi (Oil Pressure)
Size: 3 3/8 inch
Hole Size: 3.28 inch (83mm)
Standard or Metric: Metric (Oil Temperature)
Warning Light: Yes
Fuel level signal type: 300 ohms or less. (Most Fuel Level Sensors)
Pressure Sensor – 100 psi
Wiring Harness (2-Wire Cable)
Pressure Gauge Wiring Harness (3-Wire Cable)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
Mount the Gauge: Locate a suitable 3.28-inch (83mm) diameter opening on your dashboard. Insert the Speedhut Quad Gauge into this opening and secure it using the included spin-lock ring.
Connect the Power and Lighting Harness: Attach the 3 ft Power & Lighting Harness to the designated terminals on the back of the gauge. Connect the power wire to a 12V power source, the ground wire to a suitable ground point, and the lighting wire to your vehicle's lighting circuit if desired.
Install the Pressure Sensor: Install the included 100 psi pressure sensor into an appropriate port on your engine.
Connect the Pressure Sensor Wiring Harness: Connect the 3-wire harness between the sensor and the gauge.
Install the Temperature Sensor: Install the Speedhut temperature sensor into a suitable port, such as the oil pan.
Connect the Temperature Sensor Wiring Harness: Use the 2-wire harness to connect the sensor to the gauge.
Connect the Fuel Level Wiring: Connect the 2-wire cable to your vehicle's fuel level sending unit (300 ohms or less) and the gauge.
Verify Connections: Ensure all connections are secure and properly made.
Test the Gauge: Turn on the ignition and observe the readings for all parameters.
BENEFITS OF USING THE SPEEDHUT 3-3/8" QUAD MET OIL TEMP/VOLT/OIL PSI/FUEL LEVEL (R3-QG3-REV):
Consolidated monitoring: Combines four vital readings in one easy-to-read gauge.
Dashboard efficiency: Saves space and reduces clutter by replacing multiple gauges.
Enhanced driver awareness: Provides real-time data on critical engine metrics.
Proactive maintenance: Helps detect potential issues early, reducing costly repairs.
Simplified installation: All necessary sensors and harnesses included.
Wide compatibility: Works with most fuel level sensors under 300 ohms.
Visual alert: Integrated warning light for immediate notification of out-of-range readings.
Four-in-One Display: Shows metric oil temperature, voltage, oil pressure, and fuel level in a single, compact unit.
Direct Sensor Connection: Comes with dedicated sensors for oil pressure and temperature for accurate readings.
Simplified Wiring: Includes all necessary wiring harnesses for straightforward installation.
Space-Saving Design: Consolidates multiple gauges, freeing up valuable dashboard real estate.
Clear Metric Readout: Displays oil temperature in Celsius for precise monitoring.
Broad Fuel Sender Compatibility: Designed to work with most fuel level sensors that have an ohm range of 300 ohms or less.
Easy Mounting: Utilizes a spin-lock ring for secure and hassle-free installation in a standard 3.28-inch (83mm) dash opening.
Product identification
- Brand: Speedhut
- Model / MPN: R3-QG3-REV
