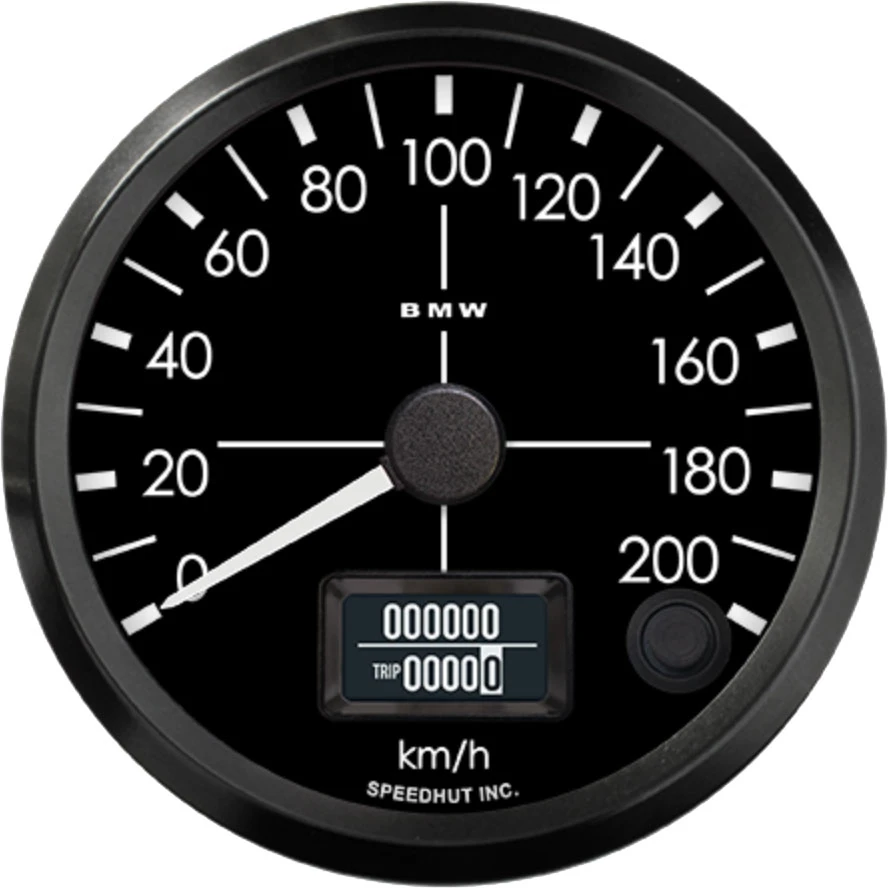

Speedhut 3-3/8" BMW Design 200 km/h GPS Speedometer (R3-S2-BMW)
KEY FEATURES AND BENEFITS:
Offers precise speed measurement using advanced GPS technology, eliminating the need for traditional speed sensors.
Simplifies installation requiring only a 12V power connection and mounting of the waterproof GPS antenna.
Does not require complex calibration involving tire sizes or gear ratios.
Features a BMW-inspired design with a metric speed range up to 200 km/h.
Constructed with a solid billet aluminum bezel for durability and weather resistance.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0-200 km/h
Size: 3 3/8 inch (85mm)
Hole Size: 3.3 inches (84mm)
Standard or Metric: Metric (km/h)
Gauge Mounting Ring: Included
Included with Purchase:
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
GPS Antenna with 9.8 ft long cable and male SMA connector
Mount the Gauge: Locate a suitable 3 3/8 inch (84mm) diameter opening in your vehicle's dashboard. Secure the speedometer using the included gauge mounting ring and spin-lock mechanism.
Connect Power: Connect the red wire from the provided 3 ft Power & Lighting Harness to a 12V DC power source in your vehicle. Connect the black wire to a suitable ground. Refer to your vehicle's wiring diagram if needed.
Mount the GPS Antenna: Choose a location for the GPS antenna that offers a clear, unobstructed view of the sky. Ensure the mounting surface is clean and secure. The antenna is waterproof, allowing for flexible placement.
Connect the GPS Antenna: Connect the male SMA connector on the 9.8 ft cable of the GPS antenna to the corresponding connector on the back of the speedometer.
Optional Remote Button: If the gauge face and quad buttons will be difficult to access once installed, consider requesting a remote button from Speedhut for easier control of any potential features or settings.
Operation: Once power is supplied and the GPS antenna has acquired a satellite signal, the speedometer will begin displaying your vehicle's speed in kilometers per hour. No further calibration is typically required.
BENEFITS OF USING THE SPEEDHUT 3-3/8" BMW DESIGN 200 KM/H GPS SPEEDOMETER (R3-S2-BMW):
Experience highly accurate speed readings without the complexities of traditional speed sensor wiring.
The GPS-based system offers a clean and straightforward installation process, suitable for a wide range of vehicles.
The BMW-inspired design adds a touch of style to your dashboard while providing essential speed information in a clear and easily readable format.
Enjoy the freedom of global operation without any subscription fees, thanks to the reliance on free GPS technology.
Provides precise speed measurements using an internal GPS receiver.
Ensures accurate pointer movement under all driving conditions with a high-torque stepper motor.
Offers a streamlined installation process with its slim case and spin-lock ring.
Enhances the gauge's durability and aesthetic appeal with a solid billet aluminum outer ring.
Designed to withstand various weather elements for reliable performance.
Guaranteed against manufacturing defects for the life of the product.
Manufactured in the USA, reflecting high standards of quality.
Features an internal microprocessor for consistent and reliable readings.
Operates globally without the need for any ongoing subscriptions.
Equipped with a user-friendly LCD screen for potential additional information or settings.
Product identification
- Brand: Speedhut
- Model / MPN: R3-S2-BMW
