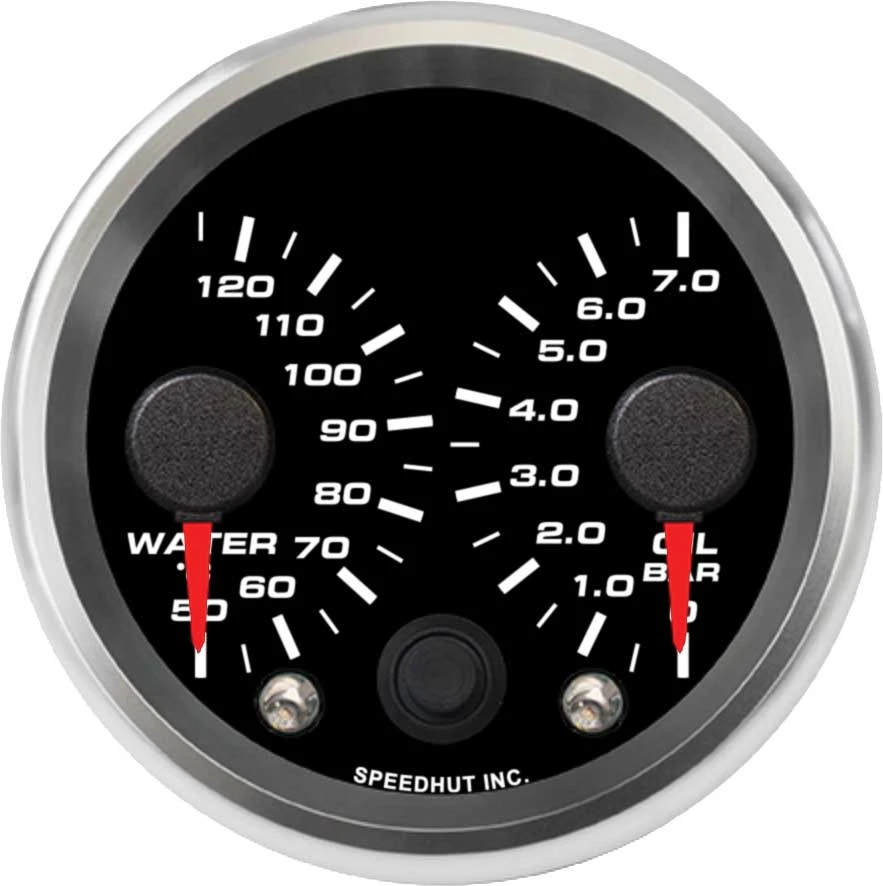

Speedhut 2-5/8" Met Dual Water Temp / Oil Bar Gauge (R25-DG10-REV)
The Speedhut 2-5/8" Met Dual Water Temp / Oil Bar Gauge (R25-DG10-REV) offers a convenient and precise way to monitor two critical aspects of your engine's performance: coolant temperature and oil pressure. This dual gauge presents both readings in a single, easy-to-read 2 5/8" (68mm) metric display, helping you stay informed about your engine's vital signs.
KEY FEATURES AND BENEFITS:
Dual Functionality: Monitors both water temperature (50-125°C) and oil pressure (0-7.0 bar) simultaneously, saving space and providing comprehensive engine information.
Metric Units: Displays readings in Celsius for temperature and bar for pressure, catering to users who prefer or require metric measurements.
Integrated Warning Light: Features a built-in warning light that can be connected to trigger under user-defined conditions, providing an immediate visual alert for potential issues.
Complete Installation Kit: Ships with all necessary sensors (temperature and pressure), wiring harnesses, and a mounting ring, ensuring a straightforward installation process.
Standard Size: The 2 5/8" (68mm) size is a common aftermarket gauge dimension, offering versatile mounting options.
Gauge Type: Dual Gauge
Combo Options: Water Temperature and Oil Pressure (Bar)
Water Temperature Range: 50-125 °C
Oil Pressure Range: 0-7.0 bar
Size: 2 5/8 inch (68mm)
Hole Size Required: 2.67 inches (68mm)
Warning Light: Yes
Mounting Ring: Included
Included with Purchase:
Speedhut Temperature Sensor
3 ft Power & Lighting Harness
Temperature Gauge Wiring Harness (2-Wire Cable)
Pressure Sensor (100 psi max)
Pressure Gauge Wiring Harness (3-Wire Cable)
Mount the Gauge: Secure the 2 5/8" gauge in a suitable location using the included mounting ring. Ensure the 2.67" (68mm) hole size is appropriate.
Connect the Power and Lighting: Utilize the 3 ft Power & Lighting Harness to provide power to the gauge and illumination for the display.
Install the Temperature Sensor: Mount the provided Speedhut Temperature Sensor in the designated location on your engine's cooling system. Connect it to the gauge using the Temperature Gauge Wiring Harness (2-Wire Cable).
Install the Pressure Sensor: Mount the included Pressure Sensor in the appropriate port on your engine's oil system. Connect it to the gauge using the Pressure Gauge Wiring Harness (3-Wire Cable).
Wire the Warning Light (Optional): Connect the warning light wire to a trigger source according to your desired alert conditions.
Verify Readings: Once all connections are made, start your engine and check that the gauge is displaying accurate readings for both water temperature and oil pressure.
BENEFITS OF USING THE SPEEDHUT 2-5/8" MET DUAL WATER TEMP / OIL BAR GAUGE (R25-DG10-REV):
Simultaneous Monitoring: Allows convenient observation of both water temperature and oil pressure for proactive engine management.
Early Problem Detection: Helps prevent costly engine damage by catching abnormalities early.
Metric Readings: Appeals to users who prefer Celsius and bar units for compatibility or preference.
Complete Installation Package: All sensors and wiring are included for a hassle-free setup.
Warning Light Function: Offers an extra layer of safety through immediate alerts of out-of-range conditions.
Combined Display: Presents both water temperature and oil pressure readings in a single, space-saving unit.
Visual Alert System: Integrated warning light for immediate notification of abnormal conditions.
Comprehensive Kit: Includes all necessary sensors and wiring for a complete installation.
Direct Sensor Integration: Designed for seamless connection with the included Speedhut sensors.
Illuminated Display: Features backlighting via the included power and lighting harness for enhanced visibility.
Product identification
- Brand: Speedhut
- Model / MPN: R25-DG10-REV
