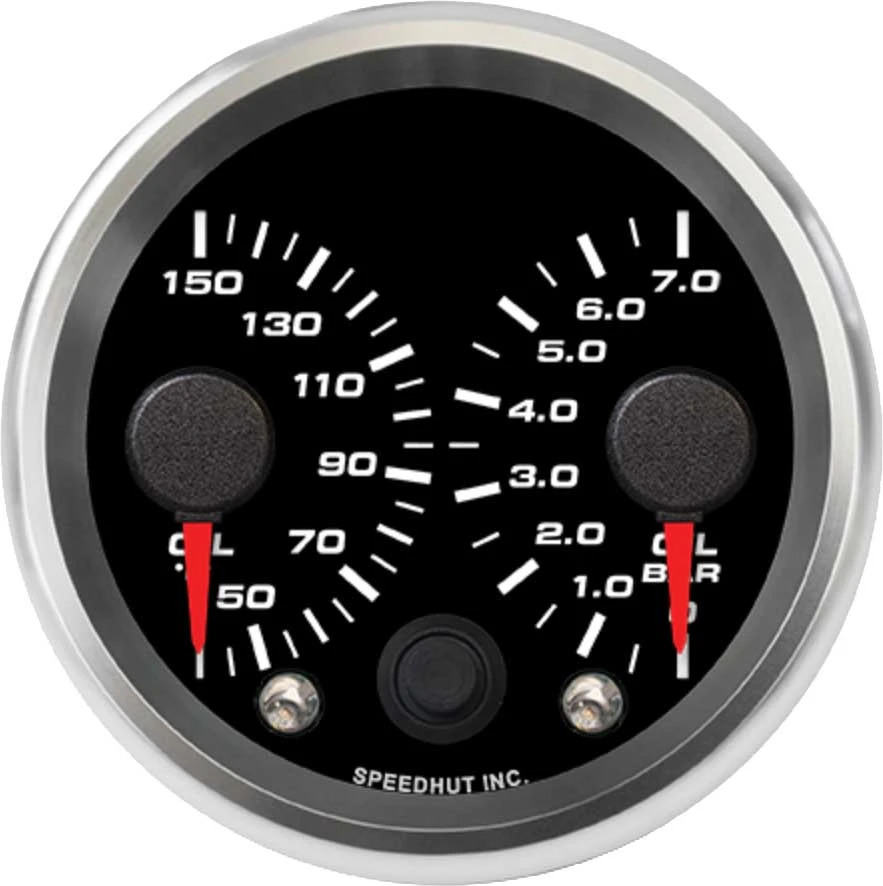

Speedhut 2-5/8" Dual Metric Oil Temp / Oil Bar Gauge (R25-DG11-REV)
The Speedhut 2-5/8" Dual Metric Oil Temp / Oil Bar Gauge (R25-DG11-REV) offers a comprehensive solution for monitoring two critical aspects of your engine's health: oil temperature and oil pressure. This dual gauge presents both readings in metric units, providing precise data in an easy-to-read format. Its design incorporates user-friendly features and includes all the necessary components for installation, making it an ideal choice for automotive enthusiasts and professionals alike.
KEY FEATURES AND BENEFITS:
Dual Monitoring: Simultaneously displays oil temperature (40-150 °C) and oil pressure (0-7.0 bar).
Integrated Warning Light: Programmable alert for exceeding preset temperature or pressure limits.
Standard Gauge Size: Fits standard 2-5/8 inch openings with included mounting ring for secure installation.
LED Backlighting: Clear and bright illumination for enhanced visibility in all lighting conditions.
Complete Installation Kit: Includes sensors and wiring harnesses for hassle-free setup.
Gauge Type: Dual Gauge
Combo Options: Oil Temperature and Oil Pressure
Oil Temperature Range: 40-150 °C
Oil Pressure Range: 0-7.0 bar
Standard or Metric: Metric
Size: 2 5/8 inch (66.7 mm)
Hole Size: 2.67 inches (68 mm)
Warning Light: Yes
Gauge Mounting Ring: Included
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
Pressure Sensor – 100 psi
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Pressure Gauge Wiring Harness (3-Wire Cable)
Mount the Gauge: Secure the 2-5/8" gauge into a compatible 2.67" (68mm) opening using the included mounting ring.
Connect the Temperature Sensor: Install the Speedhut temperature sensor in the designated location on your engine and connect the 2-wire harness to the gauge.
Connect the Pressure Sensor: Install the 100 psi pressure sensor in the appropriate oil system port and connect the 3-wire harness to the gauge.
Connect Power and Lighting: Use the 3 ft power & lighting harness to connect the gauge to power and ground. This also activates the LED backlighting.
Program the Warning Light (Optional): Set the desired alert thresholds for oil temperature and/or oil pressure using the gauge's interface.
BENEFITS OF USING THE SPEEDHUT 2-5/8" DUAL METRIC OIL TEMP / OIL BAR GAUGE (R25-DG11-REV):
Provides real-time, accurate monitoring of oil temperature and pressure.
Helps detect engine issues early and prevent major damage.
Metric units offer precise readings for enhanced diagnostics.
Programmable warning light alerts you to abnormal conditions immediately.
All-in-one kit simplifies installation and reduces setup time.
Enhanced readability through LED backlighting ensures safety and convenience.
Displays both oil temperature and pressure in metric format simultaneously.
Programmable LED alert for over-temp or low-pressure situations.
Compact 2-5/8 inch size fits standard openings with ease.
LED-lit display ensures visibility in dark environments.
Includes all required sensors and wiring for a complete setup.
Quick and easy installation with provided harnesses and mounting ring.
Engineered for dependable performance and accurate readings.
Product identification
- Brand: Speedhut
- Model / MPN: R25-DG11-REV
