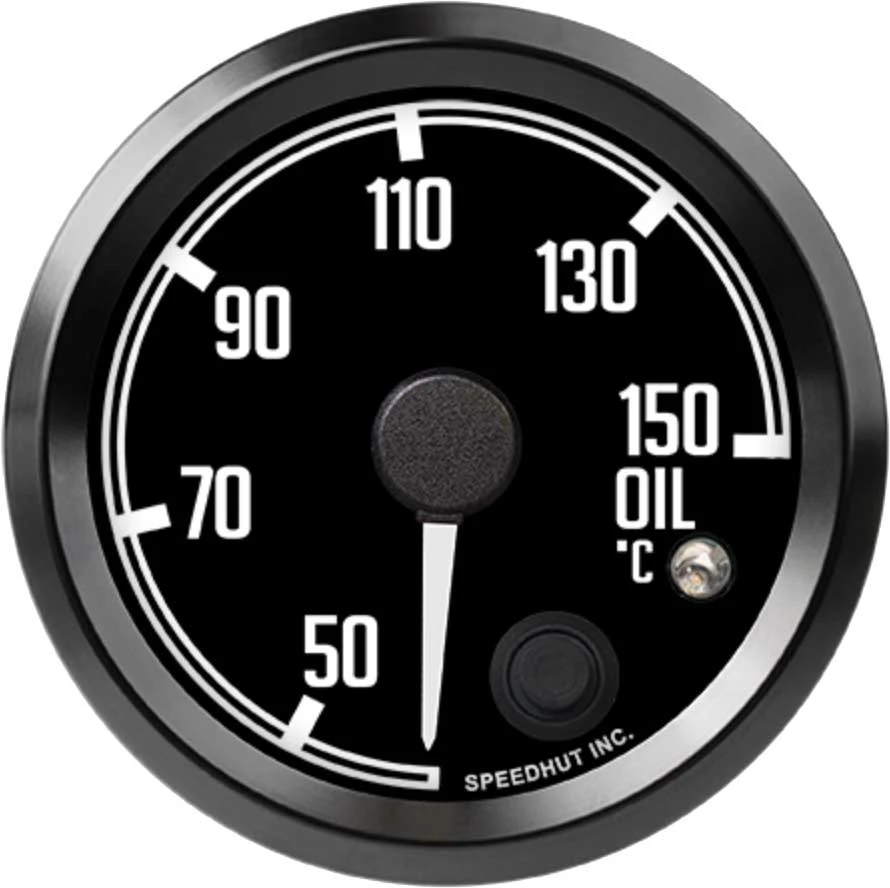

Speedhut 2-5/8" 40-150C Oil Temp Gauge w/ Warning (R25-OT3-DATZ)
The Speedhut 2-5/8" 40-150C Oil Temp Gauge w/ Warning (R25-OT3-DATZ) is an essential instrument for any vehicle enthusiast focused on maintaining peak engine performance. This 2 5/8 inch (66.675 mm) gauge provides precise, real-time oil temperature readings, allowing you to closely monitor a critical aspect of your engine's health. By keeping a watchful eye on temperature fluctuations, you can proactively address potential issues before they escalate, ultimately contributing to the longevity and optimal operation of your vehicle. Engineered for reliability and ease of use, this gauge is a valuable tool for understanding your engine's thermal behavior. The inclusion of a customizable warning light elevates its functionality, providing an advanced alert system that can be tailored to your specific needs and thresholds. This feature offers an extra layer of insight into your engine's condition, making it a crucial component for effective vehicle maintenance.
KEY FEATURES AND BENEFITS:
Accurate Readings: Displays oil temperatures between 40-150°C in real-time for better decision-making during operation.
Warning Light Functionality: Customizable light alerts you to high-temperature conditions based on your settings.
Durable Build: Designed to withstand harsh driving environments and conditions.
Easy Installation: Includes all necessary components for straightforward integration into your vehicle.
Proactive Maintenance Aid: Helps you catch potential problems early, avoiding costly repairs.
Gauge Type: Temperature Gauge
Temperature Sender Type: 2-Wire Temp Sender (Performance)
Range: 40-150 °C
Size: 2 5/8 inch (66.675 mm)
Hole Size: 2.67 inches (68 mm)
Standard or Metric: Metric
Warning Light: Yes
3 ft Power & Lighting Harness (for LED Lit Gauges and Clocks)
Speedhut Temperature Sensor
Temperature Gauge Wiring Harness (2-Wire Cable)
Mount the Gauge: Securely install the 2 5/8 inch Speedhut Temperature Gauge into a 2.67-inch (68 mm) diameter opening in your desired location on your vehicle's dashboard or instrument panel.
Connect the Power and Lighting Harness: Attach the provided 3 ft Power & Lighting Harness to the gauge. This harness will supply power for the gauge's operation and illumination.
Install the Temperature Sensor: Mount the included Speedhut Temperature Sensor in a suitable location on your engine where it can accurately measure the oil temperature. Ensure it is properly threaded and sealed.
Connect the Sensor Wiring: Connect the 2-Wire Cable from the Temperature Gauge Wiring Harness to the Temperature Sensor. Ensure correct polarity if indicated in the sensor's instructions.
Connect to Power: Connect the power wire from the Power & Lighting Harness to a suitable 12V power source in your vehicle (typically an ignition-switched source). Connect the ground wire to a reliable ground point on the vehicle's chassis.
Set the Warning Light (Optional): If desired, follow the gauge's specific instructions to set the threshold temperature at which the warning light will activate.
Verify Operation: Once all connections are made, start your vehicle and observe the gauge to ensure it is displaying the oil temperature correctly. Check that the warning light functions as expected.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 40-150C OIL TEMP GAUGE W/ WARNING (R25-OT3-DATZ):
Enhanced Engine Protection: Allows real-time monitoring of oil temperature, enabling early detection of overheating.
Customizable Alerts: Warning light offers added safety by notifying users of out-of-range temperatures.
Optimal Engine Performance: Ensures your engine operates within its ideal temperature range for efficiency and longevity.
Clean Installation: Designed to integrate easily into most standard gauge mounting locations.
Reliable and Accurate: High-performance components ensure dependable operation under a variety of conditions.
Provides precise oil temperature readings from 40 to 150 degrees Celsius.
Employs a performance-oriented 2-wire temperature sender for accurate data.
Features a bright, integrated warning light that can be configured by the user.
Designed with a standard 2 5/8 inch (66.675 mm) diameter for common gauge mounting locations.
Utilizes metric units (°C) for temperature display.
Includes a dedicated 3 ft power and lighting harness for easy electrical connection.
Comes with the necessary Speedhut temperature sensor for immediate use.
Packaged with a 2-wire temperature gauge wiring harness for connecting the sensor to the gauge.
Product identification
- Brand: Speedhut
- Model / MPN: R25-OT3-DATZ
