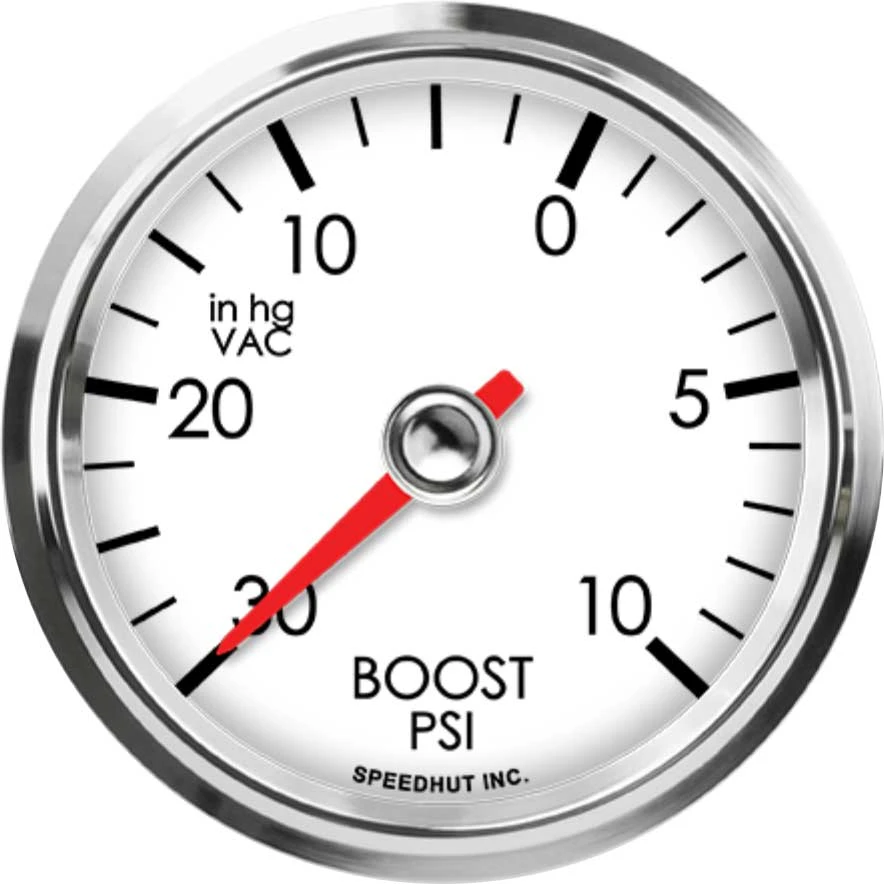

Speedhut 2-5/8" 30inhg-0-10 PSI Boost/Vac Gauge (L25-BV1-LEG)
The Speedhut 2-5/8" 30inhg-0-10 PSI Boost/Vac Gauge (L25-BV1-LEG) is an essential instrument for any vehicle with a turbocharged or supercharged engine. This gauge provides accurate and real-time readings of both intake manifold vacuum and boost pressure, allowing you to monitor your engine's performance and identify potential issues. Its classic design ensures it integrates seamlessly with a variety of interior styles.
KEY FEATURES AND BENEFITS:
Wide Measurement Range: 30 inches of mercury (inHg) for vacuum and 0 to 10 pounds per square inch (PSI) for boost.
Precision Readings: Utilizes a high-quality 3-wire military-grade transducer for dependable measurements.
LED Illumination: Designed to be LED-lit for enhanced visibility in all lighting conditions.
Complete Kit: Includes all necessary components for installation.
Classic Styling: A timeless look that suits a wide range of vehicle interiors.
Gauge Type: Boost/Vacuum Gauge
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Range: 30 inHg – 0 PSI (Vacuum), 0 – 10 PSI (Boost)
Size: 2 5/8 inch (66.7 mm)
Mounting Hole Size: 2.68 inches (68 mm)
Units: Standard (inHg and PSI)
Pressure Gauge Wiring Harness (3-Wire Cable)
3 ft Power & Lighting Harness
Boost/Vac Hose Kit
Pressure Sensor (30 PSI)
Mount the Gauge: Locate a suitable 2.68-inch (68 mm) diameter hole in your dashboard or instrument panel and secure the gauge.
Install the Pressure Sensor: Mount the sensor on the intake manifold away from excessive heat.
Connect the Vacuum/Boost Hose: Attach the included hose between the intake manifold and the gauge’s back port. Ensure all connections are tight.
Connect the Wiring Harnesses: Attach the 3-wire cable to the sensor and then to the back of the gauge.
Connect the Power and Lighting Harness: Wire to a 12V power and ground source and plug into the back of the gauge.
Test the Gauge: Start the vehicle and confirm the readings reflect engine conditions accurately.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 30INHG-0-10 PSI BOOST/VAC GAUGE (L25-BV1-LEG):
Allows for accurate monitoring of intake manifold vacuum and boost pressure in real-time.
Helps detect vacuum leaks or overboosting conditions early to avoid engine damage.
Enables drivers to optimize their driving style for performance and fuel efficiency.
Provides confidence through highly accurate readings from a military-grade transducer.
LED illumination ensures readability in all lighting conditions.
Simultaneously displays vacuum and boost pressure readings in standard units.
Incorporates a rugged 3-wire military-grade transducer for accuracy.
Measures from 30 inHg (vacuum) to 10 PSI (boost).
Classic 2-5/8 inch diameter fits most aftermarket gauge pods.
Designed for easy installation using a 2.68-inch mounting hole.
Equipped with LED backlighting for visibility during day and night.
Comes with all necessary wiring and tubing for a complete setup.
Includes a calibrated 30 PSI pressure sensor for precise measurements.
Product identification
- Brand: Speedhut
- Model / MPN: L25-BV1-LEG
