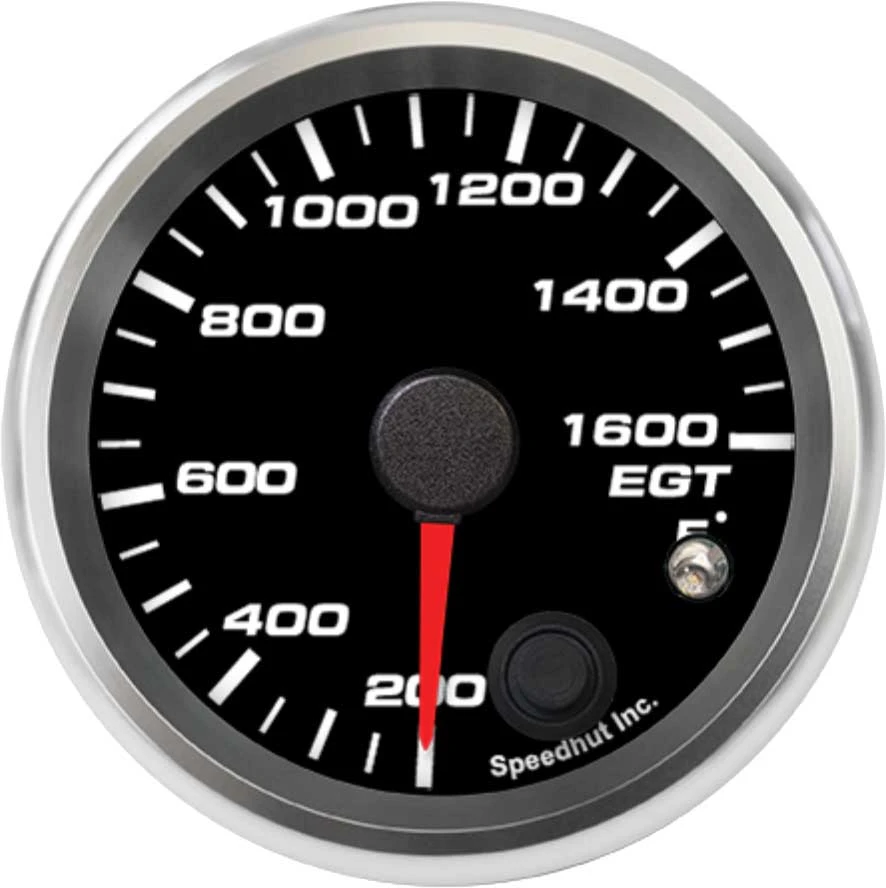

Speedhut 2-5/8" 200-1600F EGT Temp Gauge w/ Warning (R25-ET1-REV)
The Speedhut 2-5/8" 200-1600F EGT Temp Gauge w/ Warning (R25-ET1-REV) is a vital tool for tracking exhaust gas temperature in high-performance or heavily loaded vehicles. Accurate monitoring of EGT helps prevent potential engine damage from excessive heat, especially in turbocharged or modified engines. With a broad range of 200°F to 1600°F, a clear LED-lit display, and a customizable warning light, this gauge ensures you receive timely alerts to maintain safe operating conditions. The included high-quality Type K probe and wiring harnesses allow for easy installation and reliable operation, making this gauge an essential upgrade for enthusiasts and professionals alike.
KEY FEATURES AND BENEFITS:
Wide temperature range: Measures EGT from 200°F to 1600°F for comprehensive monitoring.
Customizable warning light: Alerts you instantly when EGT exceeds your preset limit.
Standard 2-5/8" size: Compatible with many aftermarket gauge pods and dash setups.
High-quality probe: Includes a 9-foot Ultra Low Type K EGT probe with braided steel line for durability and accuracy.
LED backlighting: Ensures excellent visibility in low-light driving conditions.
Complete installation kit: Ships with mounting ring and 3-foot power and lighting harness for hassle-free installation.
Gauge Type: Temperature Gauge
Gauge Subtype: Exhaust Gas Temperature Gauge
Range: 200-1600 °F
Units: Standard (Fahrenheit)
Size: 2 5/8 inch
Hole Size: 2.67 inches (68mm)
Warning Light: Yes
Gauge Mounting Ring: Included
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
EGT/Ultra Low Type K Probe 9' long, Braided steel line
Mount the Gauge: Drill a 2.67-inch (68mm) hole in the desired location on the dashboard or panel and install the gauge using the included mounting ring.
Install the EGT Probe: Select a suitable location on the exhaust manifold, preferably pre-turbo, then drill and tap a hole to insert the probe securely.
Connect the Probe: Route the 9-foot braided steel probe wire to the back of the gauge and connect it to the designated terminals.
Connect the Power and Lighting Harness: Use the included 3-foot harness to connect the gauge to your vehicle’s power, ground, and lighting circuit.
Set the Warning Light: Follow the included instructions to configure the EGT threshold for the warning alert.
Monitor Readings: Start the vehicle and observe real-time exhaust gas temperatures. Watch for the warning light if temperatures approach unsafe levels.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 200-1600F EGT TEMP GAUGE W/ WARNING (R25-ET1-REV):
Proactive engine protection: Identify overheating or lean fuel conditions before damage occurs.
Immediate alerts: Integrated warning light ensures timely reaction to critical temperature spikes.
Reliable sensor data: Durable Type K probe provides fast and accurate temperature readings.
Enhanced longevity: By monitoring EGT, users can prevent engine wear and extend component life.
Accurate exhaust temperature monitoring from 200°F to 1600°F.
Integrated warning light with user-defined threshold settings.
Standard 2-5/8" diameter fits most aftermarket gauge setups.
Requires a 2.67" (68mm) hole for secure mounting.
Durable 9-ft braided steel Ultra Low Type K probe included.
3-ft power and lighting harness simplifies wiring process.
Included mounting ring ensures clean, professional installation.
Product identification
- Brand: Speedhut
- Model / MPN: R25-ET1-REV
