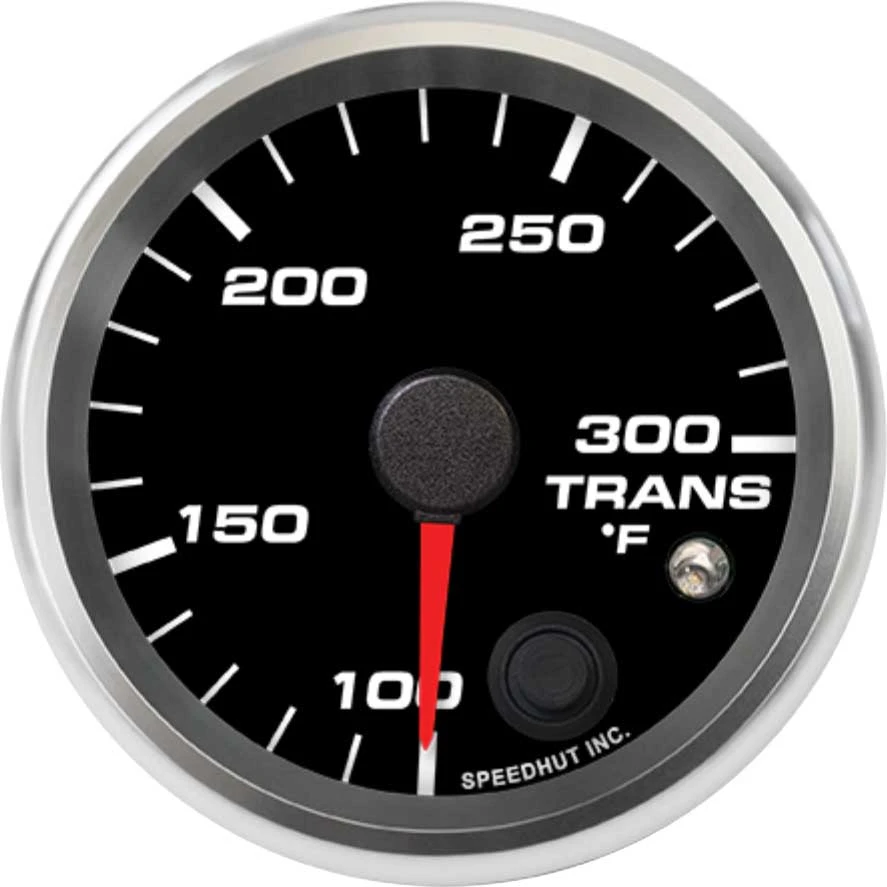

Speedhut 2-5/8" 100-300F Trans Temp Gauge w/ Warning (R25-TT1-REV)
KEY FEATURES AND BENEFITS:
Clearly displays: Transmission fluid temperature within a 100-300°F range.
Warning light: User-settable to indicate high-temperature conditions.
High-performance sensor: Includes a 2-wire temperature sender for accurate and responsive readings.
Standard size: Features a 2-5/8 inch size for versatile mounting options.
Complete wiring: Comes with necessary harnesses for power, lighting (for LED models), and sensor connection.
Transmission protection: Helps extend transmission life by allowing temperature monitoring and management.
Issue detection: Provides early detection of heat-related transmission problems.
Ideal for heavy-duty use: Essential for towing and high-stress applications.
Gauge Type: Temperature Gauge
Temperature Sender Type: 2-Wire Temp Sender (Performance)
Range: 100-300 °F
Size: 2 5/8 inch
Hole Size: 2.67 inches (68mm)
Standard or Metric: Standard
Warning Light: Yes
Speedhut Temperature Sensor
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Temperature Gauge Wiring Harness (2-Wire Cable)
Mount the Gauge: Choose a suitable location in your vehicle and create a 2.67-inch (68mm) diameter hole. Secure the gauge in the opening.
Install the Temperature Sender: Locate an appropriate port on your transmission to install the 2-wire temperature sender. Ensure it is securely threaded and will accurately read the fluid temperature.
Connect the Wiring Harnesses:
Connect the 2-wire cable from the temperature sender to the corresponding terminals on the back of the gauge.
Connect the 3 ft power and lighting harness to the power and ground sources in your vehicle, as well as to the gauge for operation and illumination.
Set the Warning Light (if applicable): Follow the gauge's instructions to set the desired temperature threshold at which the warning light will activate.
Verify Operation: Once all connections are made, start your vehicle and observe the gauge reading. Ensure the temperature is within a normal range and that the warning light functions correctly when the temperature exceeds the set threshold (you may need to simulate a high-temperature condition for testing).
BENEFITS OF USING THE SPEEDHUT 2-5/8" 100-300F TRANS TEMP GAUGE W/ WARNING (R25-TT1-REV):
Maintains the health and longevity of your vehicle's automatic transmission by monitoring fluid temperature continuously.
Enables early detection of transmission stress caused by excessive load, low fluid, or internal faults.
The integrated warning light provides an immediate alert, allowing timely corrective action.
Helps avoid costly transmission repairs or failures by preventing overheating.
Extends transmission lifespan and supports smooth operation under various driving conditions.
Real-time Temperature Monitoring: Provides a continuous and accurate display of your transmission fluid temperature.
High-Performance Sensor: The included 2-wire sender is designed for quick and precise temperature readings.
Visual Overheat Alert: The integrated warning light immediately signals when a critical temperature is reached.
Standardized Fitment: The 2-5/8 inch size ensures compatibility with many aftermarket gauge pods and mounting solutions.
Complete Wiring Included: Comes with all necessary harnesses for power, lighting, and sensor connection, simplifying the installation process.
Durable Construction: Built with quality materials to withstand the demanding environment of a vehicle's interior.
Product identification
- Brand: Speedhut
- Model / MPN: R25-TT1-REV
