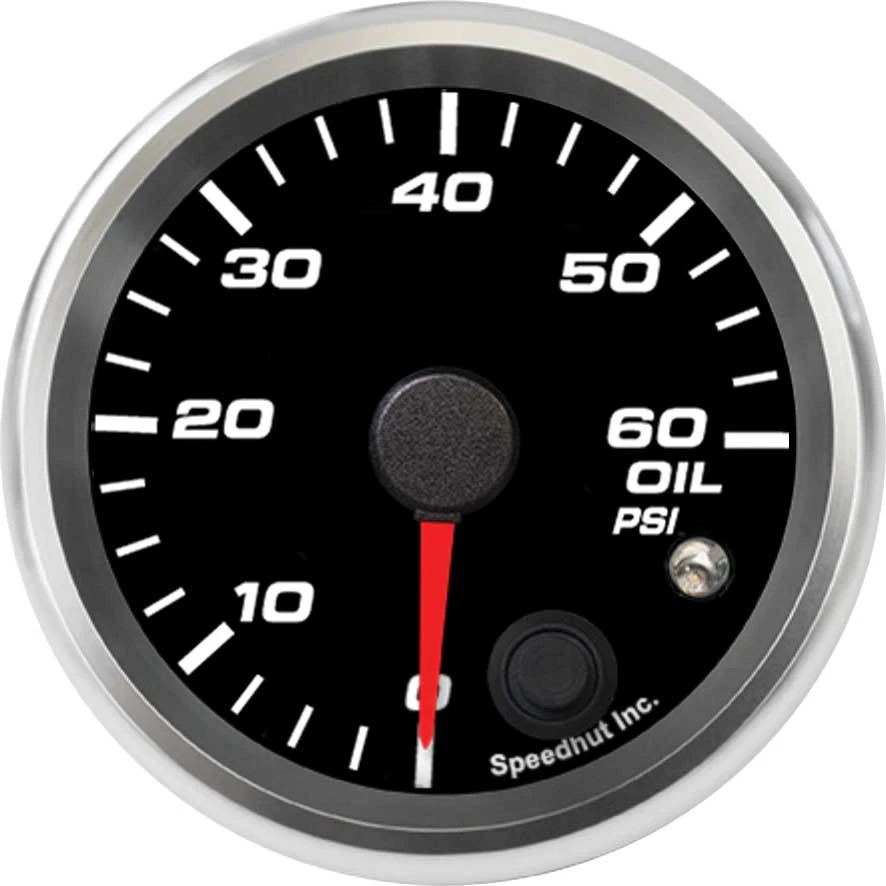

Speedhut R25-OP2-REV 60PSI Oil Gauge with Warning
Speedhut R25-OP2-REV is a larger warning-equipped oil pressure gauge with a 0–60PSI scale. Choose that scale against the application's pressure requirements; it is a distinct display range from the 100PSI sender listed in the package.
Specifications and included details
- 0–60PSI display and built-in warning light.
- 2-5/8-inch nominal gauge; listed 2.67-inch (68mm) opening.
- 100PSI three-wire pressure sensor included.
- Sensor cable and 3-foot power/lighting harness listed.
Before ordering
Check expected pressure across operating conditions before choosing a 60PSI display. Verify the warning setup under the exact model's instructions; no numeric warning threshold is established here. Confirm sensor-port and dash fit.
Product questions and answers
Is the displayed range 100PSI?
No. The gauge displays0–60PSI;100PSI refers to the listed sensor.
Is a specific warning pressure provided?
No numeric threshold is established in these details. Consult the model's configuration instructions.
Can the warning diagnose a failing oil pump?
No. It alerts to pressure conditions; determining the cause needs separate diagnosis.
