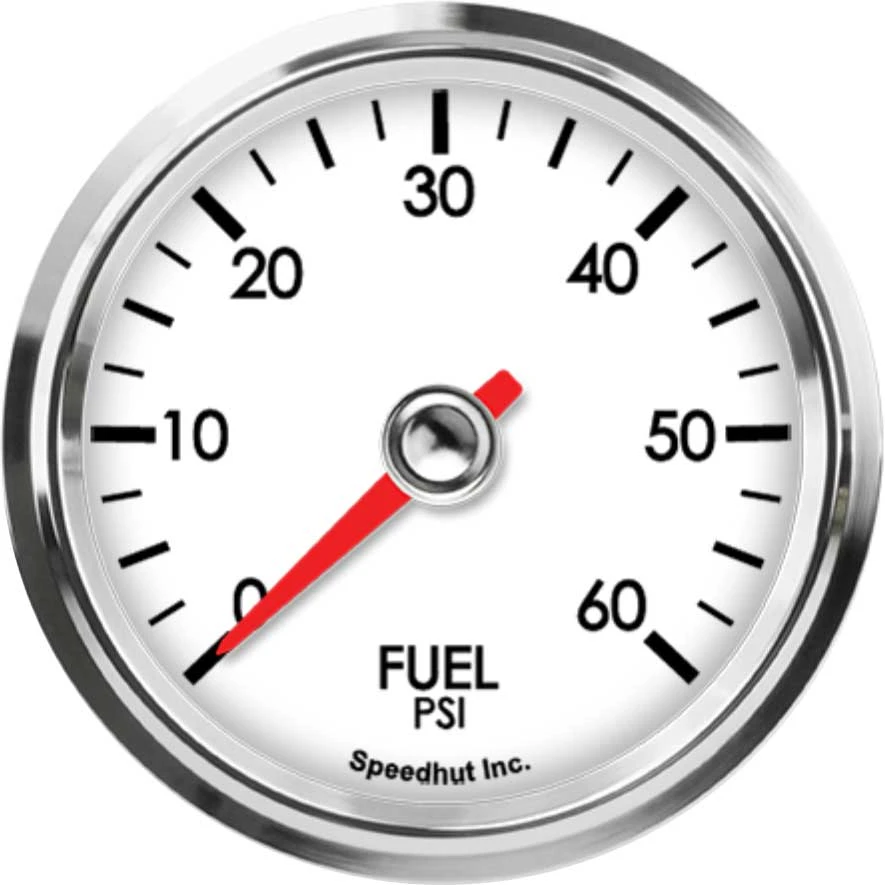

Speedhut L25-FP3-LEG Fuel Gauge, 0–60PSI 2-5/8in
Speedhut L25-FP3-LEG is the larger Legacy fuel-pressure gauge with a 0–60PSI face. Its listed 100PSI sensor does not extend the readable display beyond60PSI, an important distinction when comparing sender ratings across gauge models.
Specifications and included details
- Fuel-pressure dial: 0–60PSI.
- Nominal gauge: 2-5/8 inches; opening: 2.67 inches.
- 100PSI three-wire sensor listed.
- Signal harness and 3-foot power/lighting harness; LED backlighting described.
Before ordering
Compare normal and maximum fuel pressure with the instrument documentation. Verify sender fuel suitability, connection and rear clearance. Fittings/adapters are described as not included; do not assume the sensor screws directly into every fuel rail.
Product questions and answers
Can this show100PSI because that sender is listed?
No. The face ends at 60PSI;100PSI identifies the supplied sensor specification.
Are fuel fittings included?
The installation details state appropriate fittings or adapters are not included. Confirm your port and required connection hardware.
Does 2-5/8 inches specify the cutout?
It is the nominal gauge size. The separately listed mounting opening is 2.67 inches.
