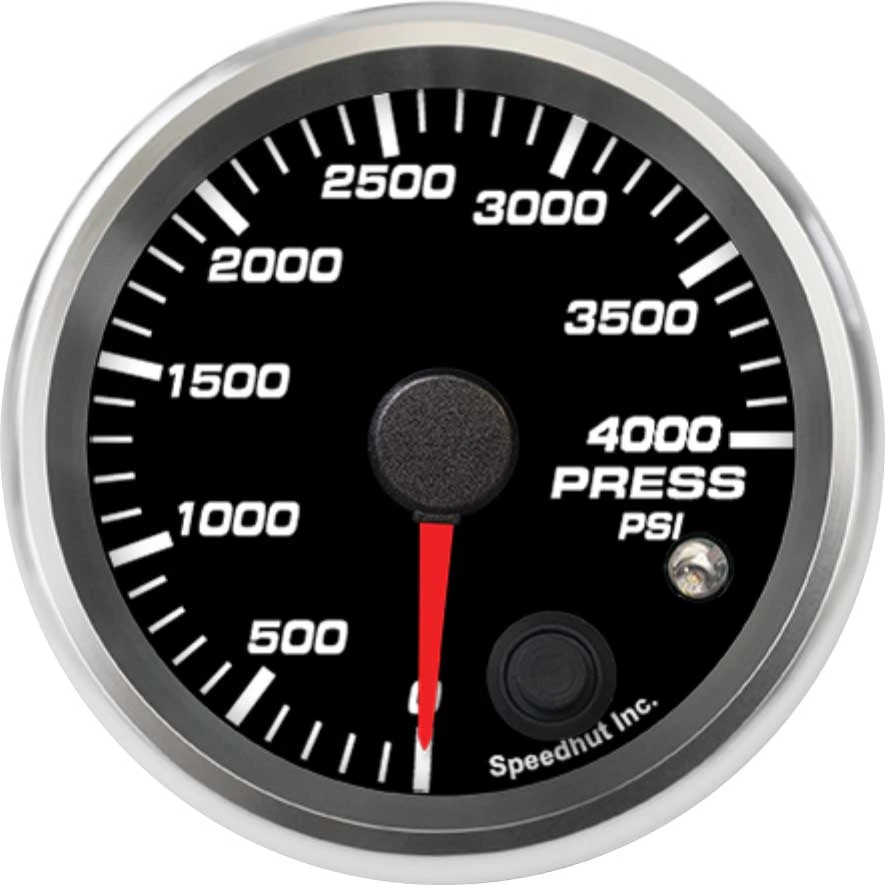

Speedhut 2-5/8" 0-4000 PSI CNG Pressure Gauge w/ Warning (R25-CP1-REV)
The Speedhut 2-5/8" 0-4000 PSI CNG Pressure Gauge w/ Warning (R25-CP1-REV) is a reliable instrument designed for accurate monitoring of compressed natural gas pressure in various applications. This gauge combines precise measurement with a built-in warning system to enhance safety and provide crucial real-time pressure information. Its robust construction and included components make it a practical solution for anyone needing to keep a close watch on their CNG system's performance.
KEY FEATURES AND BENEFITS:
Pressure Range: Clearly displays CNG pressure from 0 to 4000 PSI for accurate real-time monitoring.
Integrated Warning Light: Illuminates when pressure reaches critical levels for enhanced safety.
High-Performance Transducer: Utilizes a 3-wire military-grade sensor for dependable readings.
Standard Gauge Size: Designed with a 2-5/8 inch (68mm) diameter for compatibility with common mounts.
Complete Installation Kit: Includes all necessary wiring harnesses, a 5000 PSI sensor, and adapter for simplified setup.
Gauge Type: Pressure Gauge
Gauge Subtype: CNG Pressure Gauge
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Range: 0–4000 PSI
Size: 2 5/8 inch
Hole Size: 2.68" (68mm)
Warning Light: Yes
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Pressure Gauge Wiring Harness (3-Wire Cable)
High Pressure Sensor – 5000 PSI
Adapter, 1/4 inch NPT Male to 3/8-24 ORB Female
Mount the Gauge: Secure the 2-5/8" gauge in a 2.68" (68mm) diameter opening in your desired location.
Connect the Power: Use the provided 3 ft Power & Lighting Harness to connect the gauge’s power and lighting to your vehicle or system’s electrical supply.
Install the Sensor: Mount the included high-pressure sensor (5000 PSI) to the CNG system using the appropriate port. Use the provided adapter if necessary.
Wire the Sensor to the Gauge: Connect the 3-wire cable from the pressure gauge wiring harness to the terminals on the transducer. Follow wiring diagrams if available.
Verify Connections: Double-check all power and sensor wire connections to ensure secure and proper installation.
System Operation: Power on your system. The gauge will display the current CNG pressure.
Monitor the Warning Light: Observe the warning light. If pressure exceeds the preset critical level, the light will activate to alert the user.
BENEFITS OF USING THE SPEEDHUT 2-5/8" 0-4000 PSI CNG PRESSURE GAUGE W/ WARNING (R25-CP1-REV):
Allows for continuous and precise monitoring of CNG system pressure.
Improves operational safety through an integrated pressure warning alert.
Provides dependable long-term performance using a military-grade sensor.
Includes all essential components for a simplified and efficient installation process.
Clear Visual Display: Provides easy-to-read pressure information up to 4000 PSI.
High-Accuracy Measurement: Utilizes a 3-wire military-grade transducer for precise readings.
Broad Compatibility: Designed specifically for monitoring CNG pressure in various applications.
Complete Wiring Solution: Includes all necessary power and sensor wiring harnesses.
High-Capacity Sensor Included: Comes with a 5000 PSI sensor for reliable pressure detection.
Adaptable Connection: Supplied with a 1/4 inch NPT to 3/8-24 ORB adapter for flexible installation.
Standard Sizing: The 2-5/8" size fits common gauge mounting locations.
Product identification
- Brand: Speedhut
- Model / MPN: R25-CP1-REV
