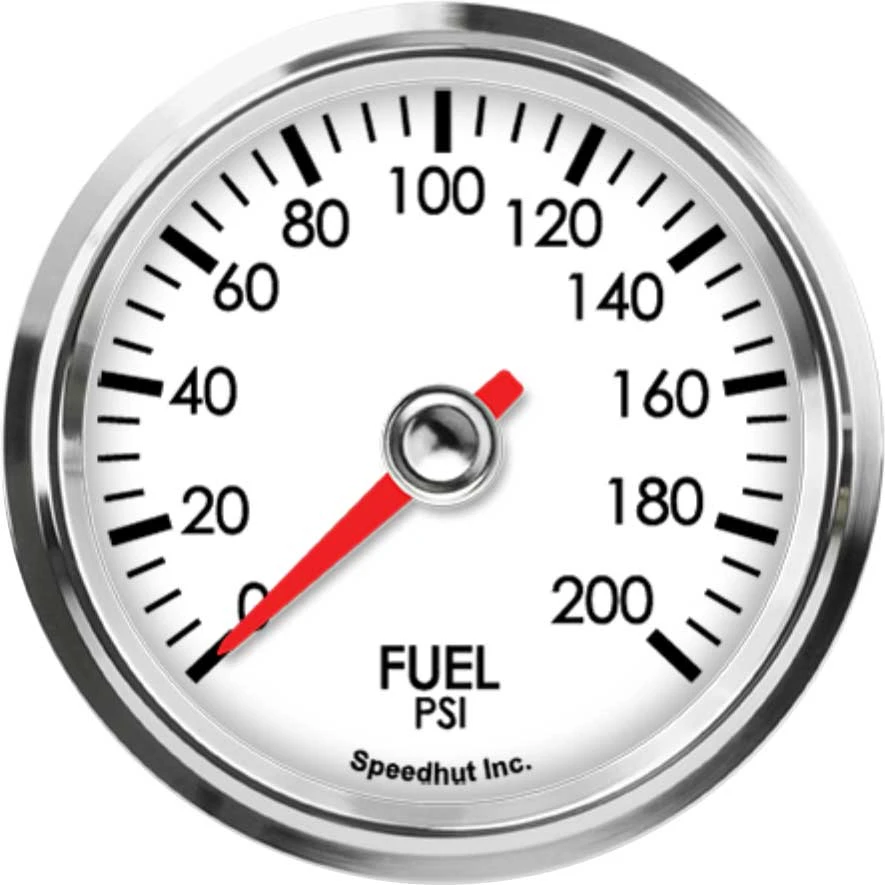

Speedhut L25-FP5-LEG 2-5/8in Fuel Gauge, 0–200 PSI
Speedhut L25-FP5-LEG uses a 0–200PSI fuel-pressure dial in the larger Legacy format. Keep the displayed range separate from the listed 300PSI sensor when comparing it with other gauges.
Specifications and included details
- Fuel-pressure dial: 0–200PSI.
- 2-5/8-inch nominal gauge with listed 2.67-inch opening.
- 300PSI three-wire pressure sensor and signal harness listed.
- 3-foot power/lighting harness; spin-lock mounting ring described.
Before ordering
Choose a scale appropriate for your operating pressure and verify sender port, fuel compatibility and electrical connections. Confirm depth and mounting clearance before cutting a panel. The sender rating does not extend the dial's readable range.
Product questions and answers
Why does the package list a 300PSI sensor?
That is the listed sensor specification. The gauge face still ends at 200PSI; use the intended matched sensor according to the model instructions.
Is this gauge marked in bar?
No. This model's pictured and listed scale is PSI. The metric L25-FP versions are separate products.
How does it mount?
The description specifies a spin-lock ring and a 2.67-inch opening. Verify rear clearance and the supplied mounting hardware before installation.
