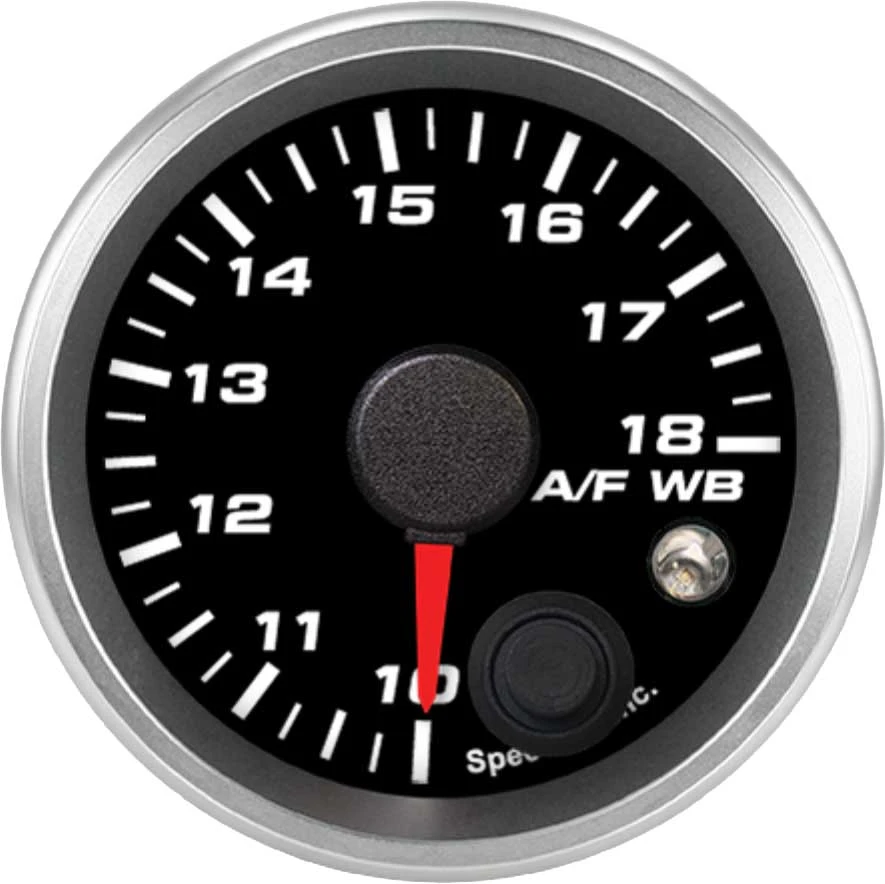

Speedhut 2-1/16" Innovate Air/Fuel 10-18 Gauge w/Warning (R2-WB6-REV)
Speedhut 2-1/16" Innovate Air/Fuel 10-18 Gauge w/Warning (R2-WB6-REV) is an essential instrument for monitoring your engine's air-fuel ratio (AFR), providing valuable insights into its performance and efficiency. Designed for seamless integration with Innovate LC-1 and LC-2 wideband controllers, this gauge offers accurate readings within the 10 to 18 AFR range. Its standard 2 1/16 inch (52mm) size ensures easy installation in most gauge pods using the included spin-lock ring. The integrated programmable warning light alerts you to potentially lean or rich conditions, allowing for timely adjustments to optimize engine health and prevent damage. This gauge is built with precision in mind, utilizing an internal microprocessor and a high-torque stepper motor for reliable readings, even in demanding driving situations.
KEY FEATURES AND BENEFITS:
Provides accurate AFR readings within the 10 to 18 range.
Compatible with Innovate LC-1 and LC-2 wideband controllers.
Standard 2 1/16 inch (52mm) size fits most gauge pods.
Includes spin-lock ring for secure mounting.
Programmable warning light for lean/rich conditions.
Precision performance using microprocessor and stepper motor.
Gauge Type: Air/Fuel Wideband Gauge
Gauge Subtype: Air/Fuel Wideband Gauge
Controller Compatibility: Innovate (LC-1 or LC-2)
Range: 10-18 AFR
Size: 2 1/16 inch (52mm)
Standard or Metric: Standard
Hole Size: 2.062 inches (52mm)
Warning Light: Yes
Input Voltage: 0.88 volts to 3.54 volts
8 ft Tachometer Harness – for LED Lit Gauges (1 Wire 2 Pin Connector)
AF/WB Throttle Position Harness (LED Lite Gauges)
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Connect the gauge: Attach to a compatible Innovate LC-1 or LC-2 wideband controller using proper wiring diagrams.
Mount the gauge: Install it into a 2 1/16 inch (52mm) opening with the included spin-lock ring.
Connect power and lighting: Use the provided harness to power and illuminate the gauge.
Use the tachometer harness: Connect if applicable for tachometer signal input (for LED-lit gauges).
Use the throttle position harness: Connect if applicable for throttle signal input.
Program warning light: Set lean/rich AFR thresholds to trigger the warning indicator.
Monitor AFR: Read current AFR values from the connected Innovate controller.
Watch for alerts: The warning light will notify you of out-of-range AFR conditions.
BENEFITS OF USING THE SPEEDHUT 2-1/16" INNOVATE AIR/FUEL 10-18 GAUGE W/WARNING (R2-WB6-REV):
Improve Fuel Efficiency: Maintain economical fuel consumption.
Prevent Engine Damage: Identify lean or rich conditions that can cause issues.
Facilitate Accurate Tuning: Enables precise tuning and modifications.
Early Problem Detection: Spot potential fuel or air intake issues early.
Enhanced Monitoring: Warning light provides immediate visual alerts.
Seamless Integration: Works with Innovate LC-1 and LC-2 for accurate readings.
Reads air-fuel ratio precisely between 10 to 18 AFR.
Built for Innovate LC-1 and LC-2 controller systems.
Compact 2 1/16 inch (52mm) size fits common gauge mounts.
Warning light alerts for lean/rich conditions.
Accepts 0.88V to 3.54V input from Innovate controller.
Includes 8 ft tachometer harness for LED-lit gauges.
Ships with AF/WB throttle position harness for LED-lit models.
Power and lighting harness (3 ft) included for LED gauges and clocks.
Installs easily using the spin-lock mounting ring.
Product identification
- Brand: Speedhut
- Model / MPN: R2-WB6-REV
