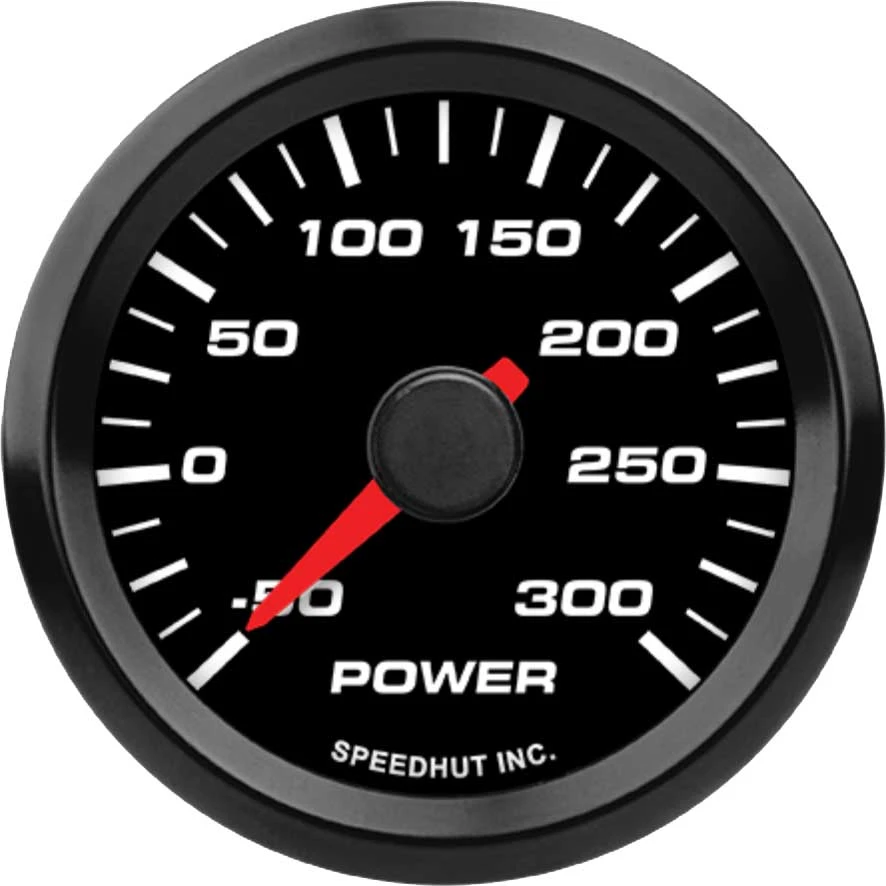

Speedhut 2-1/16" AEM -50 to 300 EV Power Gauge (FAE2-PW1-EV)
The Speedhut 2-1/16" AEM -50 to 300 EV Power Gauge (FAE2-PW1-EV) is a specialized instrument engineered for electric vehicles equipped with the AEM EV CAN-bus system. This gauge provides precise, real-time monitoring of your EV's power consumption, allowing you to gain valuable insights into its operational efficiency. Designed for seamless integration with your vehicle's existing communication network, this gauge operates at a 500K baud rate, delivering accurate readings to help you optimize your EV's performance and ensure your power system functions at its best. Its standard 2-1/16 inch size ensures compatibility with a wide range of gauge pods and dashboard configurations.
KEY FEATURES AND BENEFITS:
Real-time Power Monitoring: Provides immediate and accurate readings of your electric vehicle's power usage, ranging from -50 to 300 units.
AEM EV CAN-Bus Integration: Specifically designed to work with electric vehicles utilizing the AEM EV CAN-bus system, ensuring reliable data acquisition.
Efficient Communication: Operates on the CAN-bus protocol at a 500K baud rate for fast and efficient data transfer.
Standard Size: The 2-1/16 inch (52mm) diameter fits into common gauge mounting solutions.
Optimized Performance: Enables you to fine-tune power consumption, contributing to the overall efficiency and optimal operation of your EV's power system.
Complete Installation Kit: Ships with all the necessary harnesses for a straightforward connection to your EV's system.
Gauge Type: Power
Signal Type: CAN-Bus (500K baud rate)
Range: -50 to 300
Size: 2 1/16 inch (52mm)
Hole Size: 2.10 inches (54mm)
3 ft Power & Lighting Harness
EV CAN Jumper Harness
Identify the CAN-Bus Connection: Locate the CAN-bus wiring within your electric vehicle's AEM EV system. Consult your vehicle's wiring diagram if needed.
Connect the EV CAN Harness: Plug the provided EV CAN Harness into the appropriate CAN-bus connector in your vehicle.
Connect the Gauge: Connect the other end of the EV CAN Harness to the designated CAN-bus input on the Speedhut EV Power Gauge.
Connect Power and Lighting: Use the included 3 ft Power & Lighting Harness to connect the gauge to a suitable power source and lighting circuit in your vehicle. Ensure correct polarity.
Utilize the Jumper Harness (If Needed): The EV CAN Jumper Harness can be used to extend or create a connection point within your CAN-bus network if required for optimal gauge placement or integration.
Mount the Gauge: Install the 2-1/16 inch gauge into your desired location using a compatible gauge pod or by creating a 2.10-inch (54mm) diameter hole. Secure the gauge properly.
Verify Functionality: Once all connections are made, power on your electric vehicle and observe the Speedhut EV Power Gauge to ensure it is receiving and displaying power readings accurately.
BENEFITS OF USING THE SPEEDHUT 2-1/16" AEM -50 TO 300 EV POWER GAUGE (FAE2-PW1-EV):
Gain real-time insights into your EV’s power consumption for improved efficiency.
Monitor performance patterns to help extend driving range and optimize vehicle behavior.
Simplified installation using CAN-bus integration with AEM systems.
Comes with necessary harnesses for plug-and-play connectivity.
Offers reliable, accurate data without the need for traditional analog sensors.
Direct CAN-Bus data acquisition from the AEM EV system.
Measurement range from -50 to 300 units to track both consumption and output.
Compact 2-1/16 inch size for flexible mounting locations.
Includes EV CAN, jumper, and power/lighting harnesses.
Instant, easy-to-read power data display.
Specifically designed for electric vehicle monitoring needs.
Durable and reliable for automotive use.
Product identification
- Brand: Speedhut
- Model / MPN: FAE2-PW1-EV
