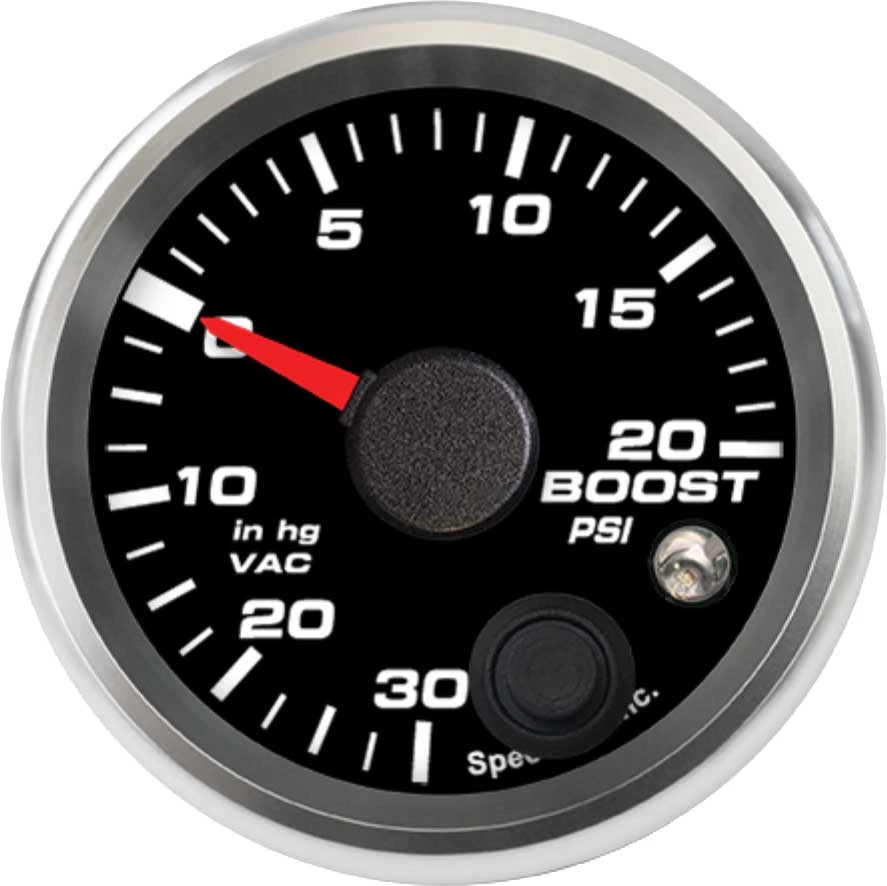

Speedhut 2-1/16" 30inhg-0-20PSI Boost/Vac Gauge w/Warning (R2-BV3-REV)
KEY FEATURES AND BENEFITS:
Accurate Monitoring: Provides precise readings of boost pressure from 0 to 20 psi and vacuum levels up to 30 inhg, crucial for understanding engine health and performance.
Early Warning System: Integrated warning light alerts you to potentially damaging pressure levels, allowing for timely intervention and preventing costly repairs.
High-Quality Sensor: Utilizes a 3-wire military-grade transducer for consistent and dependable pressure readings.
Optimal Size: The 2-1/16 inch (52mm) size ensures it fits seamlessly into most standard gauge pods and offers excellent visibility.
Complete Installation Kit: Ships with all necessary components, including power and lighting harness, pressure gauge wiring harness, a 30 psi pressure sensor, and a boost/vac hose kit, simplifying the installation process.
Clear Visuals: Designed for easy readability, allowing you to quickly and accurately interpret the displayed information.
Gauge Type: Boost/Vacuum Gauge
Pressure Sender Type: 3-Wire Military Grade Transducer (Performance)
Range: 30inhg-0-20 psi
Size: 2 1/16 inch (52mm)
Hole Size: 2.062 inches (52mm)
Standard or Metric: Standard
Warning Light: Yes
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
Pressure Gauge Wiring Harness (3-Wire Cable)
Pressure Sensor – 30 psi
Boost/Vac Hose Kit
Compatibility: Suitable for most turbocharged and supercharged vehicles with standard boost/vacuum monitoring requirements.
Mount the Gauge: Securely install the 2-1/16 inch gauge into your desired location using the provided mounting spin ring or a compatible gauge pod. Ensure it is positioned for optimal visibility.
Connect the Power and Lighting Harness: Attach the 3 ft power and lighting harness to the gauge, connecting the appropriate wires to your vehicle's power source and lighting system as per the manufacturer's instructions.
Install the Pressure Sensor: Mount the included 30 psi pressure sensor in a suitable location on your engine where boost/vacuum pressure can be accurately measured. Typically, this is on the intake manifold or a related boost/vacuum line.
Connect the Pressure Sensor Wiring Harness: Connect the 3-wire cable from the pressure sensor to the corresponding terminals on the back of the gauge. Ensure a secure and correct connection.
Install the Boost/Vac Hose: Run the provided vacuum hose from the pressure sensor to a reliable boost/vacuum source on your engine. Secure all hose connections with clamps to prevent leaks.
Test the Gauge: Once all connections are made, start your vehicle and observe the gauge readings to ensure proper functionality. Verify that the warning light operates as expected when pre-set pressure thresholds are reached (if applicable, refer to the manufacturer's specific instructions for setting the warning level).
BENEFITS OF USING THE SPEEDHUT 2-1/16" 30INHG-0-20PSI BOOST/VAC GAUGE W/WARNING (R2-BV3-REV):
Offers precise and immediate insight into the engine’s forced induction system for proactive monitoring.
Integrated warning light alerts the driver to abnormal boost or vacuum levels, helping prevent engine damage.
Military-grade transducer ensures consistent and reliable data accuracy.
Includes a complete installation kit with all necessary components for quick and easy setup.
Enhances understanding of engine performance under various driving conditions for improved efficiency and longevity.
Real-time display of intake manifold pressure.
Compact 2-1/16" (52mm) form factor for versatile mounting options.
Robust 3-wire transducer for consistent signal transmission.
Integrated visual alert for exceeding pressure limits.
All-inclusive wiring and hose assembly for immediate setup.
Designed for straightforward integration into existing vehicle systems.
Provides essential data for performance tuning and diagnostics.
Clear and easy-to-read display for quick interpretation.
Built to withstand typical automotive operating conditions.
Offers a direct and reliable measurement of critical engine parameters.
Product identification
- Brand: Speedhut
- Model / MPN: R2-BV3-REV
