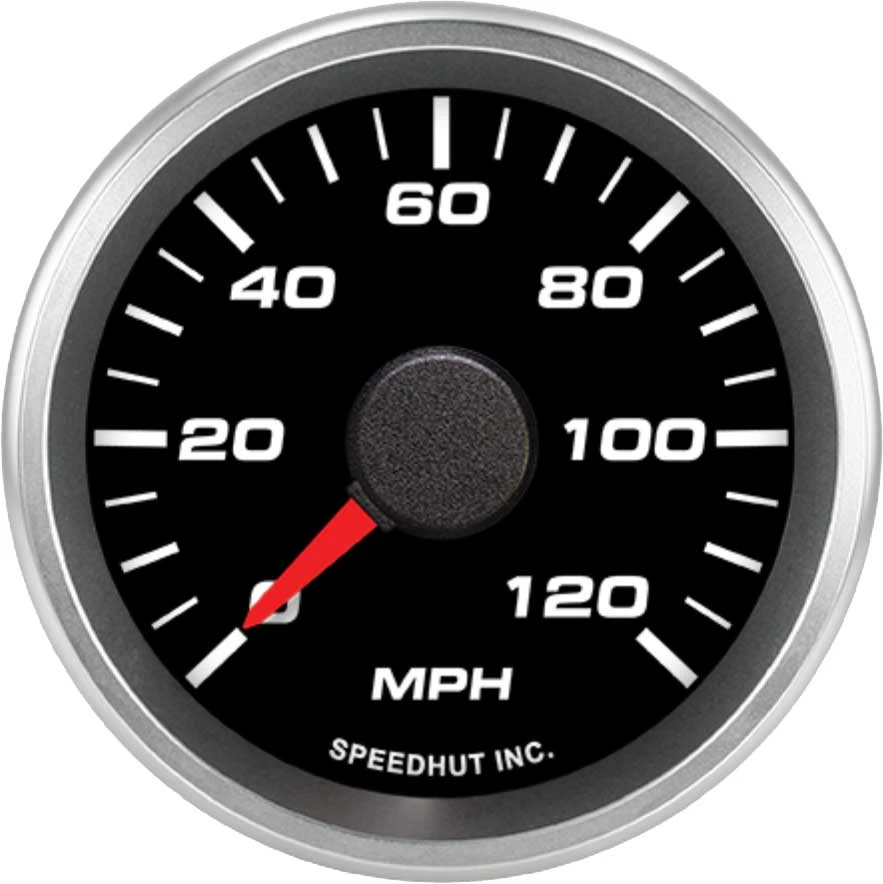

Speedhut 2-1/16" 120 mph GPS Speedometer (R2-S1-REV)
KEY FEATURES AND BENEFITS:
Highly accurate speed readings: Uses GPS technology for consistent data.
Easy installation: Requires only a 12V power connection and GPS antenna.
No calibration needed: Installs without needing adjustments for tire size or gear ratios.
Global compatibility: Operates worldwide with no subscription or service fees.
Precision microprocessor: Enhances data accuracy and stability.
High torque stepper motor: Ensures reliable needle movement in all conditions.
Slim profile: Space-saving design with spin-lock ring for secure mounting.
Billet aluminum bezel: Adds strength and an attractive appearance.
Weather-resistant design: Built to endure a wide range of environmental conditions.
Made in the USA: Manufactured to high-quality American standards.
Gauge Type: Speedometer
Speedometer Signal Type: GPS
Range: 0 – 120 MPH
Size: 2 1/16 inch
Hole Size: 2.062 inches (52mm)
Standard or Metric: Standard (MPH)
Gauge Mounting Ring: Included
3 ft Power & Lighting Harness – for LED Lit Gauges and Clocks
GPS Antenna with 9.8 ft long cable and male SMA connector
Mount the Gauge: Secure the 2-1/16" Speedometer using the included mounting ring and spin-lock mechanism in a visible location.
Connect Power: Use the red wire to connect to a 12V positive source and the black wire to ground.
Install the GPS Antenna: Place the antenna where it has a clear sky view—dashboard, roof, or similar area.
Connect the Antenna: Attach the male SMA connector to the corresponding port on the back of the gauge.
Power On: Turn on the ignition to let the gauge acquire a GPS signal.
Observe Readings: The speedometer will display your current speed with no need for calibration.
BENEFITS OF USING THE SPEEDHUT 2-1/16" 120 MPH GPS SPEEDOMETER (R2-S1-REV):
Accurate speed data: GPS-based readings eliminate traditional speed sensor inaccuracies.
Time-saving setup: No need for drivetrain or mechanical calibration.
Universal usability: Works globally without extra services or subscriptions.
Built to last: Durable construction and weather resistance ensure longevity.
Utilizes satellite-based positioning for precise velocity measurement.
Requires only a power connection and antenna placement for operation.
Operates without the necessity of user-inputted parameters like tire size.
Receives data without transmitting, ensuring user privacy.
Incorporates an internal processing unit for refined data interpretation.
Employs a motor with substantial rotational force for swift and exact needle movement.
Features a low-profile housing and a twist-to-secure mechanism for mounting.
Constructed with a single piece of machined aluminum for enhanced strength and aesthetics.
Engineered to withstand exposure to moisture and the elements.
Backed by a manufacturer's guarantee for the product's lifespan.
Assembled within the United States, adhering to high production standards.
Product identification
- Brand: Speedhut
- Model / MPN: R2-S1-REV
